Pull-out unit for EUR-pallet with 70% extension capacity, 1500 kg load capacity, W=830 D=1200

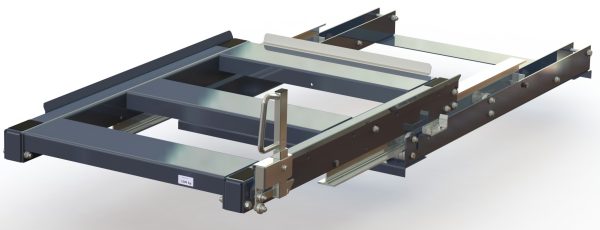

Beam-mounted pull-out unit for storing EUR-pallet. 70% pull-out extension and 1500 kg load capacity. Loading area is W=830 mm D= 1200 mm. Load from rear or front side and pick from front side. Short side handled. The unit pictured is equipped with optional anti-slip tape, rear pallet stop and an Easy Action ™ handle.

- +
Product added to cart
Article Number: 11 1501-0 Categories: ,
Arrow

Description

Arrow

A pallet pull-out unit is used when you want to load a full pallet of articles and then pick the articles manually. 70% pull-out capacity provides access to the innermost items. An important feature when placing units closely in multiple levels. Easy Action ™ handle are available in four standard heights
Beam-mounted units are mounted on the crossbeams between the pallet racking uprights. The lower frame of the pull-out unit is bolted to the beams and the upper frame slides out carrying the pallet with it.

Unit locks when pushed back into the rack.
Easy to install – simply secure to the crossbeams using 4 bolts.
Fitting double ball bearings at the front gives lower profiles and means that our pull-out units run smoothly, even with high load factors.
Beam-mounted units are compatible with almost any type of pallet racking on the market. They can be fitted to your existing beams.

Extractors are supplied with safety information on a yellow label. The text is in English or another language of your choice. All deliveries also include assembly instructions and user information.

Arrow

Product Features

Arrow
TYPE OF LOAD Manual
EUR-pallet
LOADING Manual
Front loaded
SHORT OR LONG SIDE HANDLED Manual
Short side handled
WEIGHT CAPACITY Manual
1500 kg
EXTENSION Manual
70%
LOAD WAY Manual
One-way
LOAD METHOD ManualManualManual
Forklift | Overhead crane | Pallet stacker
PICKING METHOD ManualManual
By hand | Overhead crane
Arrow

Technical Specification

Arrow
WIDTH
Manual
883 mm
LOADING WIDTH
Manual
820 mm
DEPTH
Manual
1260 mm
LOADING DEPTH
Manual
1200 mm
LOADING HEIGHT
Manual
205 mm
HEIGHT
Manual
225 mm
RACK DEPTH
Manual
960 mm - 1190 mm
Arrow

Weight and Volume

Arrow
PRODUCT WEIGHT
Manual
98 kg
QUANTITY ON PALLET
Manual
5 pcs
PALLET WEIGHT
Manual
520 kg
PALLET SIZE
Manual
130x95x130
NUMBER OF PALLETS /TRAILER
Manual
21
Arrow

Weight Capacity Support Beam

Arrow
OBS! ONLY ONE UNIT PER SECTION MAY BE EXTRACTED AT A TIME!
1 PALLET
Manual
3707 kg
2 PALLET
Manual
5314 kg
3 PALLET
Manual
6921 kg
