Pull-out unit for pallet rack with 100% extension ,600 kg load capacity, Rear-loaded, short-side handled EUR-pallet

- +
Product added to cart
Article Number: 11 602-1 Categories: ,
Arrow

Description

Arrow

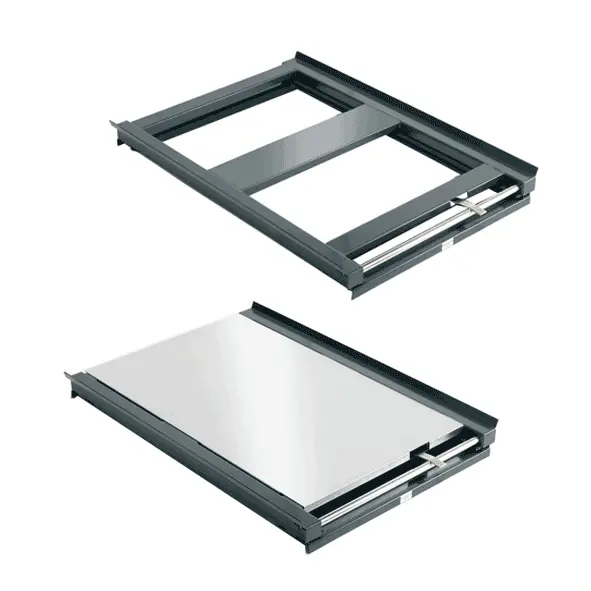

Beam-mounted (BM) units are mounted on the cross-beams between
the pallet racking uprights. The lower frame of the pull-out unit is
bolted to the beams and the upper frame slides out carrying the
pallet with it.
Pallets may be loaded directly onto the units, but other options allow
for storage on open shelving, in plastic bins and in cartons. Being able
to pull the units out of the rack allows for safe and easy access to
stored items!
BM units are available in a range of capacities up to 1500kg and in
a variety of formats to suit your requirements. They can cater for
all pallet sizes and types (wood, steel, plastic), front or rear loading
at the pallet rack, short or long-side handling, as well as for pallet
collars with dividers, containers, bins and loose storage. The base
frame BM unit is for pallets.

Arrow

Product Features

Arrow
TYPE OF LOAD Manual
EUR-pallet
LOADING Manual
Rear loaded
SHORT OR LONG SIDE HANDLED Manual
Short side handled
WEIGHT CAPACITY Manual
600 kg
EXTENSION Manual
100%
LOAD WAY Manual
One-way
LOAD METHOD ManualManualManual
Forklift | Overhead crane | Pallet stacker
PICKING METHOD ManualManual
By hand | Overhead crane
Arrow

Technical Specification

Arrow
WIDTH
Manual
875 mm
LOADING WIDTH
Manual
821 mm
DEPTH
Manual
1235 mm
LOADING DEPTH
Manual
1200 mm
LOADING HEIGHT
Manual
122 mm
HEIGHT
Manual
150 mm
RACK DEPTH
Manual
970 mm - 1170 mm
Arrow

Weight and Volume

Arrow
PRODUCT WEIGHT
Manual
67 kg
QUANTITY ON PALLET
Manual
6 pcs
PALLET WEIGHT
Manual
427 kg
PALLET SIZE
Manual
125x90x135
NUMBER OF PALLETS /TRAILER
Manual
25
Arrow

Weight Capacity Support Beam

Arrow
OBS! ONLY ONE UNIT PER SECTION MAY BE EXTRACTED AT A TIME!
1 PALLET
Manual
1866 kg
2 PALLET
Manual
2532 kg
3 PALLET
Manual
3198 kg
