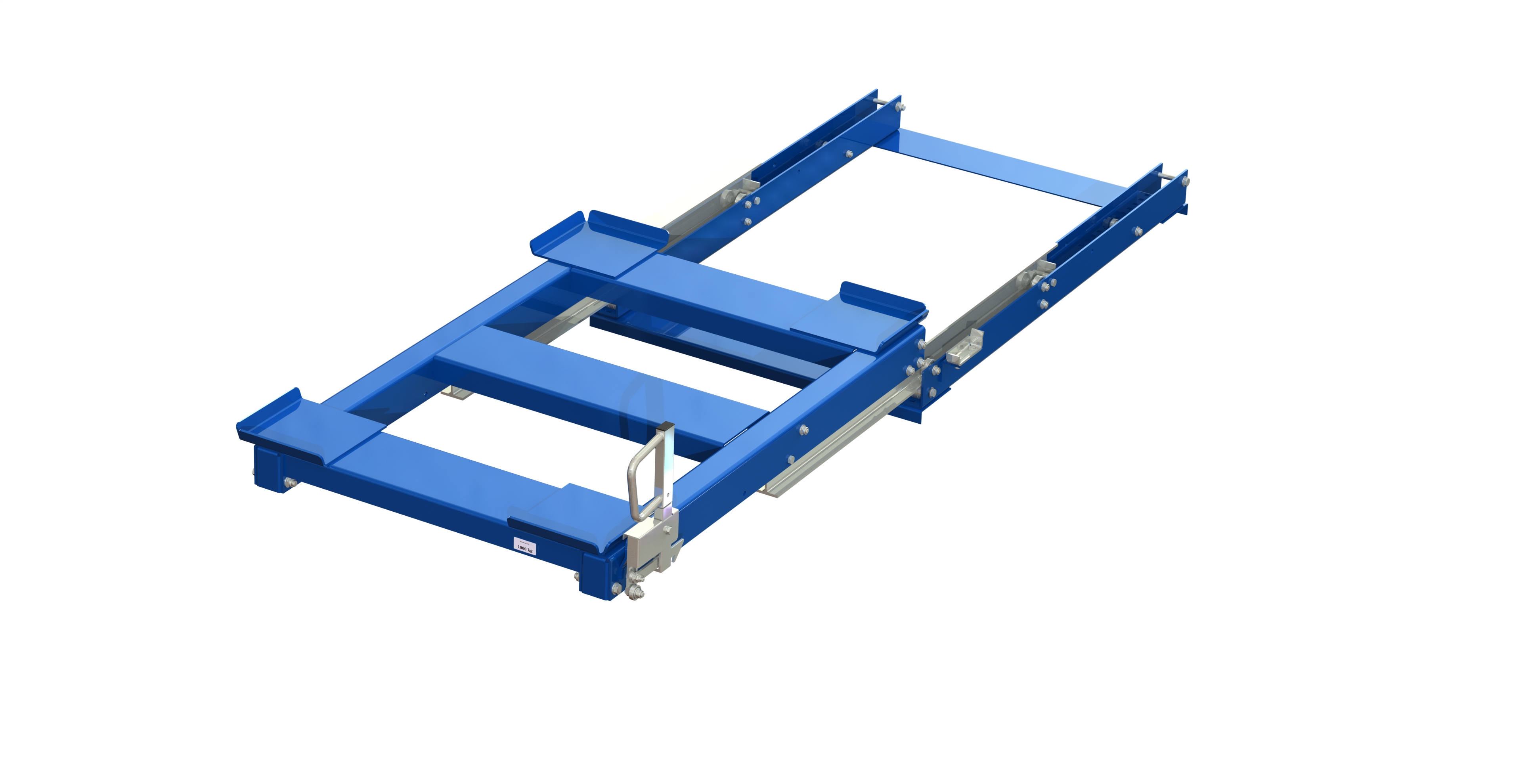

Pull-out unit for pallet rack with 100% extension ,1000 kg load capacity, Rear-loaded, short-side handled HMU

- +
Product added to cart
Article Number: 11 1010-1 Categories: ,
Arrow

Description

Arrow

Beam-mounted (BM) units are mounted on the cross-beams between
the pallet racking uprights. The lower frame of the pull-out unit is
bolted to the beams and the upper frame slides out carrying the
pallet with it.
Pallets may be loaded directly onto the units, but other options allow
for storage on open shelving, in plastic bins and in cartons. Being able
to pull the units out of the rack allows for safe and easy access to
stored items!
BM units are available in a range of capacities up to 1500kg and in
a variety of formats to suit your requirements. They can cater for
all pallet sizes and types (wood, steel, plastic), front or rear loading
at the pallet rack, short or long-side handling, as well as for pallet
collars with dividers, containers, bins and loose storage. The base
frame BM unit is for pallets.

Arrow

Product Features

Arrow
TYPE OF LOAD Manual
Gitterbox
LOADING Manual
Rear loaded
SHORT OR LONG SIDE HANDLED Manual
Short side handled
WEIGHT CAPACITY Manual
1000 kg
EXTENSION Manual
100%
LOAD WAY Manual
One-way
LOAD METHOD ManualManualManual
Forklift | Overhead crane | Pallet stacker
PICKING METHOD ManualManual
By hand | Overhead crane
Arrow

Technical Specification

Arrow
WIDTH
Manual
202 mm
LOADING WIDTH
Manual
825 mm
DEPTH
Manual
970 mm – 1220 mm
LOADING DEPTH
Manual
1225 mm
HEIGHT
Manual
202 mm
RACK DEPTH
Manual
970 mm - 1220 mm
Arrow

Weight and Volume

Arrow
PALLET WEIGHT
Manual
555 kg
PALLET SIZE
Manual
130x95x135
NUMBER OF PALLETS /TRAILER
Manual
25
Arrow

Weight Capacity Support Beam

Arrow
OBS! ONLY ONE UNIT PER SECTION MAY BE EXTRACTED AT A TIME!
1 PALLET
Manual
3098 kg, 3098kg
2 PALLET
Manual
4196 kg
3 PALLET
Manual
5294 kg
