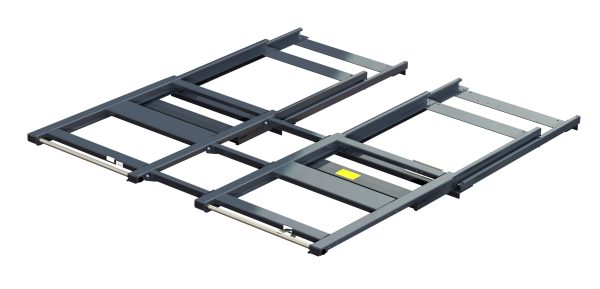

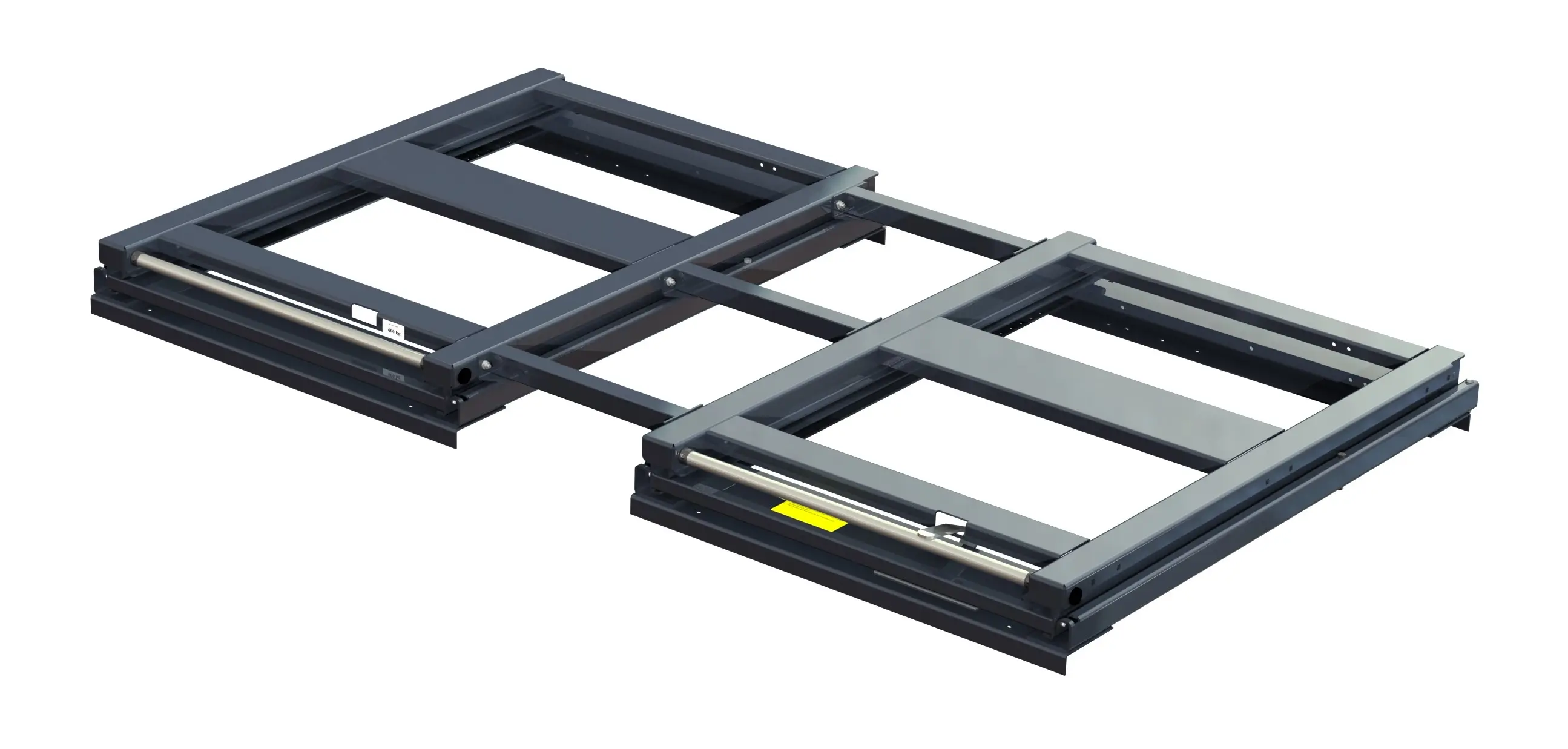

27 621-1 Wide beam-mounted pull-out unit 600 kg 100% W=2100

- +
Product added to cart
ART No: 27 621-1 Categories: ,
Arrow

Description

Arrow

Wide beam-mounted pull-out units are suitable for storing items such as long goods and sheet material.
100% pull-out capacity and 600 kg load capacity. Loading area is W=2100 mm D=1200 mm. Load from front or rear side and pick from front side. Mount the pull-out units in your regular pallet racking, and you have a cost-effective and practical storage module.

Arrow

Product Features

Arrow
WEIGHT CAPACITY Manual
600kg
EXTENSION Manual
100%
LOAD METHOD ManualManual
Forklift | Overhead crane
TYPE OF LOAD Manual
Pipes | Rods | Sheet materials
LOAD WAY Manual
One-way
PICKING METHOD ManualManual
By hand | Overhead crane
Arrow

Technical Specification

Arrow
LOADING WIDTH
Manual
2100mm
LOADING DEPTH
Manual
1200mm
HEIGHT
Manual
114mm
RACK DEPTH
Manual
970 mm - 1170 mm
WIDTH
Manual
2127mm
DEPTH
Manual
1230mm
LOADING HEIGHT
Manual
114mm
Arrow

Weight and Volume

Arrow
PRODUCT WEIGHT
Manual
129kg
QUANTITY AT PALLET
Manual
3pcs
PACKAGE WEIGHT
Manual
412kg
NUMBER OF PALLETS /TRAILER
Manual
25
PACKAGE SIZE
Manual
125x90x140
Arrow

Weight Capacity Support Beam

Arrow
OBS! ONLY ONE UNIT PER SECTION MAY BE EXTRACTED AT A TIME!
2 PALLET
Manual
1326kg
