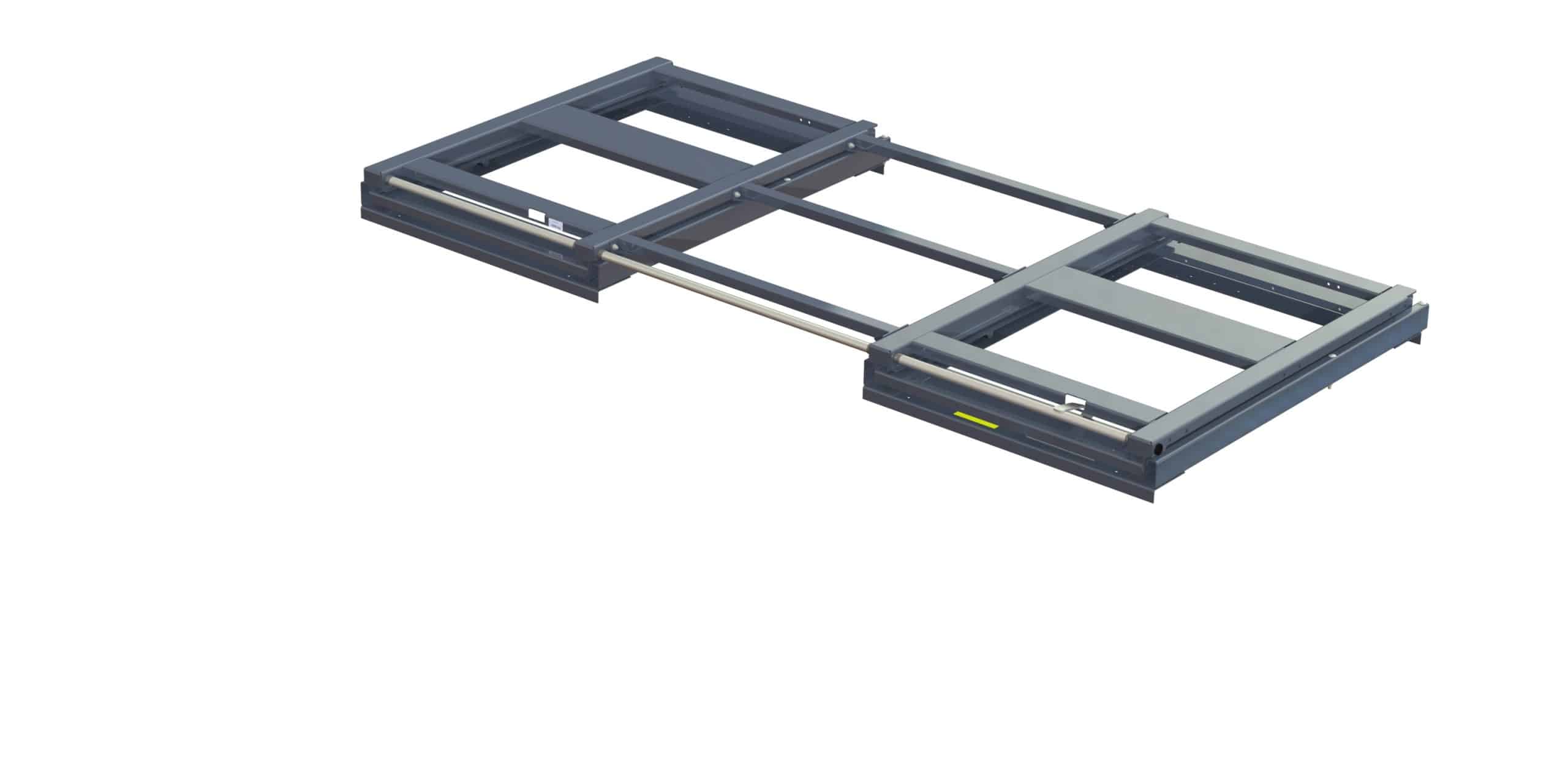

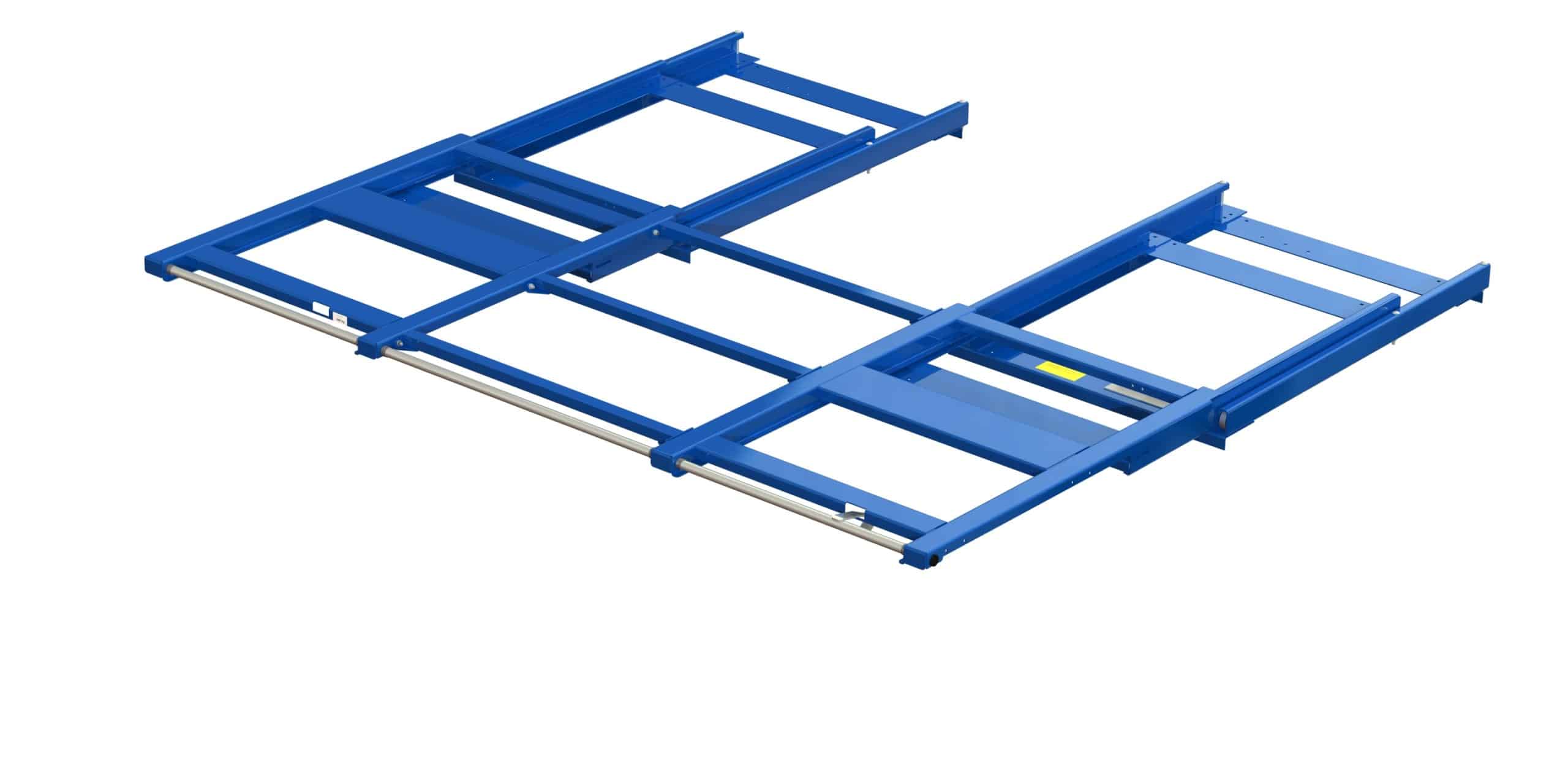

27 1226-1 Wide beam-mounted pull-out unit 1200 kg 100% W=2600

- +
Product added to cart
ART No: 27 1226-1 Categories: ,
Arrow

Description

Arrow

Wide beam-mounted pull-out units are suitable for storing items such as long goods and sheet material.
100% pull-out capacity and 1200 kg load capacity. Loading area is W=2600 mm D=1200 mm. Load from front or rear side and pick from front side. Mount the pull-out units in your regular pallet racking, and you have a cost-effective and practical storage module.

Arrow

Product Features

Arrow
WEIGHT CAPACITY Manual
1200kg
EXTENSION Manual
100%
LOAD METHOD ManualManual
Forklift | Overhead crane
TYPE OF LOAD Manual
Pipes | Rods | Sheet materials
LOADING Manual
Front loaded
LOAD WAY Manual
One-way
PICKING METHOD ManualManual
By hand | Overhead crane
Arrow

Technical Specification

Arrow
LOADING WIDTH
Manual
2600mm
LOADING DEPTH
Manual
1200 mm
HEIGHT
Manual
122mm
RACK DEPTH
Manual
970 mm - 1170 mm
WIDTH
Manual
2630 mm
DEPTH
Manual
1235 mm
LOADING HEIGHT
Manual
122mm
Arrow

Weight and Volume

Arrow
PRODUCT WEIGHT
Manual
145kg
QUANTITY AT PALLET
Manual
3pcs
PACKAGE WEIGHT
Manual
460kg
NUMBER OF PALLETS /TRAILER
Manual
25
PACKAGE SIZE
Manual
125x90x135
Arrow

Weight Capacity Support Beam

Arrow
OBS! ONLY ONE UNIT PER SECTION MAY BE EXTRACTED AT A TIME!
2 PALLET
Manual
2532kg
