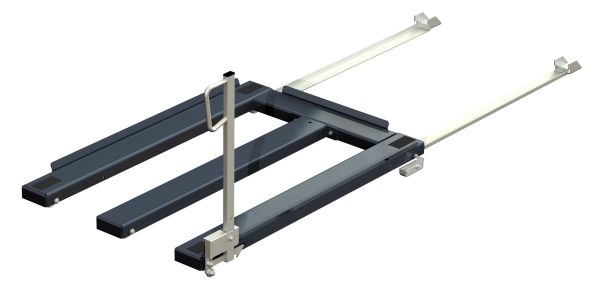

Floor mounted pull-out unit ,1500 kg, Front-loaded, short-side handled EUR-pallet

- +
Product added to cart
Article Number: 13 1501 Categories: ,
Arrow

Description

Arrow

Floor-mounted (FM) units fit under the rack and are compatible with almost any type of pallet racking, but can also be used as freestanding units. They are fixed to the floor with bolts through the lower frames, which act as rails for the upper frames to slide out on bearings, and are supported by high quality pallet truck wheels at the front. Being able to pull the units out of the rack allows for safe and easy access to stored goods! Cost-saving ergonomics are a primary consideration with FM units, as with all Smart Storing designs. Each model uses the right sizes and numbers of quality ball bearings, so they’re strong, reliable and easy to slide in and out. Guide rails ensure the units stay in line when pulled out, and can be pushed back in without effort. A safety latch is automatically engaged when the unit is in the rack. This prevents the unit from being unintentionally pushed out from the other side of the rack. (This feature is especially important when using rear loaded units or units placed in a double rack, where they can be hit from behind when loading the opposite unit).

Arrow

Product Features

Arrow
TYPE OF LOAD Manual
EUR-pallet
LOADING Manual
Front loaded
SHORT OR LONG SIDE HANDLED Manual
Short side handled
WEIGHT CAPACITY Manual
1500 kg
EXTENSION Manual
85%
LOAD WAY Manual
One-way
LOAD METHOD ManualManualManualManual
Forklift | Hand pallet truck | Overhead crane | Pallet stacker
PICKING METHOD ManualManual
By hand | Overhead crane
Arrow

Technical Specification

Arrow
WIDTH
Manual
70 mm
LOADING WIDTH
Manual
834 mm
LOADING DEPTH
Manual
1208 mm
LOADING HEIGHT
Manual
70 mm
HEIGHT
Manual
98 mm
Arrow

Weight and Volume

Arrow
QUANTITY ON PALLET
Manual
12 pcs
PALLET WEIGHT
Manual
580 kg
PALLET SIZE
Manual
125x90x125
NUMBER OF PALLETS /TRAILER
Manual
25
