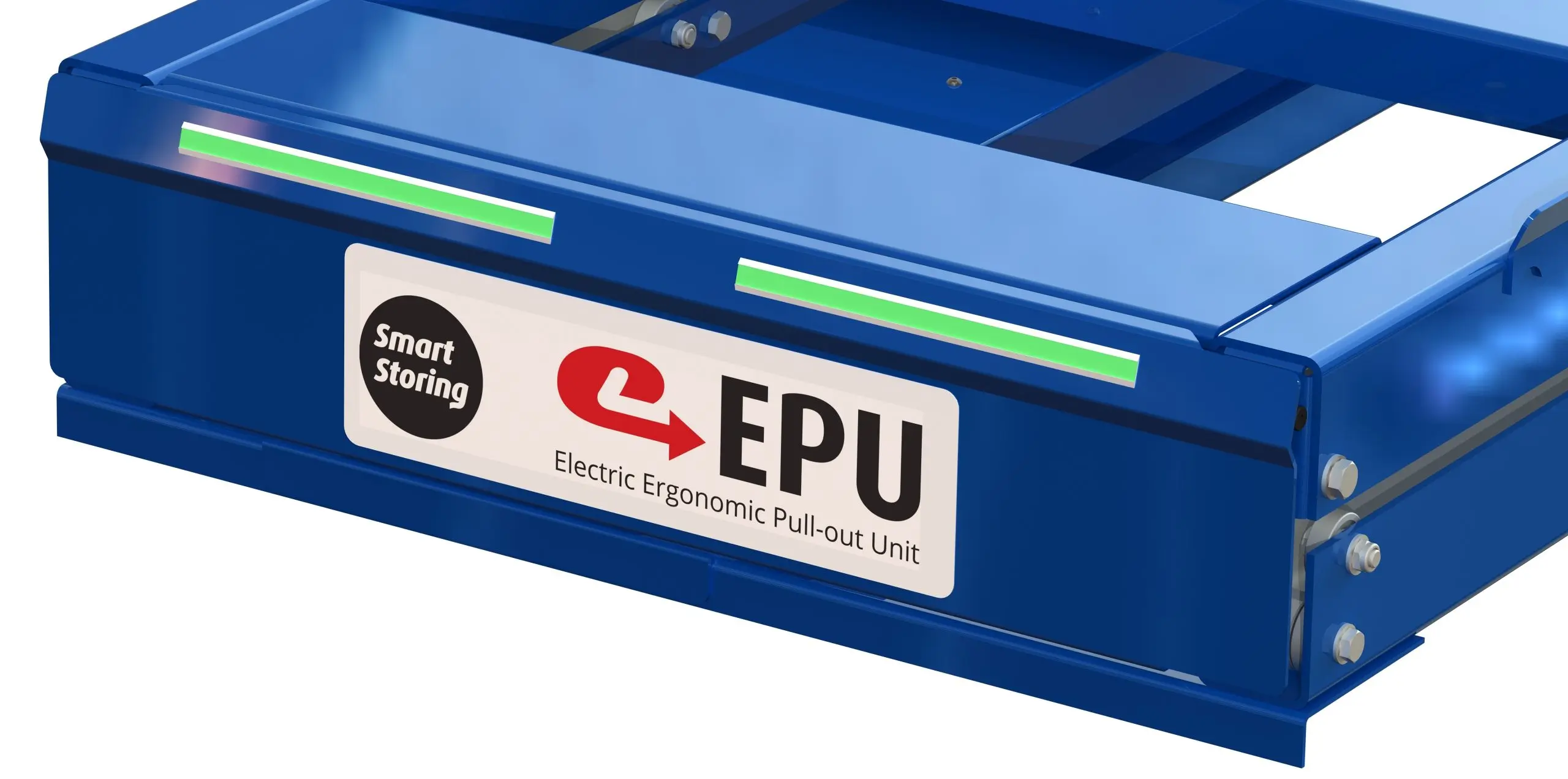

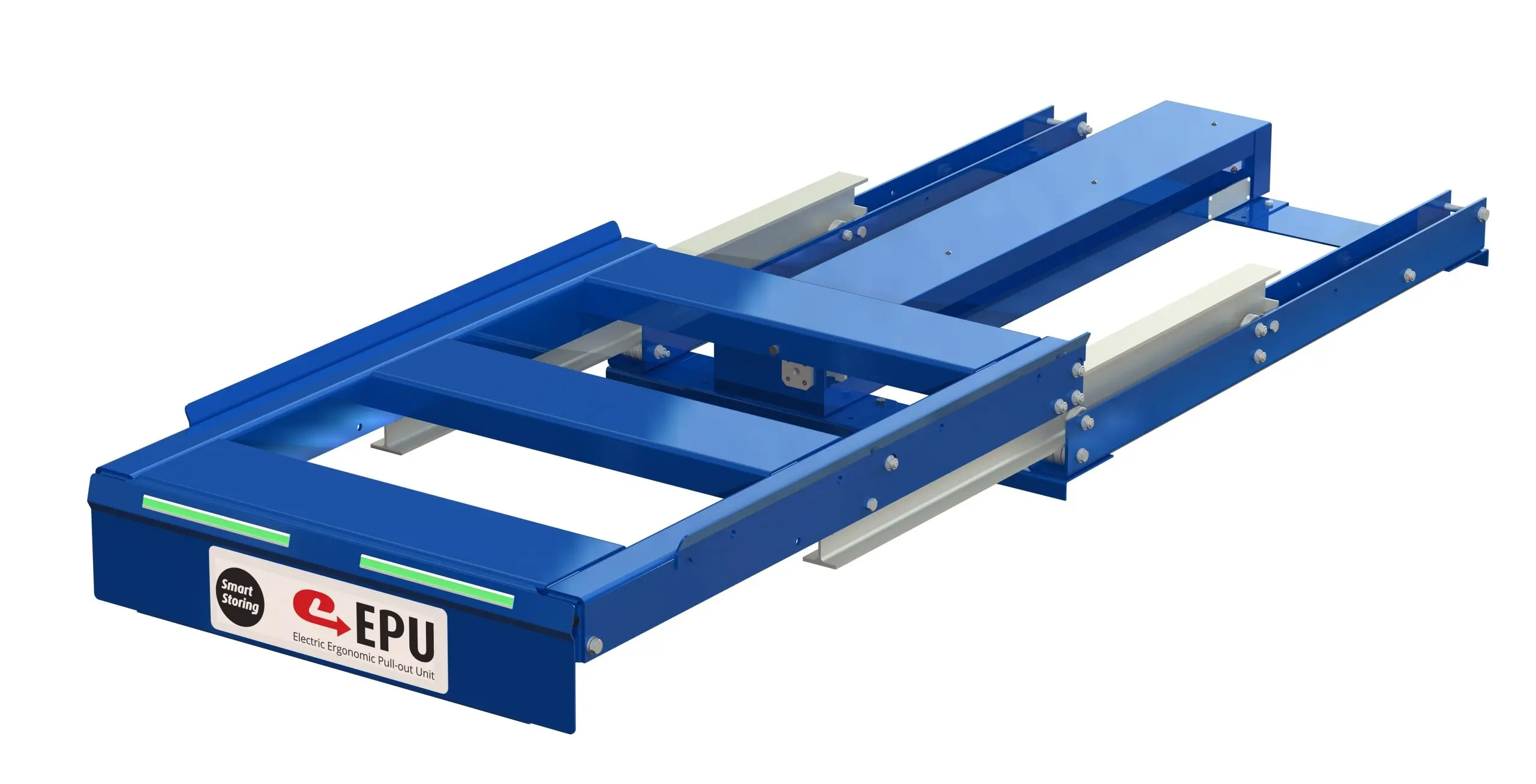

11E 1501-0 ,e-EPU, Ergonomic Electric Pull-out Unit 1500kg, 70% extension,Front-loaded

– Easy installation
– Servo motor with encoder
-Load capacity up to 1000 kg
-Soft start and stop
-Full stroke in 6 seconds
-Optional radio control

- +
Product added to cart
ART No: 11E 1501-0 Categories: ,
Arrow

Description

Arrow

– Easy installation
– Servo motor with encoder
-Load capacity up to 1500 kg
-Soft start and stop
-Full stroke in 6 seconds
-Optional radio control

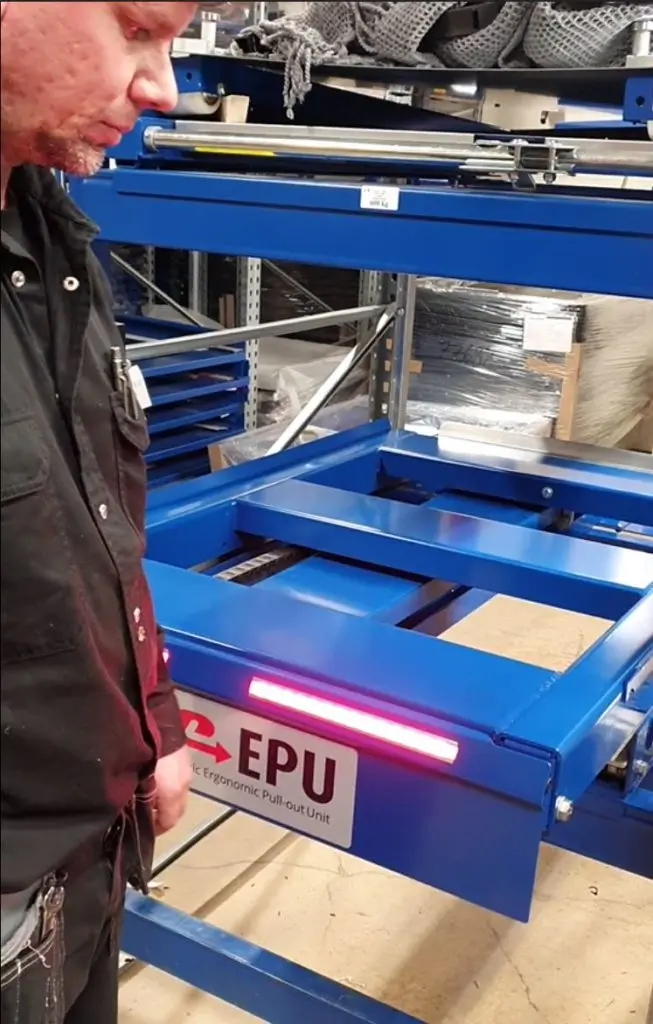

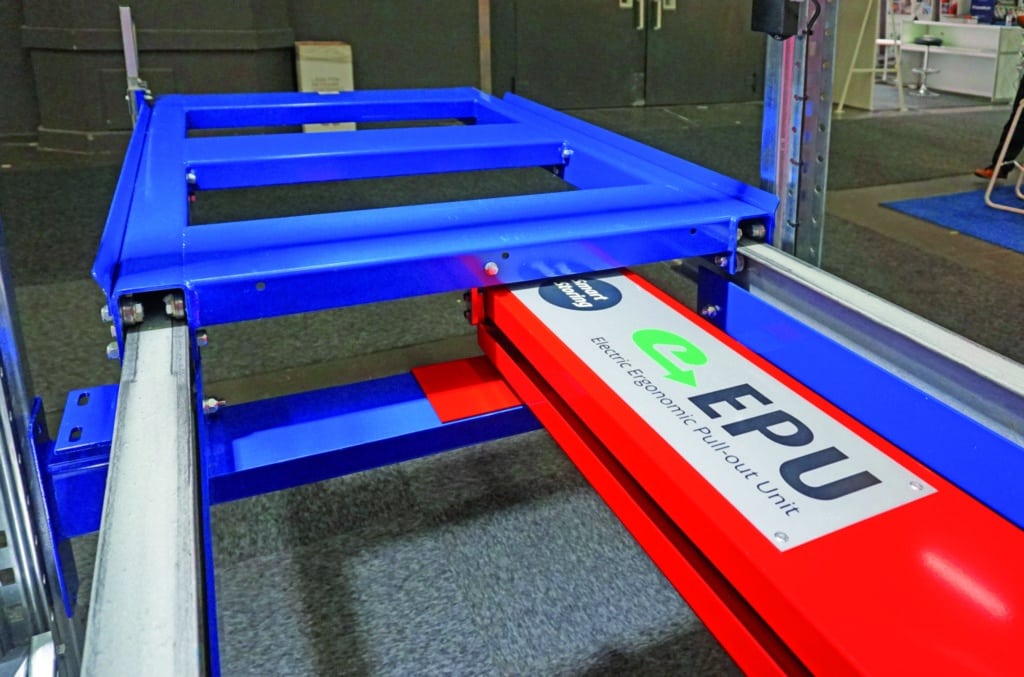

Smart Storing´s new e-EPU (Ergonomic Electric Pull-out Unit) further improves ergonomics by eliminating all manual handling forces. The e-EPU is suited for applications where heavy
goods are picked from pallets, often with help of an overhead crane. It´s also possible to use the e-EPU in a robot cell and integrate it into a fully automatic solution. Load capacity up to 1500 kg. Easy installation; the e-EPU is attached to a pallet rack with 4 screws and the power cable is plugged into a normal 230 VAC socket. It´s controlled by push buttons in a separate control
panel. On request we offer radio control.

Arrow

Product Features

Arrow
WEIGHT CAPACITY Manual
1500 kg
EXTENSION Manual
70%
LOAD METHOD ManualManualManual
Forklift | Overhead crane | Pallet stacker
TYPE OF LOAD Manual
EUR-pallet
LOADING Manual
Front loaded
LOAD WAY Manual
One-way
PICKING METHOD ManualManual
By hand | Overhead crane
SHORT OR LONG SIDE HANDLED Manual
Short side handled
Arrow

Technical Specification

Arrow
LOADING WIDTH
Manual
820 mm
LOADING DEPTH
Manual
1200 mm
HEIGHT
Manual
243-mm
RACK DEPTH
Manual
970 mm - 1170 mm
WIDTH
Manual
847-mm
DEPTH
Manual
1260 mm
LOADING HEIGHT
Manual
202 mm
Arrow

Weight and Volume

Arrow
PRODUCT WEIGHT
Manual
96 kg
QUANTITY AT PALLET
Manual
5-pcs
PACKAGE WEIGHT
Manual
505 kg
NUMBER OF PALLETS /TRAILER
Manual
25
PACKAGE SIZE
Manual
130x95x125
