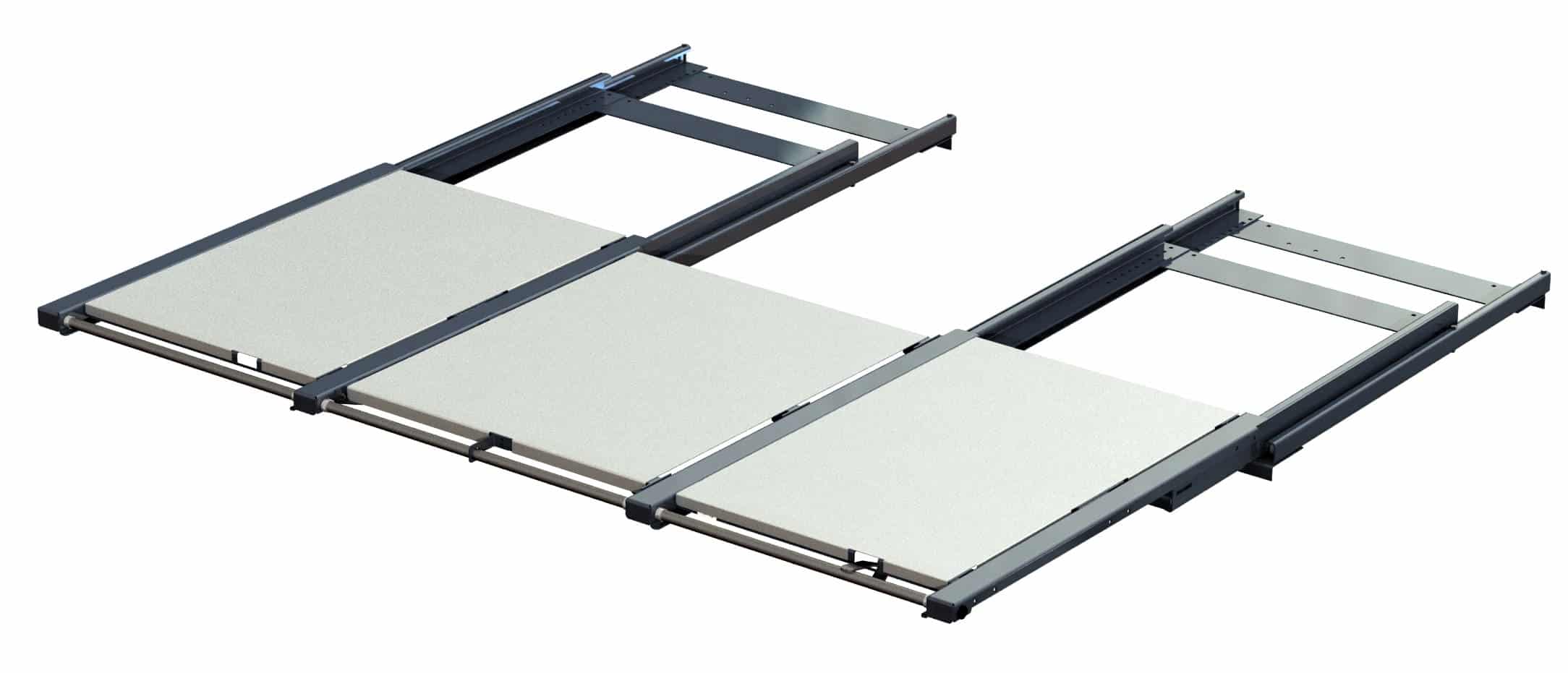

Wide beam-mounted pull-out unit 600 kg 100% W=2600

- +
Product added to cart
Article Number: 27 626-1 Categories: ,
Arrow

Description

Arrow

Wide beam-mounted pull-out units are suitable for storing items such as long goods and sheet material.
100% pull-out capacity and 600 kg load capacity. Loading area is W=2600 mm D=1200 mm. Load from front or rear side and pick from front side. Mount the pull-out units in your regular pallet racking, and you have a cost-effective and practical storage module.

Arrow

Product Features

Arrow
TYPE OF LOAD Manual
Pipes | Rods | Sheet materials
WEIGHT CAPACITY Manual
600 kg
EXTENSION Manual
100%
LOAD WAY Manual
One-way
LOAD METHOD ManualManual
Forklift | Overhead crane
PICKING METHOD ManualManual
By hand | Overhead crane
Arrow

Technical Specification

Arrow
WIDTH
Manual
2627 mm
LOADING WIDTH
Manual
2600 mm
DEPTH
Manual
1230 mm
LOADING DEPTH
Manual
1200 mm
LOADING HEIGHT
Manual
114 mm
HEIGHT
Manual
114 mm
RACK DEPTH
Manual
970 mm - 1170 mm
Arrow

Weight and Volume

Arrow
PRODUCT WEIGHT
Manual
135 kg
QUANTITY ON PALLET
Manual
3 pcs
PALLET WEIGHT
Manual
430 kg
PALLET SIZE
Manual
125x90x140
NUMBER OF PALLETS /TRAILER
Manual
25
Arrow

Weight Capacity Support Beam

Arrow
OBS! ONLY ONE UNIT PER SECTION MAY BE EXTRACTED AT A TIME!
2 PALLET
Manual
1326 kg
