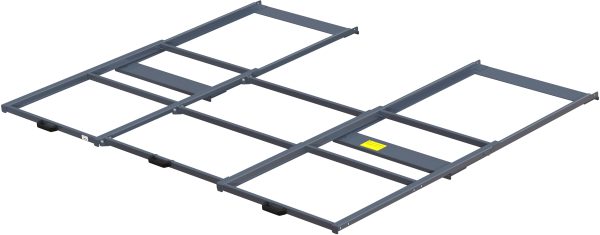

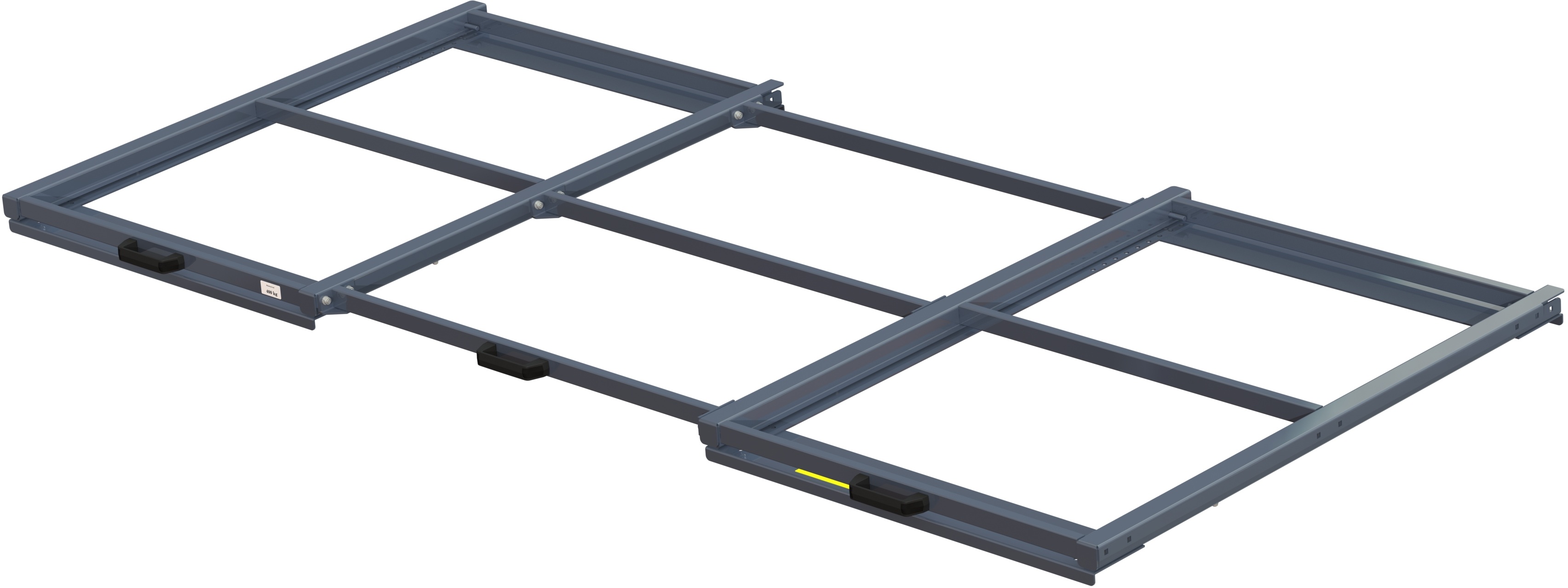

Wide beam-mounted pull-out unit 400 kg 70% W=2600

- +
Product added to cart
Article Number: 27 426-0 Categories: ,
Arrow

Description

Arrow

Wide beam-mounted pull-out units are suitable for storing items such as long goods and sheet material.
70% pull-out capacity and 400 kg load capacity. Loading area is W=2600 mm D=1200 mm. Load from front or rear side and pick from front side. Mount the pull-out units in your regular pallet racking, and you have a cost-effective and practical storage module.

Arrow

Product Features

Arrow
TYPE OF LOAD ManualManualManual
Pipes | Rods | Sheet materials
LOADING Manual
Front loaded
WEIGHT CAPACITY Manual
400 kg
EXTENSION Manual
70%
LOAD WAY Manual
One-way
LOAD METHOD ManualManual
Forklift | Overhead crane
PICKING METHOD ManualManual
By hand | Overhead crane
Arrow

Technical Specification

Arrow
WIDTH
Manual
2600 mm
LOADING WIDTH
Manual
2600 mm
DEPTH
Manual
1251 mm
LOADING DEPTH
Manual
1208 mm
LOADING HEIGHT
Manual
51 mm
HEIGHT
Manual
51 mm
RACK DEPTH
Manual
970 mm - 1170 mm
Arrow

Weight and Volume

Arrow
PRODUCT WEIGHT
Manual
49 kg
QUANTITY ON PALLET
Manual
6 pcs
PALLET WEIGHT
Manual
319 kg
PALLET SIZE
Manual
125x85x145
NUMBER OF PALLETS /TRAILER
Manual
25
Arrow

Weight Capacity Support Beam

Arrow
OBS! ONLY ONE UNIT PER SECTION MAY BE EXTRACTED AT A TIME!
2 PALLET
Manual
744 kg
