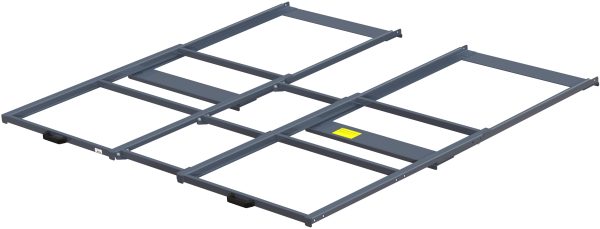

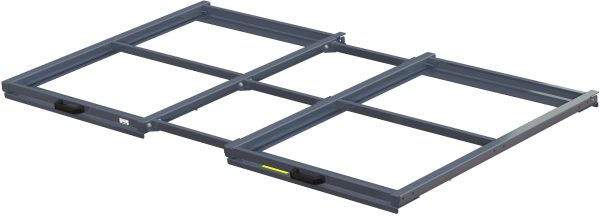

Wide beam-mounted pull-out unit 400 kg 70% W=2100

- +
Product added to cart
Article Number: 27 421-0 Categories: ,

Description

Arrow

Wide beam-mounted pull-out units are suitable for storing items such as long goods and sheet material.

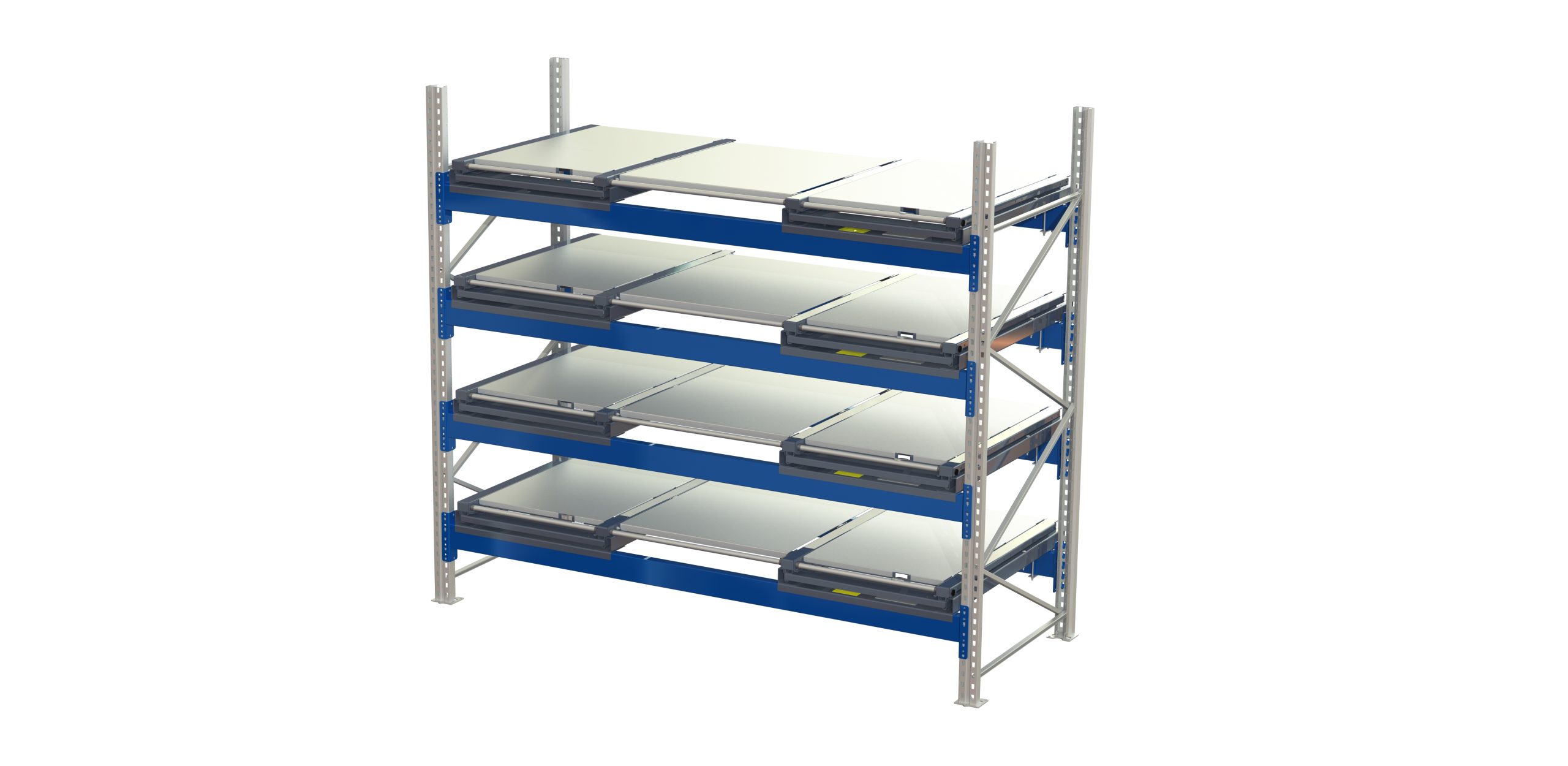

70% pull-out capacity and 400 kg load capacity. Loading area is W=2100 mm D=1200 mm. Load from front or rear side and pick from front side. Mount the pull-out units in your regular pallet racking, and you have a cost-effective and practical storage module.

Product Features

Arrow
Weight capacity Manual
400 kg
Type of load Manual Manual Manual
Pipes, Rods, Sheet materials
Picking Method Manual Manual
By hand, Overhead crane
Load Way Manual
One-way
Loading Manual
Front loaded
Extension Manual
70%
Handled Manual
Manual pull-out unit
Load metod Manual Manual
Forklift, Overhead crane

Technical Specifications

Arrow
Width
Manual
2110 mm
Loading Width
Manual
2110 mm
Rack Depth
Manual
970 mm - 1170 mm
Loading height
Manual
51 mm
Loading Depth
Manual
1208 mm
Depth
Manual
1247 mm
Frame Colour
Manual
Blue, Grey, Special colour
Height
Manual
51 mm

Weight and Volume

Arrow
Quantity on pallet
Manual
6 pcs
Product Weight
Manual
47 kg
Pallet weight
Manual
307 kg
Pallet Size
Manual
125x85x145
Number of pallets / Trailer
Manual
25

Weight Capacity Support Beam

Arrow
WCSB 2 pallets
Manual
744 kg
