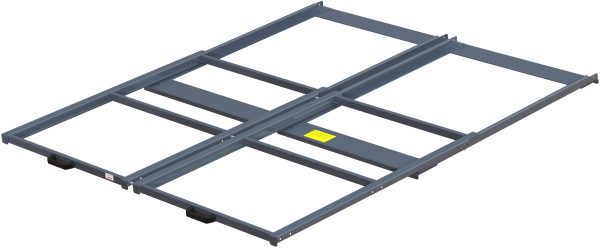

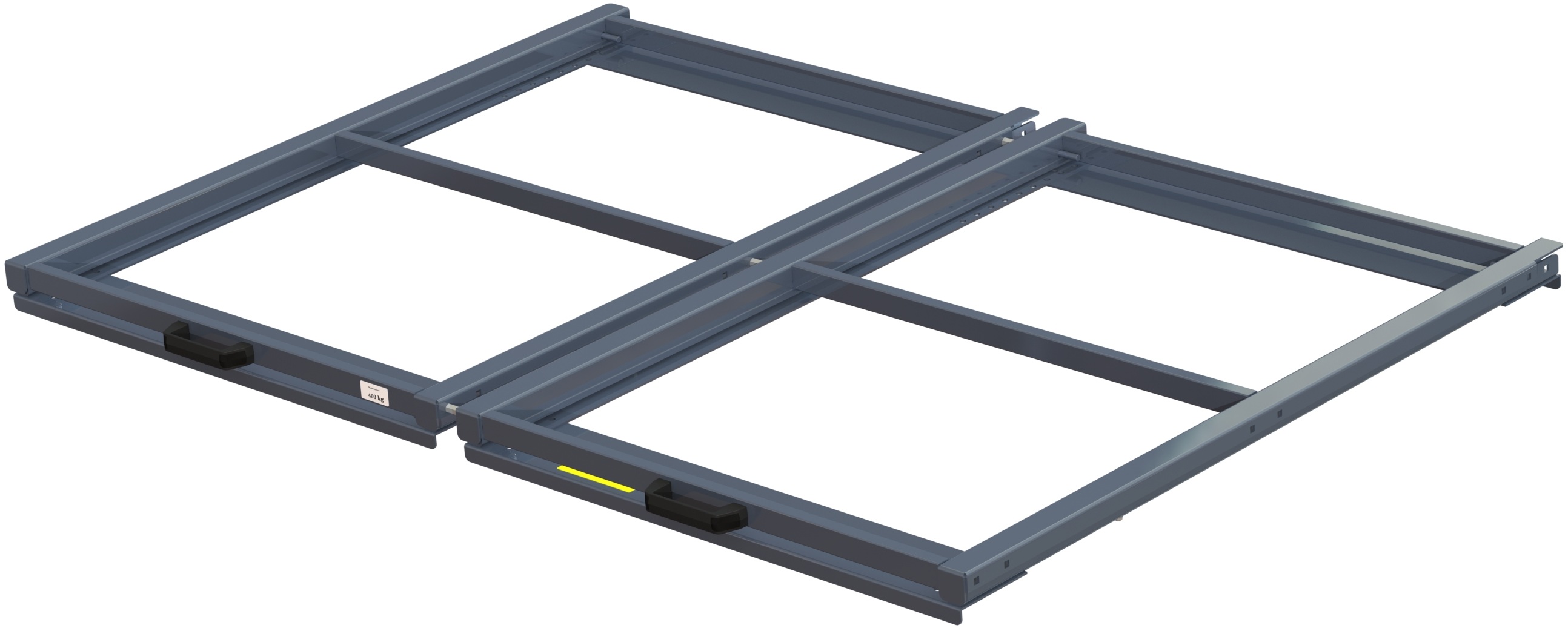

Wide beam-mounted pull-out unit 400 kg 70% W=1700

- +
Product added to cart
Article Number: 27 417-0 Categories: ,

Description

Arrow

Wide beam-mounted pull-out units are suitable for storing items such as long goods and sheet material.
70% pull-out capacity and 400 kg load capacity. Loading area is W=1700 mm D=1200 mm. Load from front or rear side and pick from front side. Mount the pull-out units in your regular pallet racking, and you have a cost-effective and practical storage module.

Product Features

Arrow
Loading Manual
Front loaded
Picking Method Manual Manual
By hand, Overhead crane
Type of load Manual Manual Manual
Pipes, Rods, Sheet materials
Weight capacity Manual
400 kg
Load Way Manual
One-way
Load metod Manual Manual
Forklift, Overhead crane
Handled Manual
Manual pull-out unit
Extension Manual
70%

Technical Specifications

Arrow
Rack Depth
Manual
970 mm - 1170 mm
Width
Manual
1717 mm
Depth
Manual
1247 mm
Loading Width
Manual
1700 mm
Loading height
Manual
51 mm
Loading Depth
Manual
1208 mm
Height
Manual
51 mm
Frame Colour
Manual
Blue, Grey, Special colour

Weight and Volume

Arrow
Pallet weight
Manual
289 kg
Product Weight
Manual
44 kg
Quantity on pallet
Manual
6 pcs
Pallet Size
Manual
125x85x145
Number of pallets / Trailer
Manual
25

Weight Capacity Support Beam

Arrow
WCSB 2 pallets
Manual
744 kg
