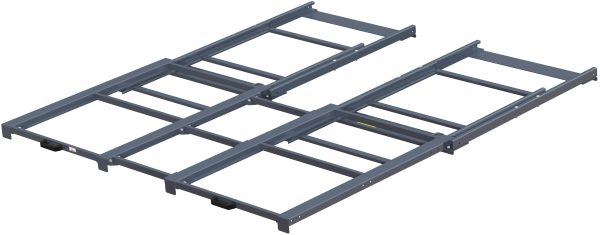

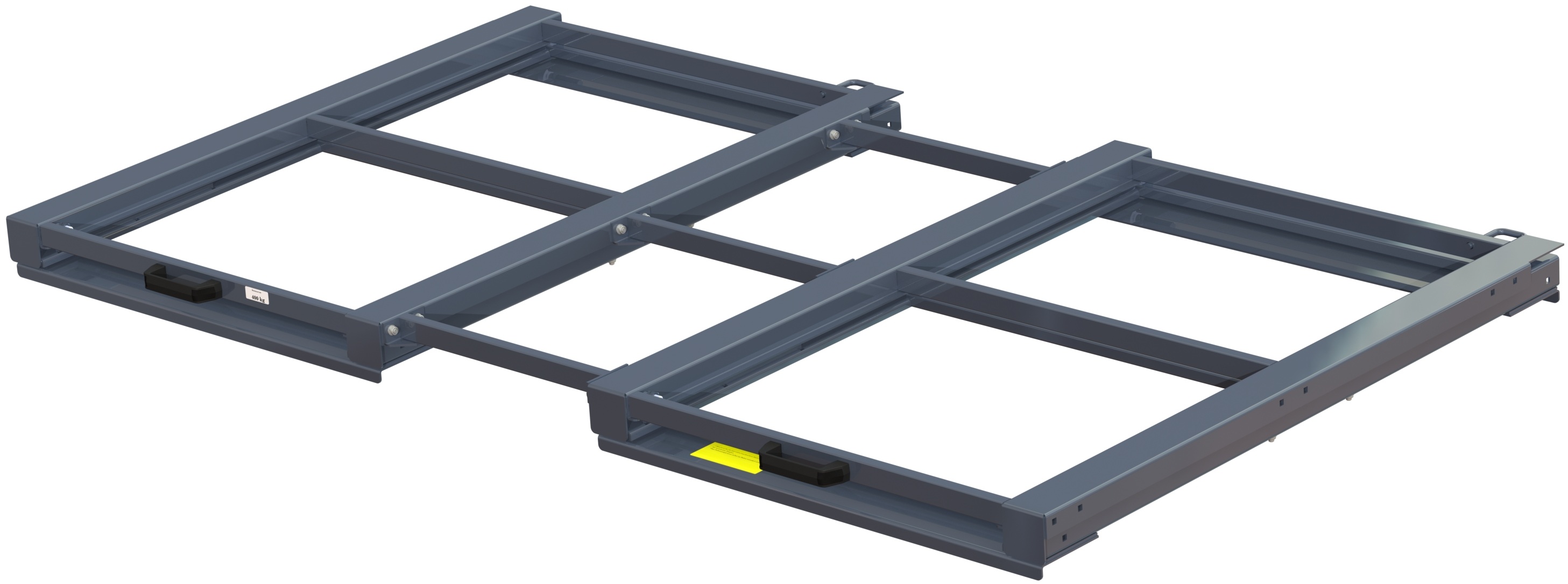

Wide beam-mounted pull-out unit 400 kg 100% W=2100

- +
Product added to cart
Article Number: 27 421-1 Categories: ,

Description

Arrow

Wide beam-mounted pull-out units are suitable for storing items such as long goods and sheet material.
100% pull-out capacity and 400 kg load capacity. Loading area is W=2100 mm D=1200 mm. Load from front or rear side and pick from front side. Mount the pull-out units in your regular pallet racking, and you have a cost-effective and practical storage module.

Product Features

Arrow
Picking Method Manual Manual
By hand, Overhead crane
Extension Manual
100%
Weight capacity Manual
400 kg
Type of load Manual Manual Manual
Pipes, Rods, Sheet materials
Loading Manual
Front loaded
Load Way Manual
One-way
Load metod Manual Manual
Forklift, Overhead crane
Handled Manual
Manual pull-out unit

Technical Specifications

Arrow
Depth
Manual
1273 mm
Width
Manual
2110 mm
Rack Depth
Manual
970 mm - 1170 mm
Loading Width
Manual
2110 mm
Loading height
Manual
74 mm
Loading Depth
Manual
1208 mm
Height
Manual
74 mm
Frame Colour
Manual
Blue, Grey, Special colour

Weight and Volume

Arrow
Quantity on pallet
Manual
5 pcs
Product Weight
Manual
78 kg
Number of pallets / Trailer
Manual
25
Pallet weight
Manual
415 kg
Pallet Size
Manual
125x85x120

Weight Capacity Support Beam

Arrow
WCSB 2 pallets
Manual
900 kg
