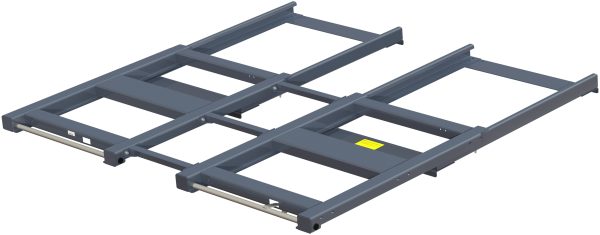

Wide beam-mounted pull-out unit 1600 kg 70% W=2100
Product added to cart
Description
Wide beam-mounted pull-out units are suitable for storing items such as long goods and sheet material.
70% pull-out capacity and 1600 kg load capacity. Loading area is W=2100 mm D=1200 mm. Load from front or rear side and pick from front side. Mount the pull-out units in your regular pallet racking, and you have a cost-effective and practical storage module.
Product Features
TYPE OF LOAD
Pipes | Rods | Sheet materials
LOADING
Front loaded
WEIGHT CAPACITY
1600 kg
EXTENSION
70%
LOAD WAY
One-way
LOAD METHOD
Forklift | Overhead crane
PICKING METHOD
By hand | Overhead crane
Technical Specification
WIDTH
2110 mm
LOADING WIDTH
2100 mm
DEPTH
1210 mm
LOADING DEPTH
1200 mm
LOADING HEIGHT
91 mm
HEIGHT
91 mm
RACK DEPTH
970 mm - 1170 mm
Weight and Volume
PRODUCT WEIGHT
115 kg
QUANTITY ON PALLET
4 pcs
PALLET WEIGHT
485 kg
PALLET SIZE
125x90x130
NUMBER OF PALLETS /TRAILER
25
Weight Capacity Support Beam
OBS! ONLY ONE UNIT PER SECTION MAY BE EXTRACTED AT A TIME!
2 PALLET
2828 kg
