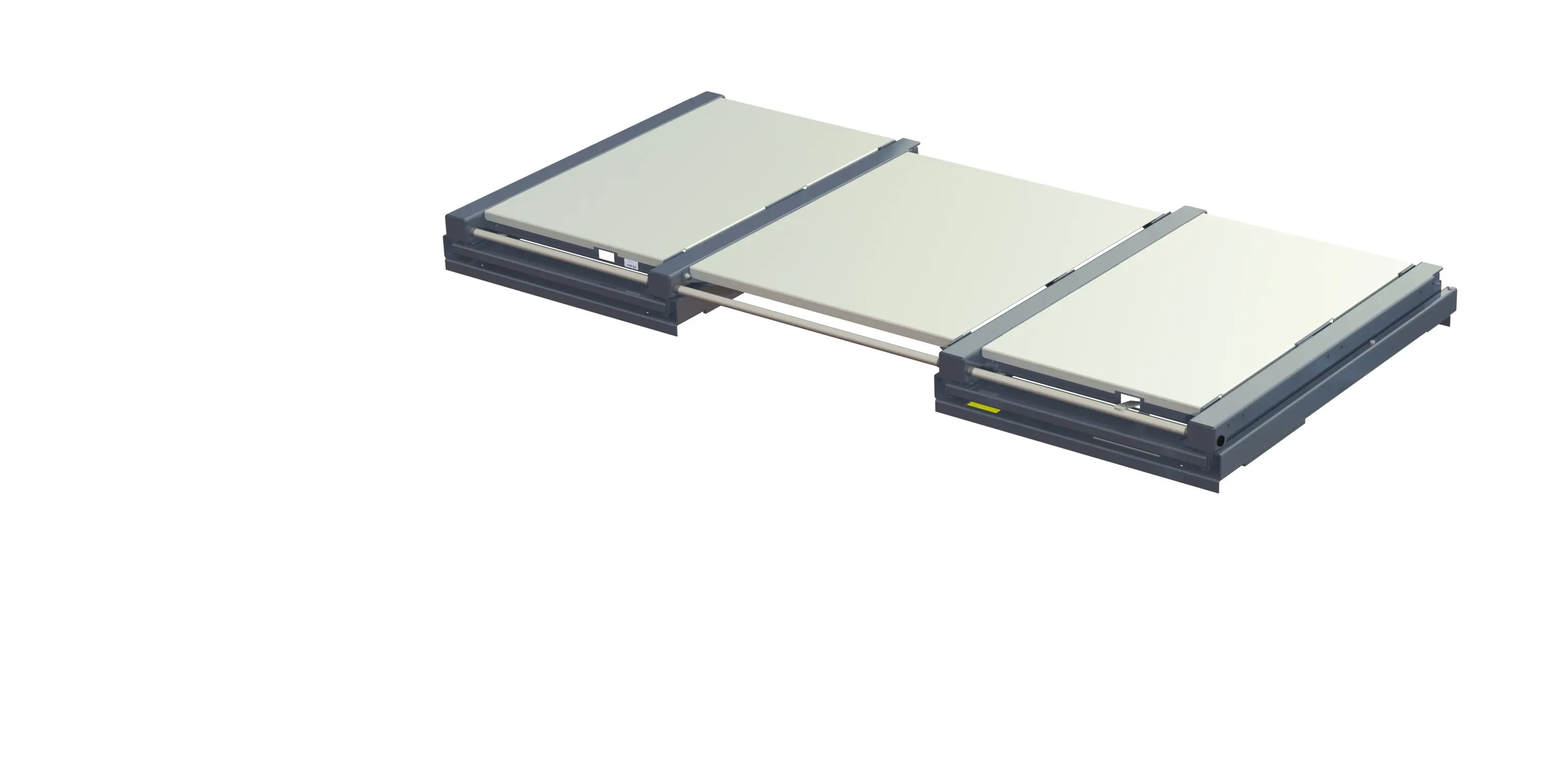

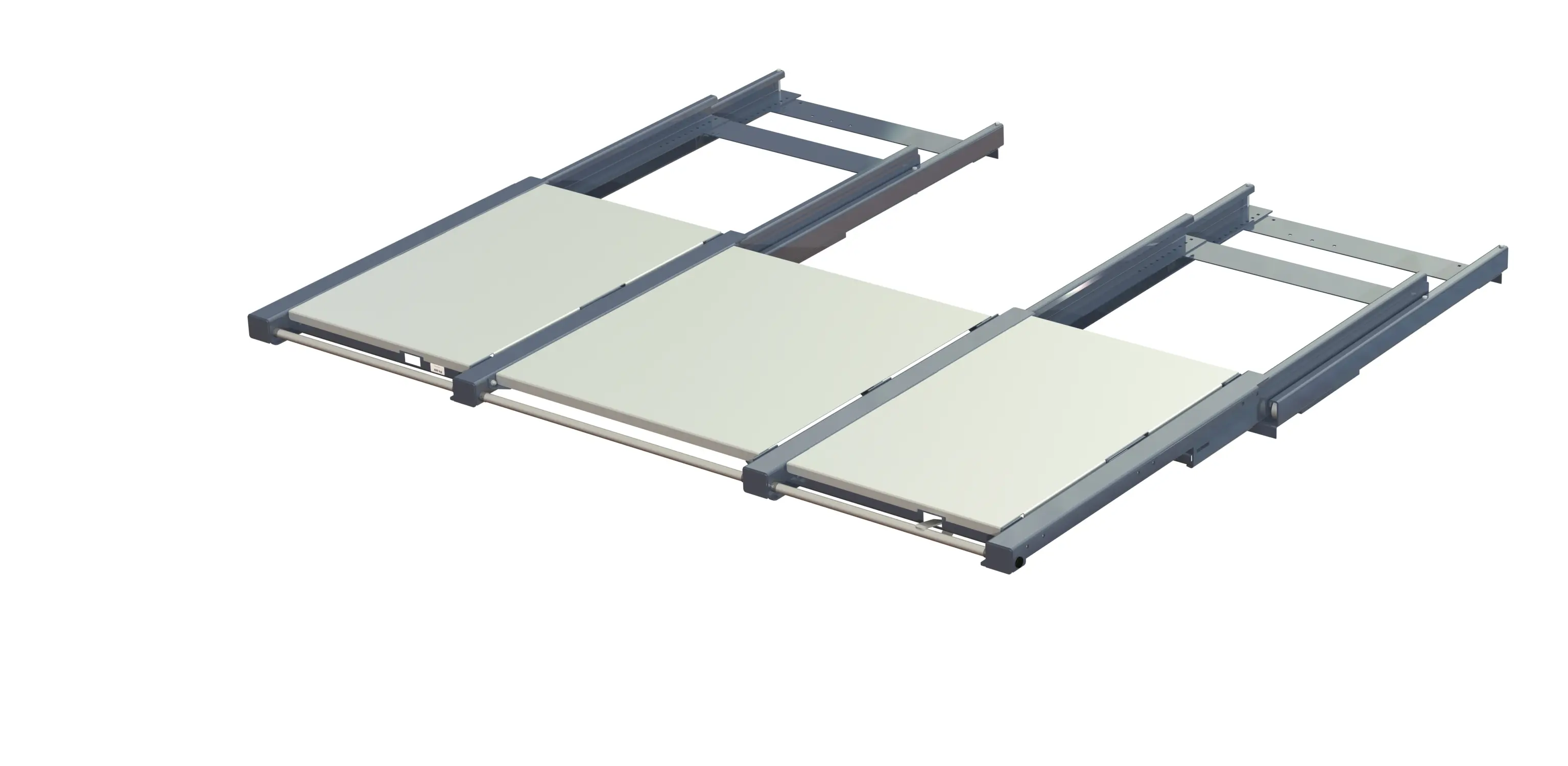

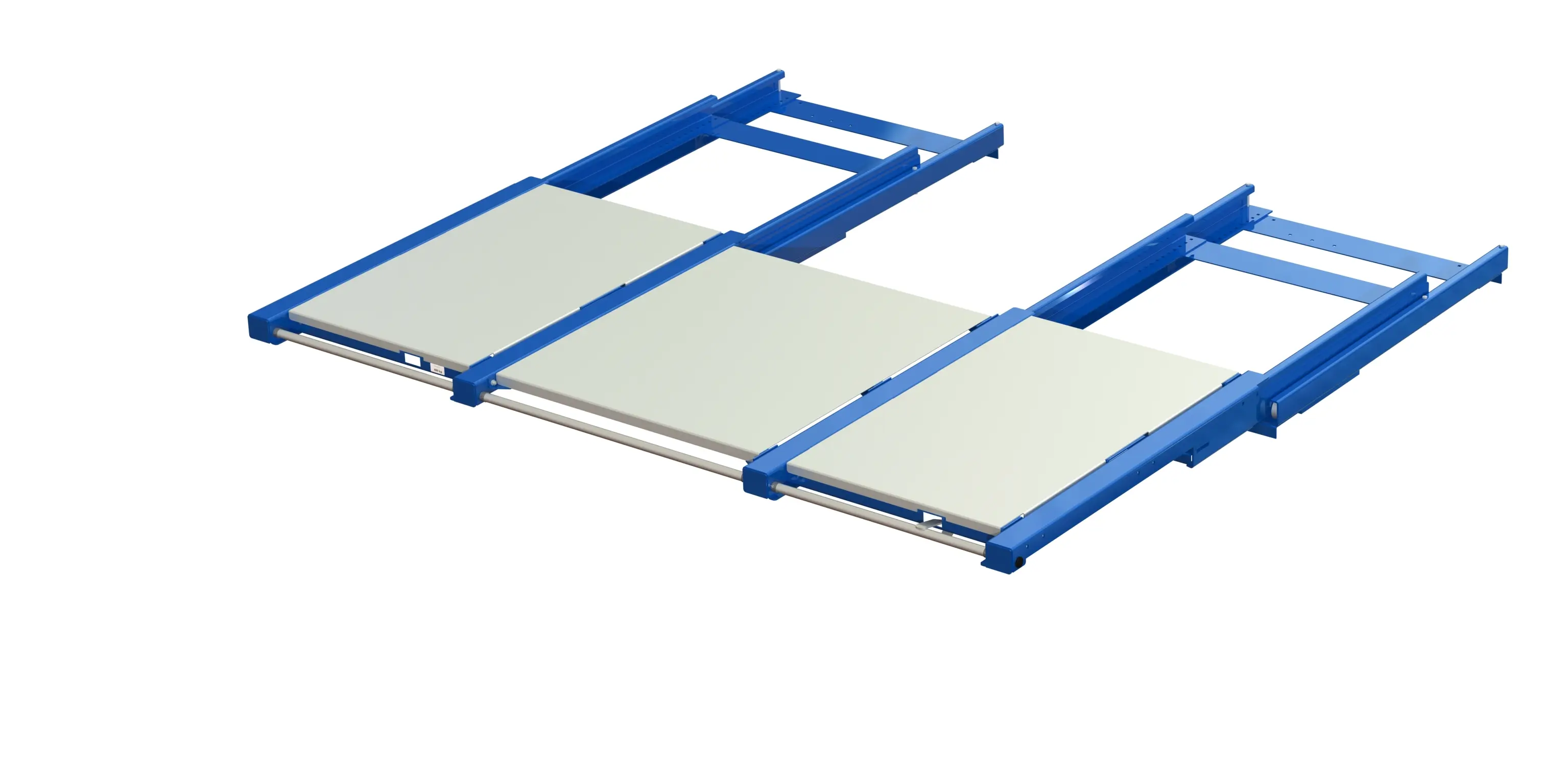

Wide beam-mounted pull-out unit 1600 kg 100% w=2600
Wide beam-mounted pull-out unit 1600 kg 100% w=2600 - image 2
Wide beam-mounted pull-out unit 1600 kg 100% w=2600 - image 3
Wide beam-mounted pull-out unit 1600 kg 100% w=2600 - image 4
Wide beam-mounted pull-out unit 1600 kg 100% w=2600 - image 5

Wide beam-mounted pull-out unit 1600 kg 100% W=2600

- +
Product added to cart
Article Number: 27 1626-1 Categories: ,

Description

Arrow

Wide beam-mounted pull-out units are suitable for storing items such as long goods and sheet material.
100% pull-out capacity and 1600 kg load capacity. Loading area is W=2600 mm D=1200 mm. Load from front or rear side and pick from front side. Mount the pull-out units in your regular pallet racking, and you have a cost-effective and practical storage module.

Product Features

Arrow
Picking Method Manual Manual
By hand, Overhead crane
Type of load Manual Manual Manual
Pipes, Rods, Sheet materials
Weight capacity Manual
1600kg
Loading Manual
Front loaded
Load Way Manual
One-way
Load metod Manual Manual
Forklift, Overhead crane
Handled Manual
Manual pull-out unit
Extension Manual
100%

Technical Specifications

Arrow
Rack Depth
Manual
970 mm - 1170 mm
Width
Manual
2636 mm
Loading Width
Manual
2600 mm
Depth
Manual
1235 mm
Loading height
Manual
147 mm
Loading Depth
Manual
1200 mm
Height
Manual
147 mm
Frame Colour
Manual
Blue, Grey, Special colour

Weight and Volume

Arrow
Pallet weight
Manual
425 kg
Product Weight
Manual
200 kg
Quantity on pallet
Manual
2 pcs
Pallet Size
Manual
125x90x110
Number of pallets / Trailer
Manual
25

Weight Capacity Support Beam

Arrow
WCSB 2 pallets
Manual
3388 kg
