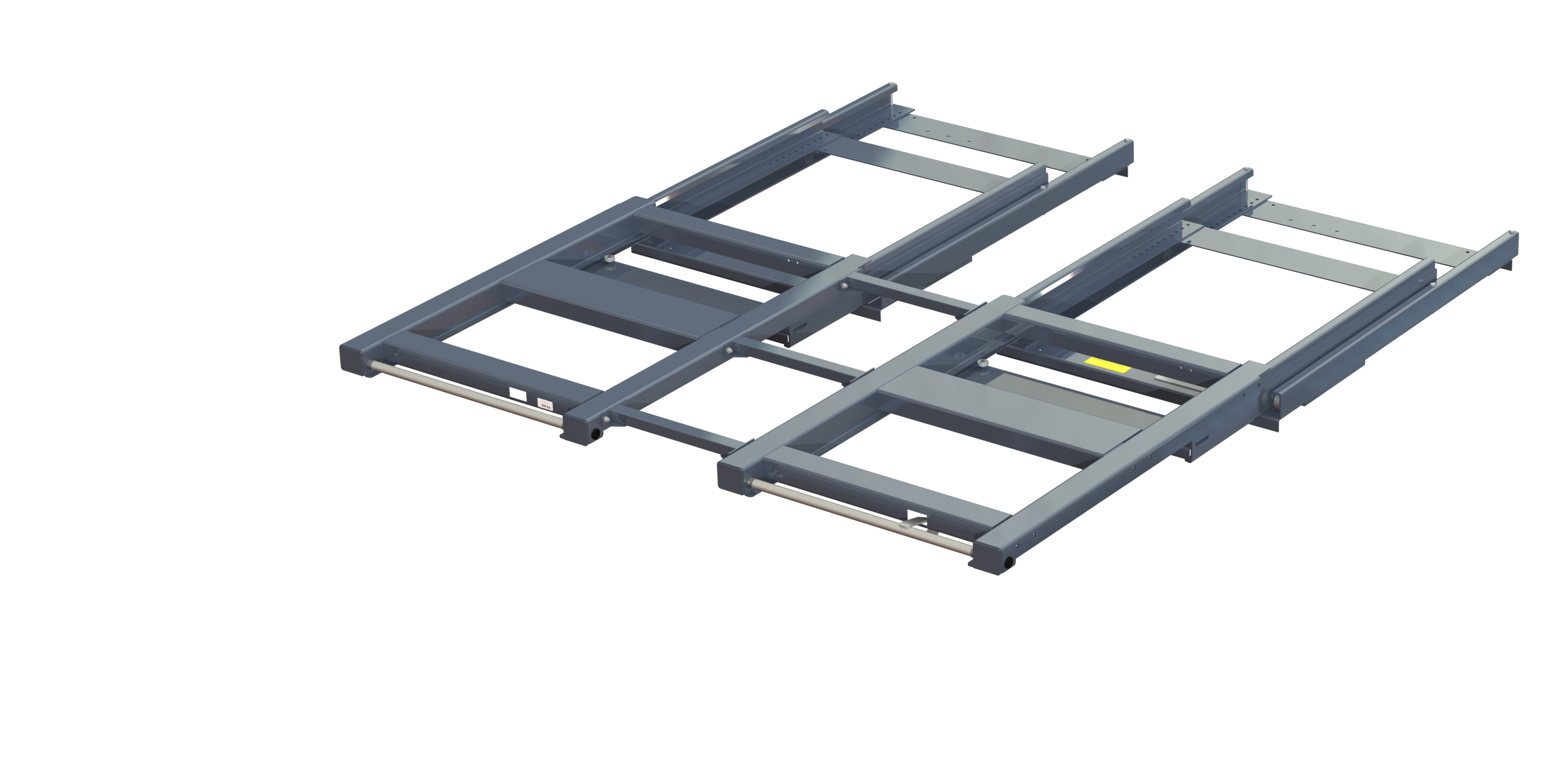

Wide beam-mounted pull-out unit 1600 kg 100% w=2100
Wide beam-mounted pull-out unit 1600 kg 100% w=2100 - image 2
Wide beam-mounted pull-out unit 1600 kg 100% w=2100 - image 3
Wide beam-mounted pull-out unit 1600 kg 100% w=2100 - image 4

Wide beam-mounted pull-out unit 1600 kg 100% W=2100

- +
Product added to cart
Article Number: 27 1621-1 Categories: ,

Description

Arrow

Wide beam-mounted pull-out units are suitable for storing items such as long goods and sheet material.
100% pull-out capacity and 1600 kg load capacity. Loading area is W=2100 mm D=1200 mm. Load from front or rear side and pick from front side. Mount the pull-out units in your regular pallet racking, and you have a cost-effective and practical storage module.

Product Features

Arrow
Picking Method Manual Manual
By hand, Overhead crane
Extension Manual
100%
Handled Manual
Manual pull-out unit
Load metod Manual Manual
Forklift, Overhead crane
Load Way Manual
One-way
Loading Manual
Front loaded
Weight capacity Manual
1600kg
Type of load Manual Manual Manual
Pipes, Rods, Sheet materials

Technical Specifications

Arrow
Rack Depth
Manual
970 mm - 1170 mm
Loading Width
Manual
2100 mm
Depth
Manual
1235 mm
Frame Colour
Manual
Blue, Grey, Special colour
Height
Manual
147 mm
Loading Depth
Manual
1200 mm
Loading height
Manual
147 mm
Width
Manual
2136 mm

Weight and Volume

Arrow
Quantity on pallet
Manual
2 pcs
Product Weight
Manual
195 kg
Pallet weight
Manual
415 kg
Pallet Size
Manual
125x90x110
Number of pallets / Trailer
Manual
25

Weight Capacity Support Beam

Arrow
WCSB 2 pallets
Manual
3388 kg
