Wide beam-mounted pull-out unit 1200 kg 70% W=2600
Product added to cart
Description

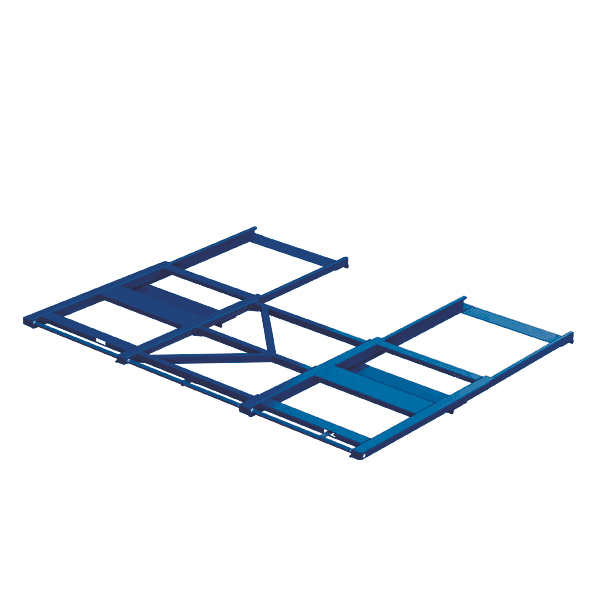

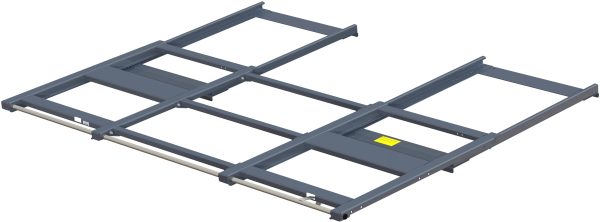

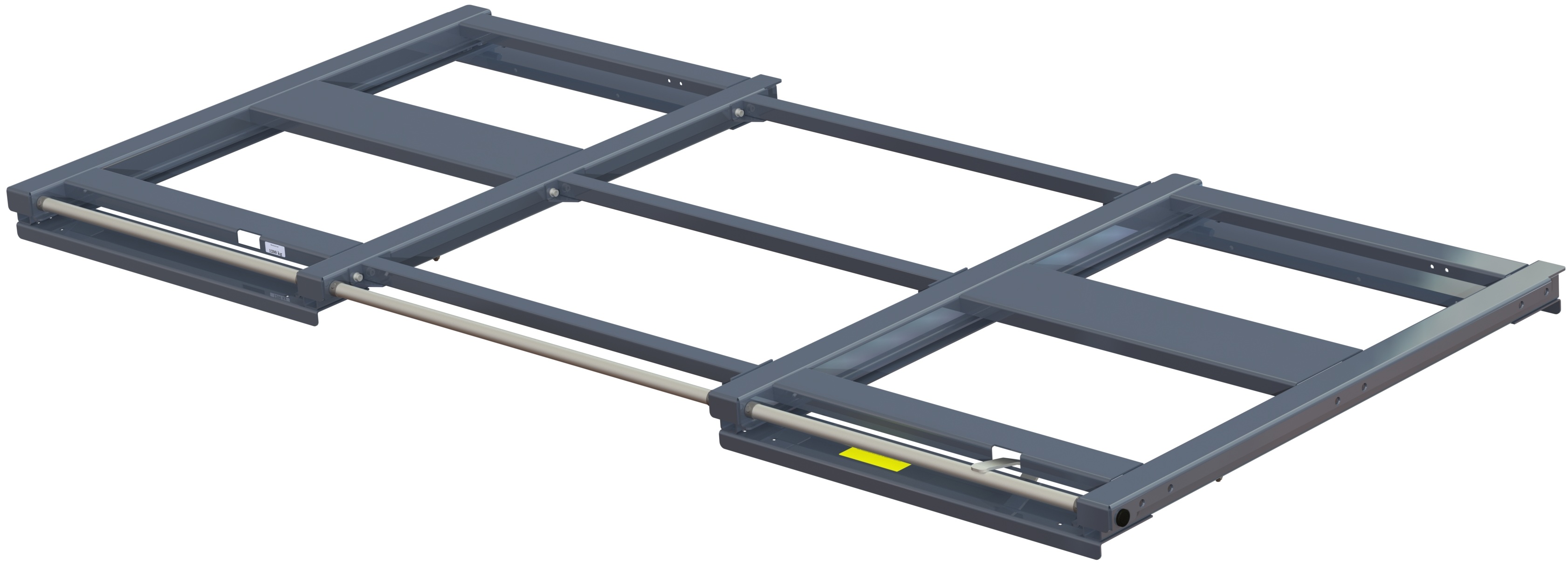

Wide beam-mounted pull-out units are suitable for storing items such as long goods and sheet material.
70% pull-out capacity and 1200 kg load capacity. Loading area is W=2600 mm D=1200 mm. Load from front or rear side and pick from front side. Mount the pull-out units in your regular pallet racking, and you have a cost-effective and practical storage module.
Product Features
WEIGHT CAPACITY
1200 kg
EXTENSION
70%
TYPE OF LOAD
Pipes | Rods | Sheet materials
LOAD METOD
Forklift | Overhead crane
LOADING
Front loaded
LOAD WAY
One-way
PICKING METHOD
By hand | Overhead crane
Technical Specification
DEPTH
1210 mm
WIDTH
2610 mm
HEIGHT
68 mm
LOADING DEPTH
1200 mm
LOADING WIDTH
2600 mm
LOADING HEIGHT
68 mm
RACK DEPTH
970 mm - 1170 mm
Weight and Volume
PRODUCT WEIGHT
81 kg
PALLET WEIGHT
511 kg
PALLET SIZE
125x90x145
QUANTITY ON PALLET
6 pcs
NUMBER OF PALLETS / TRAILER
25
Weight Capacity Support Beam
OBS! ONLY ONE UNIT PER SECTION MAY BE EXTRACTED AT A TIME!
WCSB 2 PALLETS
2110 kg
