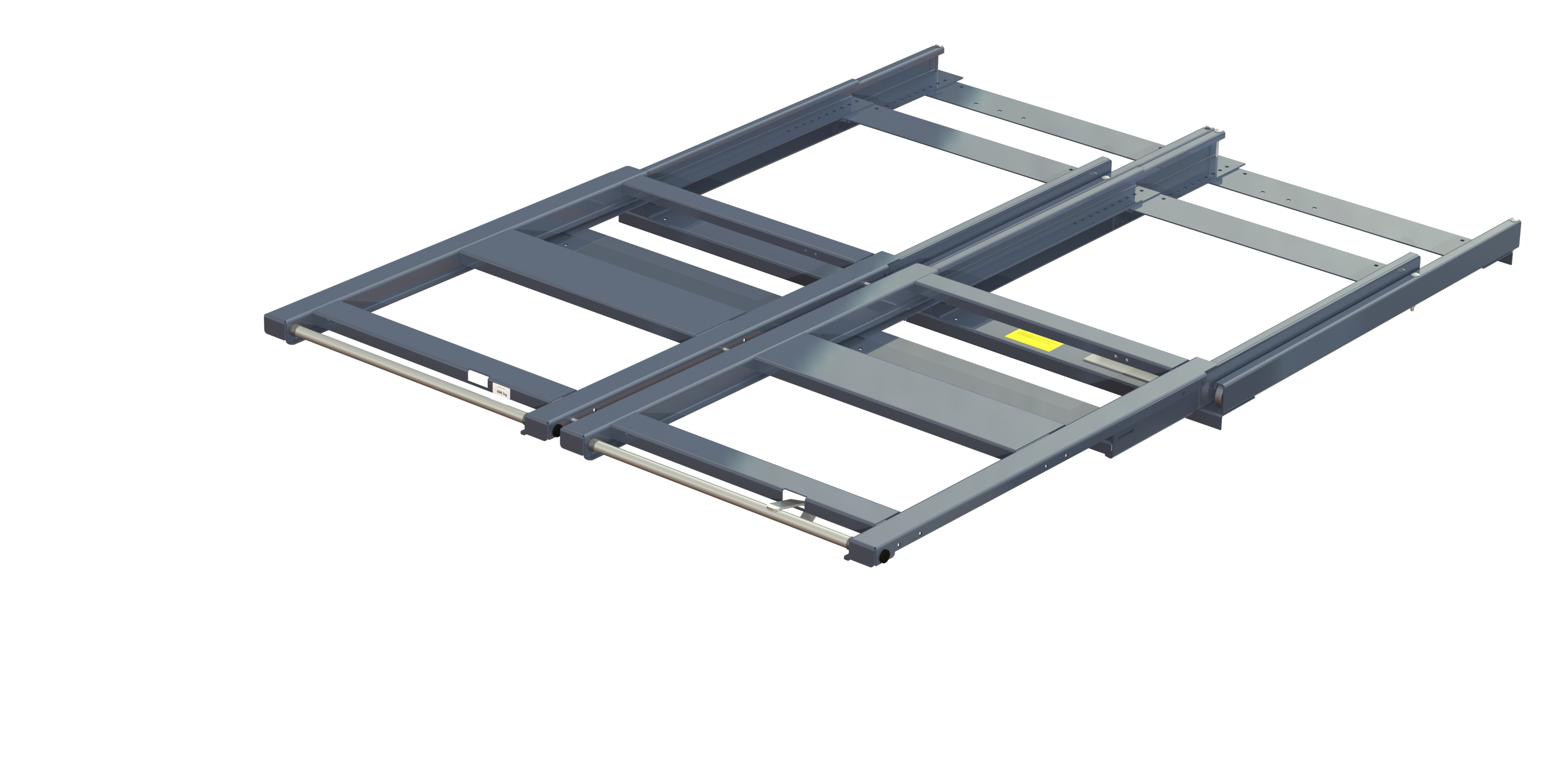

Wide beam-mounted pull-out unit 1200 kg 100% w=1700
Wide beam-mounted pull-out unit 1200 kg 100% w=1700 - image 2
Wide beam-mounted pull-out unit 1200 kg 100% w=1700 - image 3
Wide beam-mounted pull-out unit 1200 kg 100% w=1700 - image 4

Wide beam-mounted pull-out unit 1200 kg 100% W=1700

- +
Product added to cart
Article Number: 27 1217-1 Categories: ,

Description

Arrow

Wide beam-mounted pull-out units are suitable for storing items such as long goods and sheet material.
100% pull-out capacity and 1200 kg load capacity. Loading area is W=1700 mm D=1200 mm. Load from front or rear side and pick from front side. Mount the pull-out units in your regular pallet racking, and you have a cost-effective and practical storage module.

Product Features

Arrow
Extension Manual
100%
Handled Manual
Manual pull-out unit
Load metod Manual Manual
Forklift, Overhead crane
Load Way Manual
One-way
Loading Manual
Front loaded
Picking Method Manual Manual
By hand, Overhead crane
Type of load Manual Manual Manual
Pipes, Rods, Sheet materials
Weight capacity Manual
1200 kg

Technical Specifications

Arrow
Loading height
Manual
122 mm
Loading Width
Manual
1700 mm
Frame Colour
Manual
Blue, Grey, Special colour
Height
Manual
122 mm
Depth
Manual
1235 mm
Loading Depth
Manual
1200 mm
Rack Depth
Manual
970 mm - 1170 mm
Width
Manual
1750 mm

Weight and Volume

Arrow
Pallet Size
Manual
125x90x135
Number of pallets / Trailer
Manual
25
Quantity on pallet
Manual
3 pcs
Product Weight
Manual
134 kg
Pallet weight
Manual
427 kg

Weight Capacity Support Beam

Arrow
WCSB 2 pallets
Manual
2532 kg
