Upright mounted wide pull-out unit 600 kg 70% W=2700

- +
Product added to cart
Article Number: 15 2706-13 Categories: ,

Description

Arrow

Wide beam-mounted pull-out units are suitable for storing items such as long goods and sheet material.

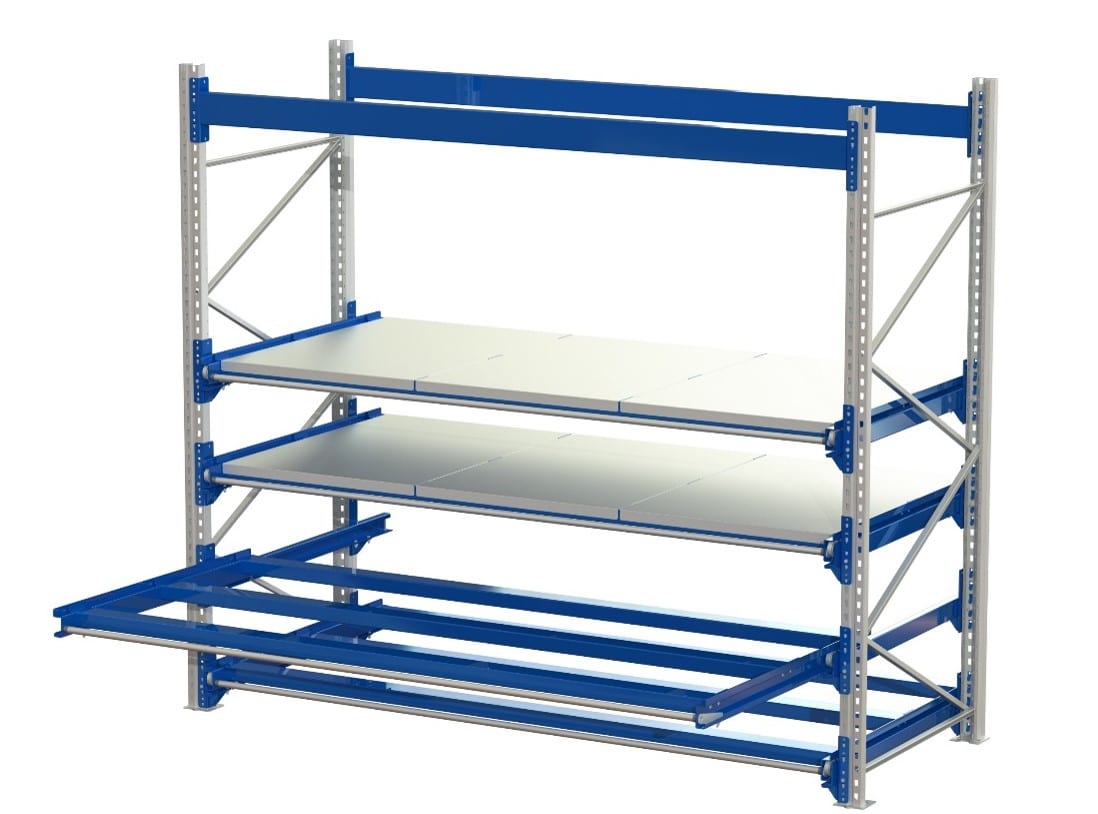

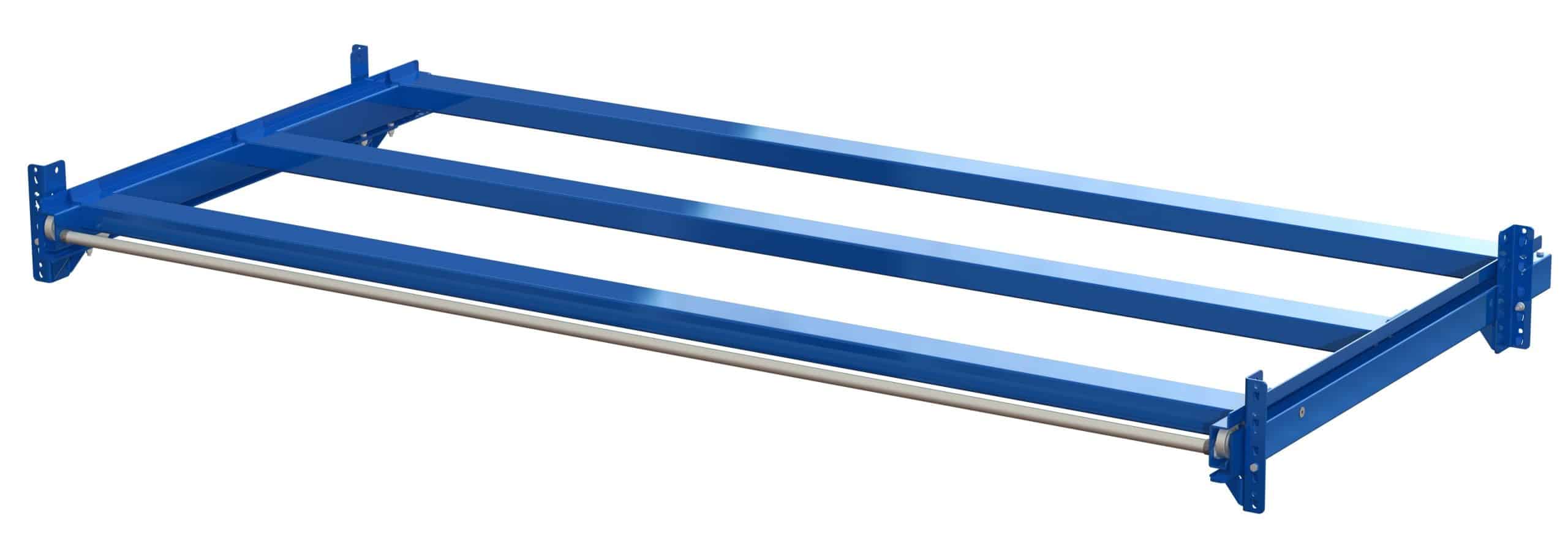

70% pull-out capacity and 600 kg load capacity. Loading area is W=2700 mm D=1300 mm. Load from front or rear side and pick from front side. Mount the pull-out units in your regular pallet racking, and you have a cost-effective and practical storage module. Upright-mounted pull-out units are directly attached to the uprights of the pallet racking system. The lower frame of the unit is bolted into the uprights, and the upper carmage slides out, carrying the load with it

Product Features

Arrow
Weight capacity Manual
600 kg
Type of load Manual Manual Manual
Pipes, Rods, Sheet materials
Picking Method Manual Manual
By hand, Overhead crane
Loading Manual
Front loaded
Load Way Manual
One-way
Load metod Manual Manual
Forklift, Overhead crane
Handled Manual
Manual pull-out unit
Extension Manual
70%

Technical Specifications

Arrow
Height
Manual
127 mm
Width
Manual
2688 mm
Rack Depth
Manual
1100 mm
Loading height
Manual
68 mm
Loading Depth
Manual
1300mm
Frame Colour
Manual
Blue, Grey, Special colour
Depth
Manual
1330 mm
Colour
Manual
Blue, Grey
Loading Width
Manual
2637 mm

Weight and Volume

Arrow
Quantity on pallet
Manual
10 pcs
Product Weight
Manual
90 kg
Pallet weight
Manual
900 kg
Pallet Size
Manual
125x90x145, 270x80x130
Number of pallets / Trailer
Manual
15
