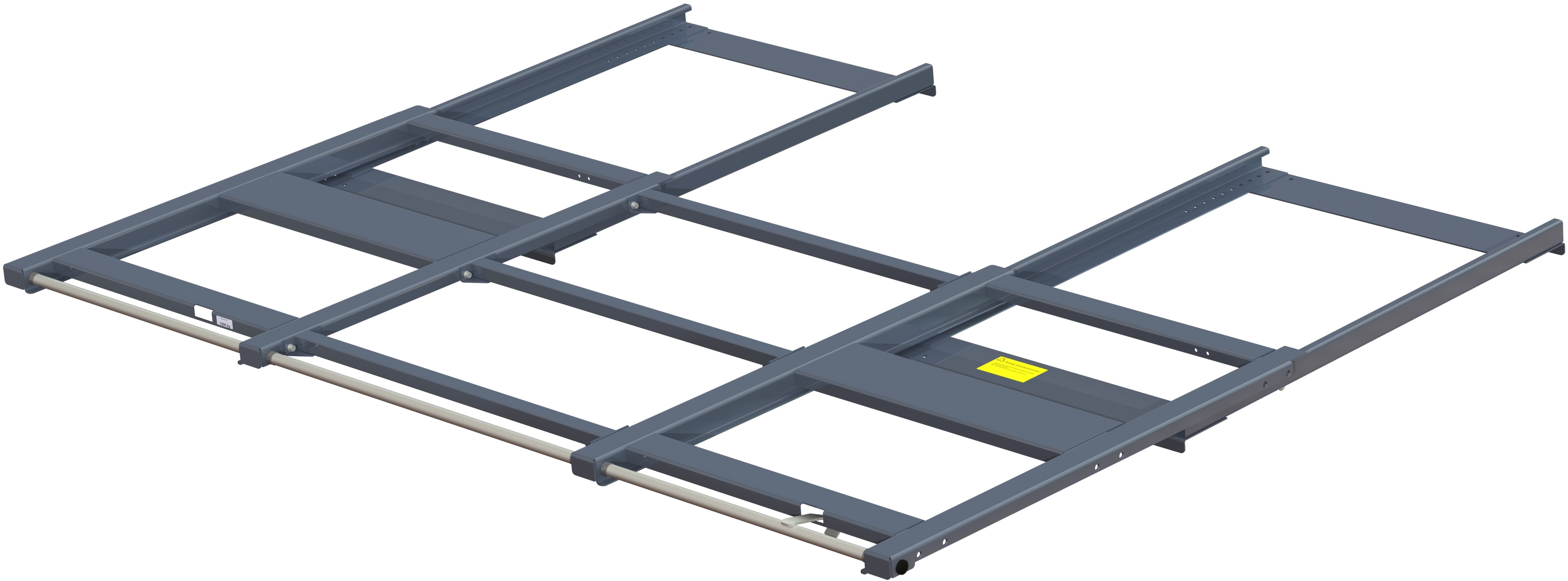

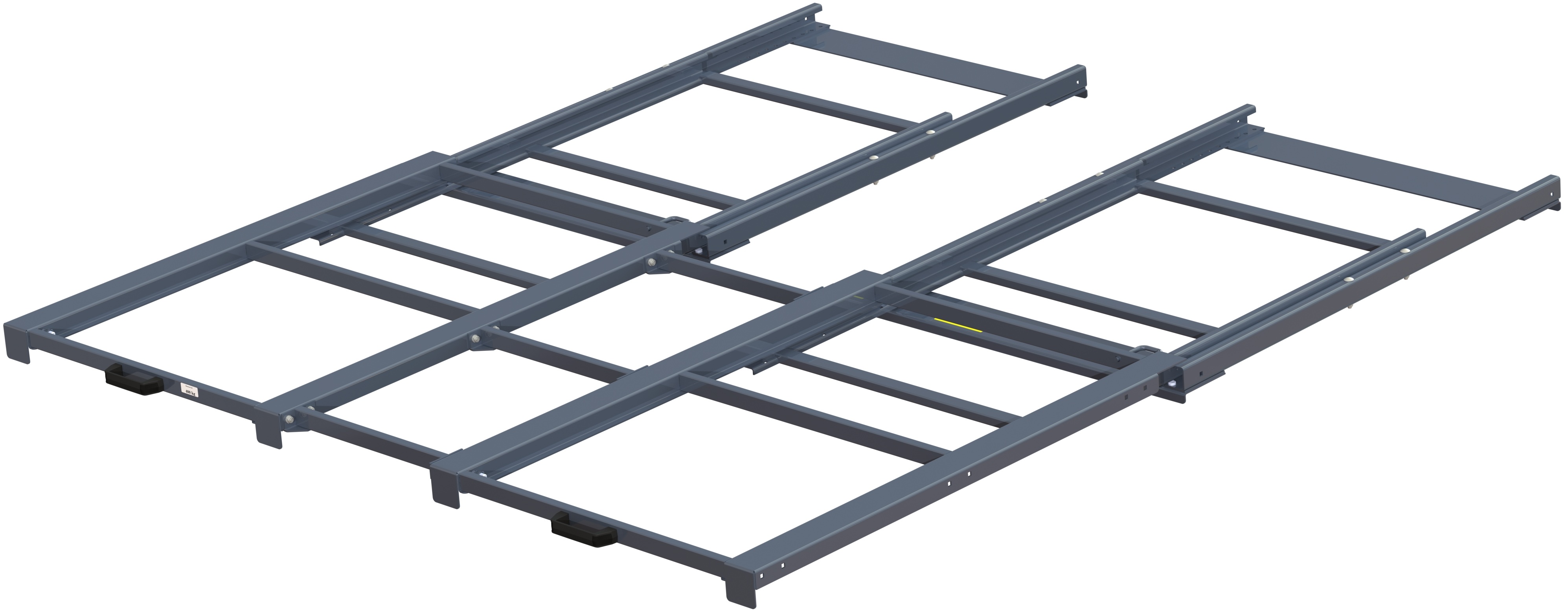

Upright-mounted wide pull-out unit 600 kg 70% w=1800

Upright-mounted wide pull-out unit 600 kg 70% w=1800 - image 2

Upright-mounted wide pull-out unit 600 kg 70% w=1800 - image 3

Upright-mounted Wide pull-out unit 600 kg 70% W=1800

Product added to cart

Article Number: 15 1806-13 Categories: Upright-mounted pull-out units, Wide pull-out units

Description

Wide beam-mounted pull-out units are suitable for storing items such as long goods and sheet material.
70% pull-out capacity and 600 kg load capacity. Loading area is W=1800 mm D=1300 mm. Load from front or rear side and pick from front side. Mount the pull-out units in your regular pallet racking, and you have a cost-effective and practical storage module. Upright-mounted pull-out units are directly attached to the uprights of the pallet racking system. The lower frame of the unit is bolted into the uprights, and the upper carmage slides out, carrying the load with it

Product Features

Weight capacity Manual

600 kg

Type of load Manual

Pipes, Rods, Sheet materials

Picking Method Manual

By hand, Overhead crane

Loading

Front loaded

Load Way

One-way

Load metod Manual

Forklift, Overhead crane

Handled

Manual pull-out unit

Extension

70%

Technical Specifications

Loading height

68 mm

Width

1788 mm

Section width

1800 mm

Rack Depth

1100 mm

Loading Depth

1300mm

Height

127 mm

Depth

1330 mm

Colour

Blue, Grey

Loading Width

1737 mm

Weight and Volume

Quantity on pallet

Manual

10 pcs

Product Weight

Manual

70 kg

Pallet weight

Manual

700 kg

Pallet Size

Manual

180x80x130
