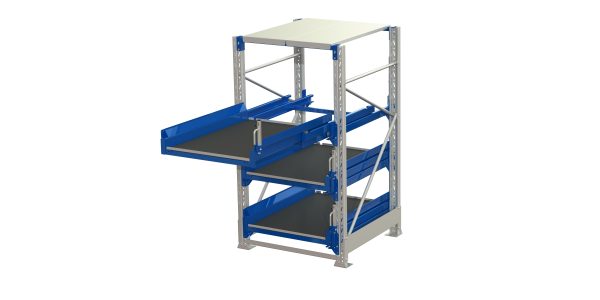

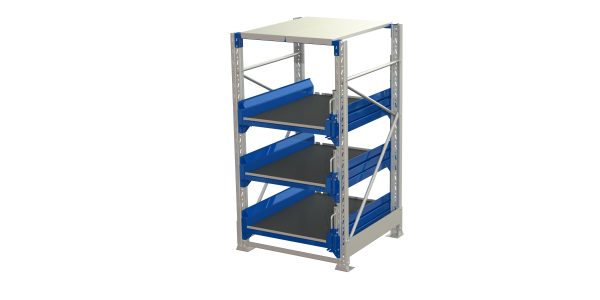

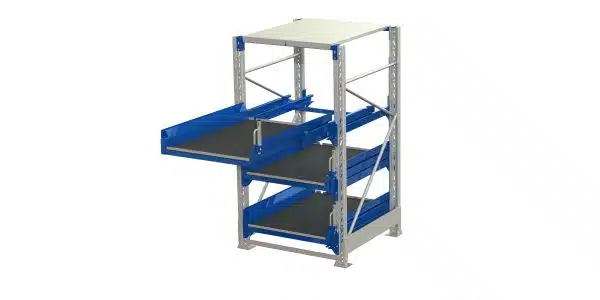

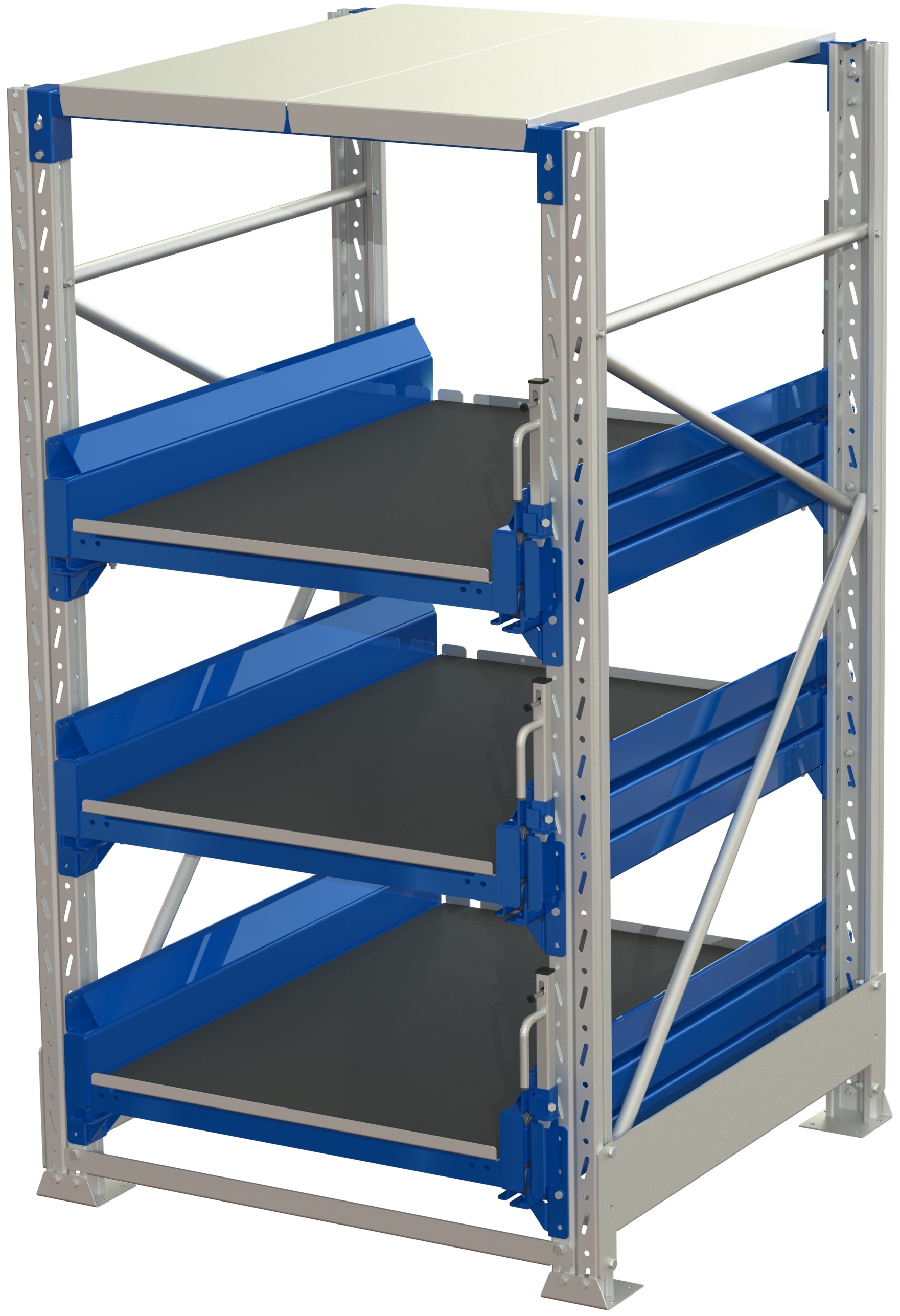

Tool Storage Unit(TSU), 3 shelves, 600kg 100% extendable, with tip cover lock

- +
Product added to cart
Article Number: 19 123-1 Categories: ,
Arrow

Description

Arrow

Front-loaded, short-side handled. For manual handling or overhead crane. Steel panel and rubber mat for each shelf. Standard
colours: blue frame and grey shelves. Optional shelf lock which prevents more than one shelf being pulled out at once.

If you operate production processes involving the use of heavy tools, dies and moulds, you have a storage problem. These are not easy items to handle, and yet their ready availability is crucial to everyday operations. The TSU (Tool Storage Unit) is an efficient and safe solution for handling tools and heavy machine parts. Often combined with an overhead crane so tools safely can be moved to a trolley or directly to the production machinery. Stop moving expensive and easy-to-damage tools around on pallets with a fork lift!
The TSU is delivered fully assembled. All shelves are equipped with a steel shelf panel to accept high point loads and a rubber mat to
keep the tools in place.

Arrow

Product Features

Arrow
TYPE OF LOAD Manual
Tools, molds and heavy components
LOADING Manual
Front loaded
SHORT OR LONG SIDE HANDLED Manual
Short side handled
WEIGHT CAPACITY Manual
600 kg
EXTENSION Manual
100%
LOAD WAY Manual
One-way
NUMBER OF SHELVES Manual
3 Shelves
SHELF LOCK Manual
Yes
LOAD METHOD Manual
Overhead crane
PICKING METHOD ManualManual
By hand | Overhead crane
Arrow

Technical Specification

Arrow
WIDTH
Manual
1170 mm
LOADING WIDTH
Manual
827 mm
DEPTH
Manual
1328 mm
LOADING DEPTH
Manual
1226 mm
HEIGHT
Manual
1707 mm
Arrow

Weight and Volume

Arrow
PRODUCT WEIGHT
Manual
388 kg
QUANTITY ON PALLET
Manual
1 pcs
PALLET WEIGHT
Manual
406 kg
PALLET SIZE
Manual
138x117x190
NUMBER OF PALLETS /TRAILER
Manual
21
