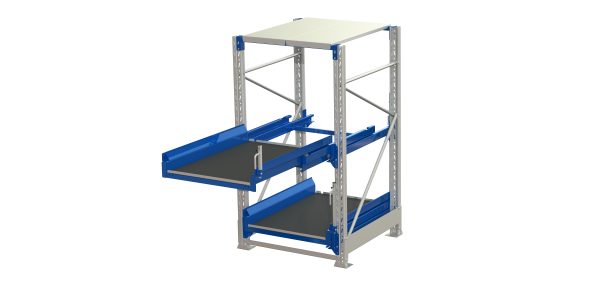

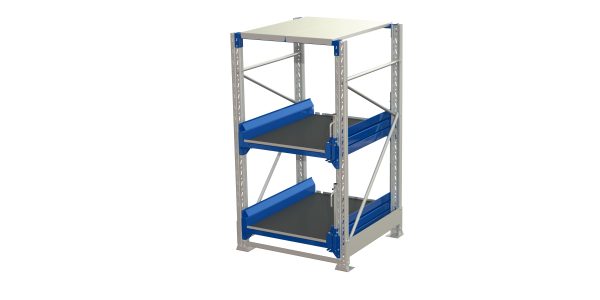

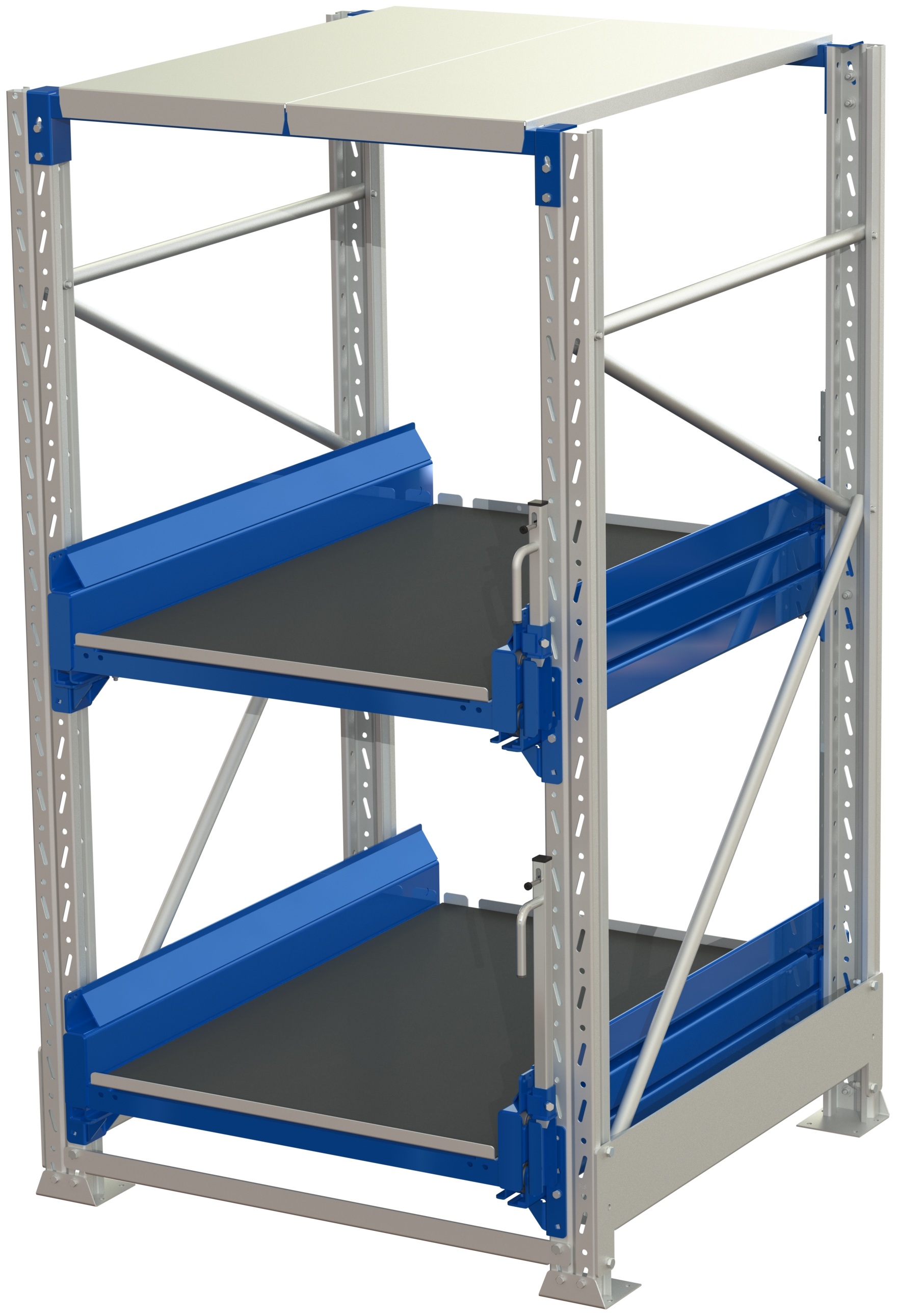

Tool Storage Unit(TSU), 2 shelves, 600kg 100% extendable

- +
Product added to cart
Article Number: 19 122-0 Categories: ,

Description

Arrow

Front-loaded, short-side handled. For manual handling or overhead crane. Steel panel and rubber mat for each shelf. Standard
colours: blue frame and grey shelves. Optional shelf lock which prevents more than one shelf being pulled out at once.

If you operate production processes involving the use of heavy tools, dies and moulds, you have a storage problem. These are not easy items to handle, and yet their ready availability is crucial to everyday operations. The TSU (Tool Storage Unit) is an efficient and safe solution for handling tools and heavy machine parts. Often combined with an overhead crane so tools safely can be moved to a trolley or directly to the production machinery. Stop moving expensive and easy-to-damage tools around on pallets with a fork lift!
The TSU is delivered fully assembled. All shelves are equipped with a steel shelf panel to accept high point loads and a rubber mat to
keep the tools in place.

Product Features

Arrow
Picking Method Manual Manual
By hand, Overhead crane
Weight capacity Manual
600 kg
Type of load Manual
Tools, molds and heavy components
Short or long side handled Manual
Short side handled
Loading Manual
Front loaded
Load Way Manual
One-way
Load metod Manual
Overhead crane
Handled Manual
Manual pull-out unit
Extension Manual
100%

Technical Specifications

Arrow
Width
Manual
1170 mm
Shelf lock
Manual
No
Number of shelves
Manual
2 Shelves
Loading Width
Manual
834 mm
Loading Depth
Manual
1226 mm
Height
Manual
2007-mm
Frame Colour
Manual
Blue frame, grey shelves, Special colour
Depth
Manual
1300 mm

Weight and Volume

Arrow
Quantity on pallet
Manual
1 pcs
Product Weight
Manual
310 kg
Pallet weight
Manual
340 kg
Pallet Size
Manual
138x117x216
Number of pallets / Trailer
Manual
21
