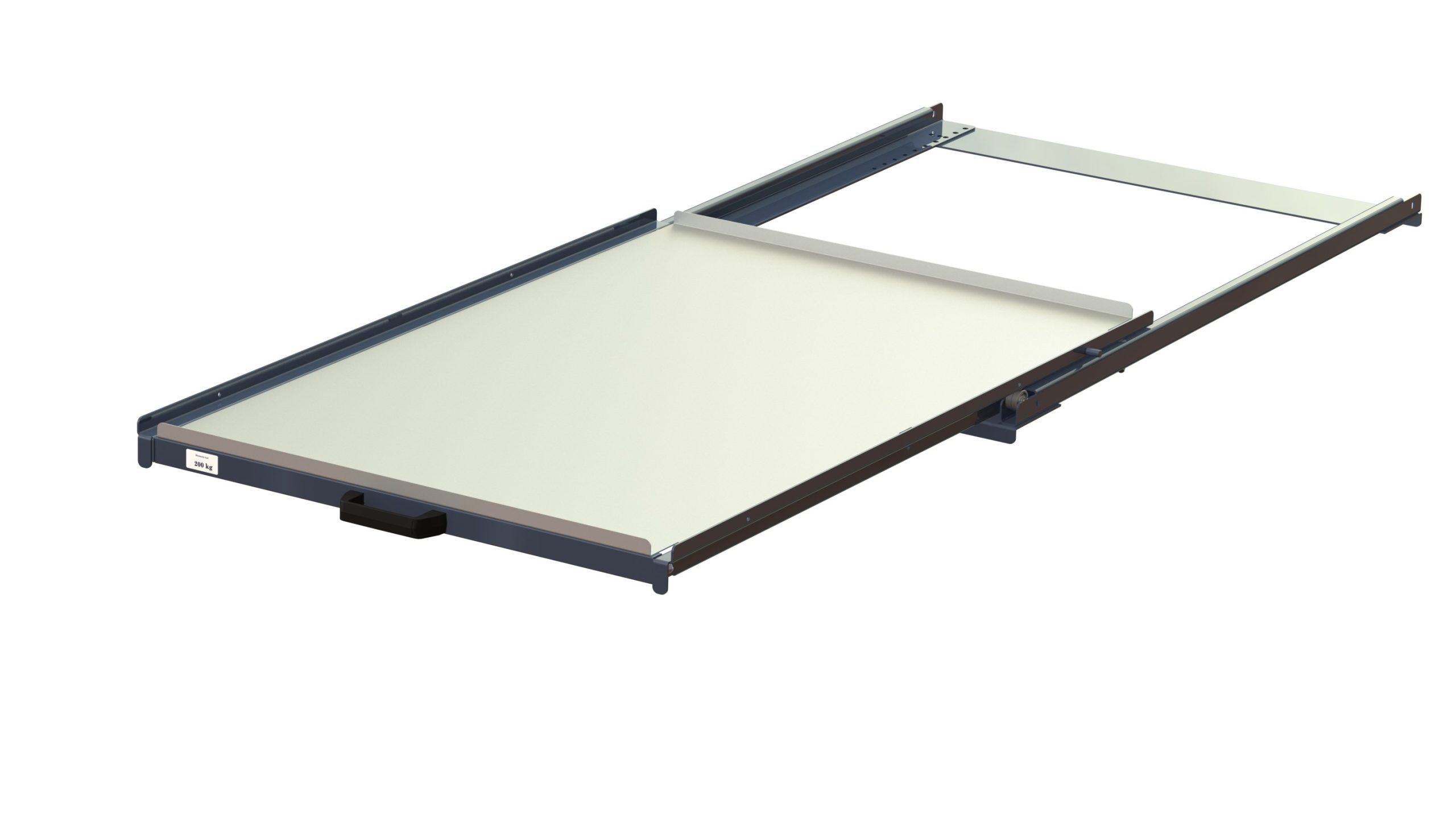

Pull-out unit with steel shelf panel. 70% extension, 200 kg load capacity, W=800 D=1200

Beam-mounted Pull-out unit with steel shelf panel for storing plastic bins, cartons, or small parts with help of frames and dividers. 70% extension and 200 kg load capacity. Loading area is W=800 mm D=1200 mm. Load and pick from Front side. Short-side handled.

- +
Product added to cart
Article Number: 11 201-0 Categories: ,
Arrow

Description

Arrow

The loading surface consists of a galvanized steel sheet with raised edges, perfect for Euro crates, boxes, tools etc. Plastic bins and cartons may be loaded directly onto the units. Being able to pull the units out of the rack allows for safe and easy access to stored items!
Beam-mounted pull-out units are mounted on the cross-beams between the pallet racking uprights. The lower frame of the pull-out unit is bolted to the beams and the upper frame and run smoothly with bearings.
Unit locks when pushed back into the rack.
Easy to install – simply secure to the cross-beams using 4 bolts.
Fitting double ball bearings at the front gives lower profiles and means that our pull-out units run smoothly, even with high load factors.
Beam-mounted units are compatible with almost any type of pallet racking on the market. They can be fitted to your existing beams.

Arrow

Product Features

Arrow
TYPE OF LOAD ManualManual
Bins & boxes | Frame & dividers
LOADING Manual
Front loaded
SHORT OR LONG SIDE HANDLED Manual
Short side handled
WEIGHT CAPACITY Manual
200 kg
EXTENSION Manual
70%
LOAD WAY Manual
One-way
LOAD METHOD ManualManual
By hand | Overhead crane
PICKING METHOD ManualManual
By hand | Overhead crane
Arrow

Technical Specification

Arrow
WIDTH
Manual
835 mm
LOADING WIDTH
Manual
804 mm
DEPTH
Manual
1261 mm
LOADING DEPTH
Manual
1206 mm
LOADING HEIGHT
Manual
51 mm
HEIGHT
Manual
65 mm
RACK DEPTH
Manual
970 mm - 1170 mm
Arrow

Weight and Volume

Arrow
PRODUCT WEIGHT
Manual
28 kg
QUANTITY ON PALLET
Manual
12 pcs
PALLET WEIGHT
Manual
361 kg
PALLET SIZE
Manual
125x85x110
NUMBER OF PALLETS /TRAILER
Manual
25
Arrow

Weight Capacity Support Beam

Arrow
OBS! ONLY ONE UNIT PER SECTION MAY BE EXTRACTED AT A TIME!
1 PALLET
Manual
512 kg
2 PALLET
Manual
744 kg
3 PALLET
Manual
976 kg
