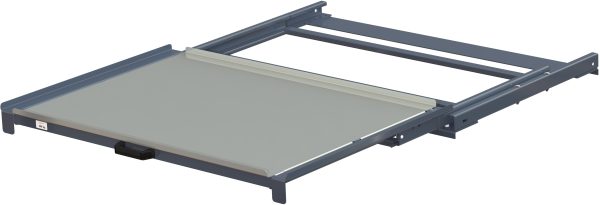

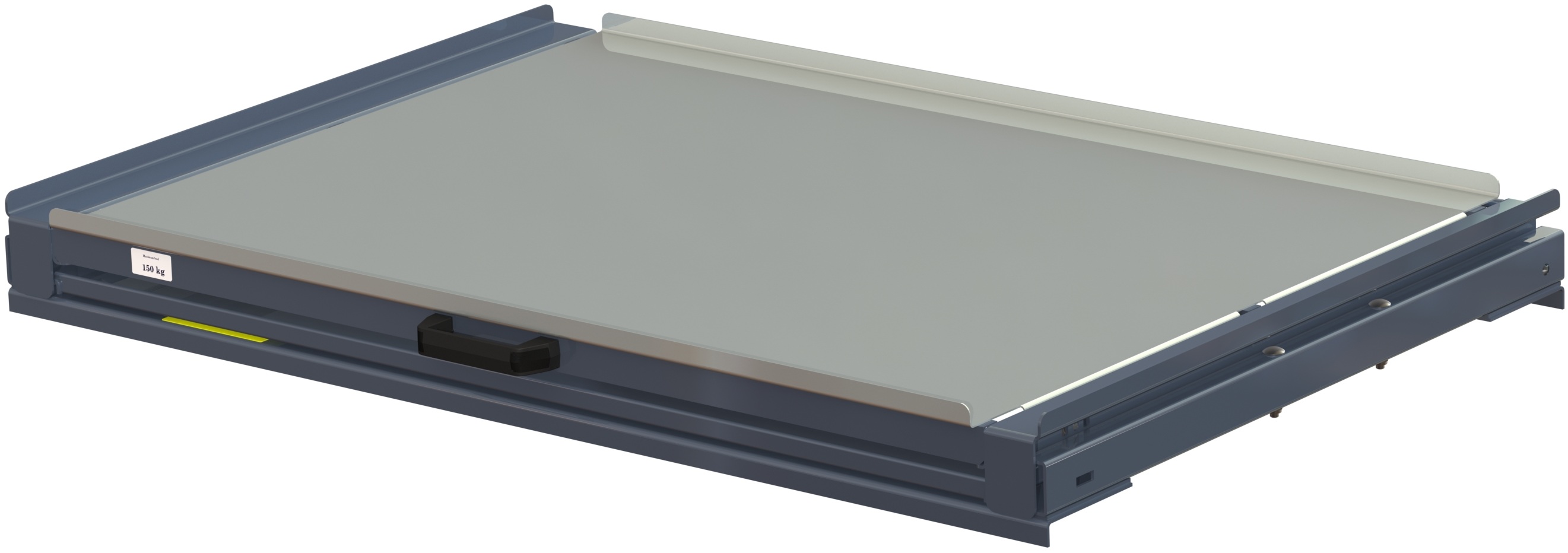

Pull-out unit with steel shelf panel. 100% extension, 200 kg load capacity, W=1200 D=800
Beam-mounted pull-out unit with steel shelf panel for storing plastic bins, cartons, or small parts with help of frames and dividers. 100% extension and 200 kg load capacity. Loading area is W=1200 mm D=800 mm. Load and pick from Front side. Long-side handled.
Description
The loading surface consists of a galvanized steel sheet with raised edges, perfect for Euro crates, boxes, tools etc. Plastic bins and cartons may be loaded directly onto the units. Being able to pull the units out of the rack allows for safe and easy access to stored items!
Beam-mounted pull-out units are mounted on the cross-beams between the pallet racking uprights. The lower frame of the pull-out unit is bolted to the beams and the upper frame and run smoothly with bearings.
Unit locks when pushed back into the rack.
Easy to install – simply secure to the cross-beams using 4 bolts.
Fitting double ball bearings at the front gives lower profiles and means that our pull-out units run smoothly, even with high load factors.
Beam-mounted units are compatible with almost any type of pallet racking on the market. They can be fitted to your existing beams.
Product Features
Technical Specifications
Weight and Volume
Weight Capacity Support Beam
Minimum Quantity Needed :
