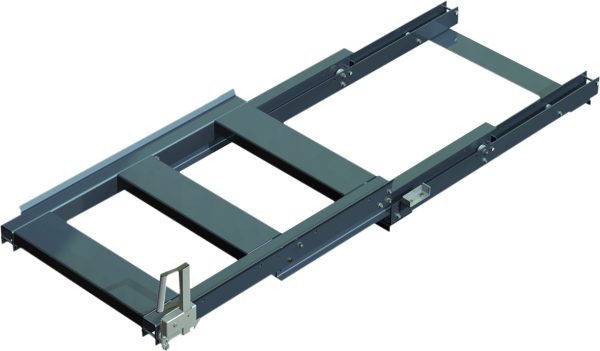

11 1008-1 Pull-out unit for pallet rack with 100% extension ,1000 kg load capacity, Rear-loaded, short-side handled FIN-pallet

- +
Product added to cart
ART No: 11 1008-1 Categories: ,
Arrow

Description

Arrow

Beam-mounted (BM) units are mounted on the cross-beams between
the pallet racking uprights. The lower frame of the pull-out unit is
bolted to the beams and the upper frame slides out carrying the
pallet with it.
Pallets may be loaded directly onto the units, but other options allow
for storage on open shelving, in plastic bins and in cartons. Being able
to pull the units out of the rack allows for safe and easy access to
stored items!
BM units are available in a range of capacities up to 1500kg and in
a variety of formats to suit your requirements. They can cater for
all pallet sizes and types (wood, steel, plastic), front or rear loading
at the pallet rack, short or long-side handling, as well as for pallet
collars with dividers, containers, bins and loose storage. The base
frame BM unit is for pallets.

Arrow

Product Features

Arrow
WEIGHT CAPACITY Manual
1000 kg
EXTENSION Manual
100%
LOAD METHOD ManualManual
Forklift | Overhead crane
TYPE OF LOAD Manual
FIN-/ CHEP-pallet
LOADING Manual
Rear loaded
LOAD WAY Manual
One-way
PICKING METHOD ManualManual
By hand | Overhead crane
SHORT OR LONG SIDE HANDLED Manual
Long side handled
Arrow

Technical Specification

Arrow
LOADING WIDTH
Manual
1235 mm
LOADING DEPTH
Manual
1020 mm
HEIGHT
Manual
174 mm
RACK DEPTH
Manual
850 mm - 1050 mm
WIDTH
Manual
1265 mm
DEPTH
Manual
1090 mm
LOADING HEIGHT
Manual
147 mm
