Pull-out unit for pallet rack with 70% extension two-way ,600 kg load capacity, Two way loaded, short-side handled FIN-pallet

- +
Product added to cart
Article Number: 11 603-2 Categories: ,

Description

Arrow

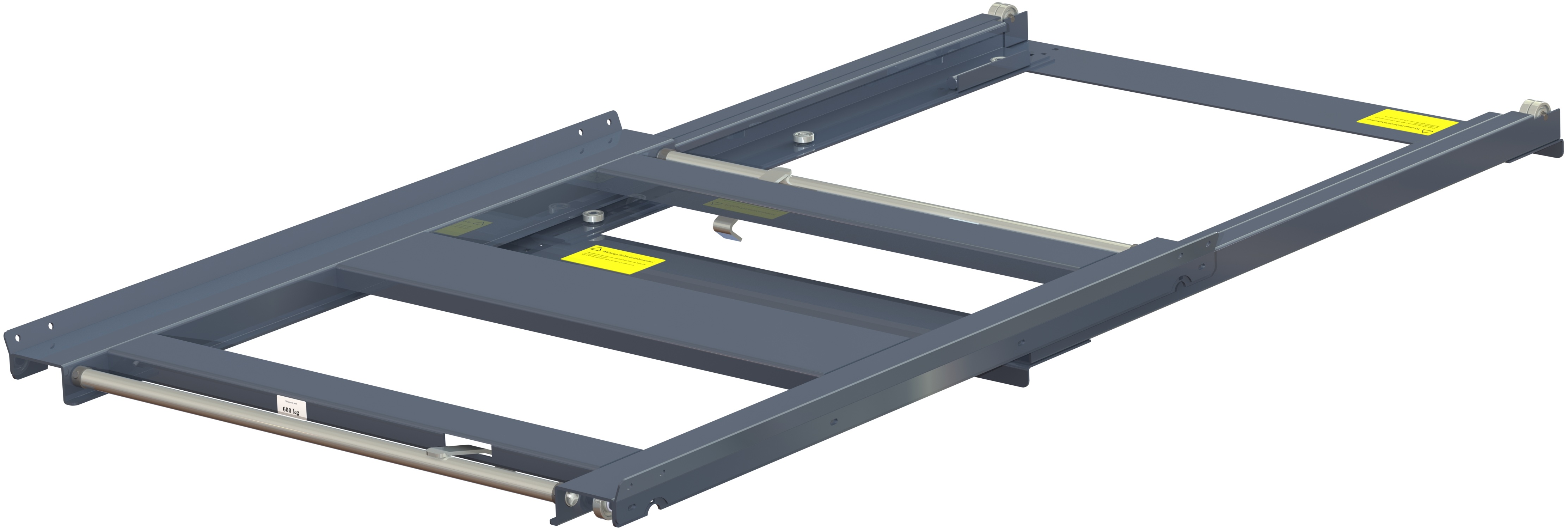

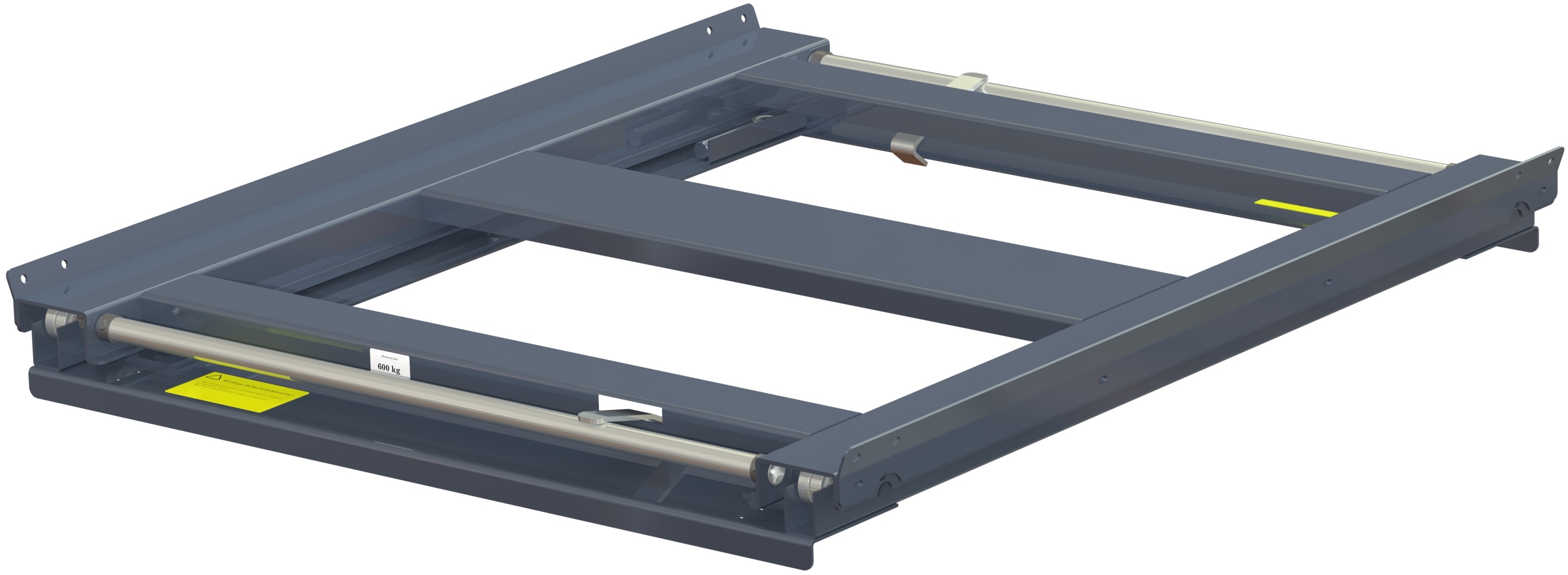

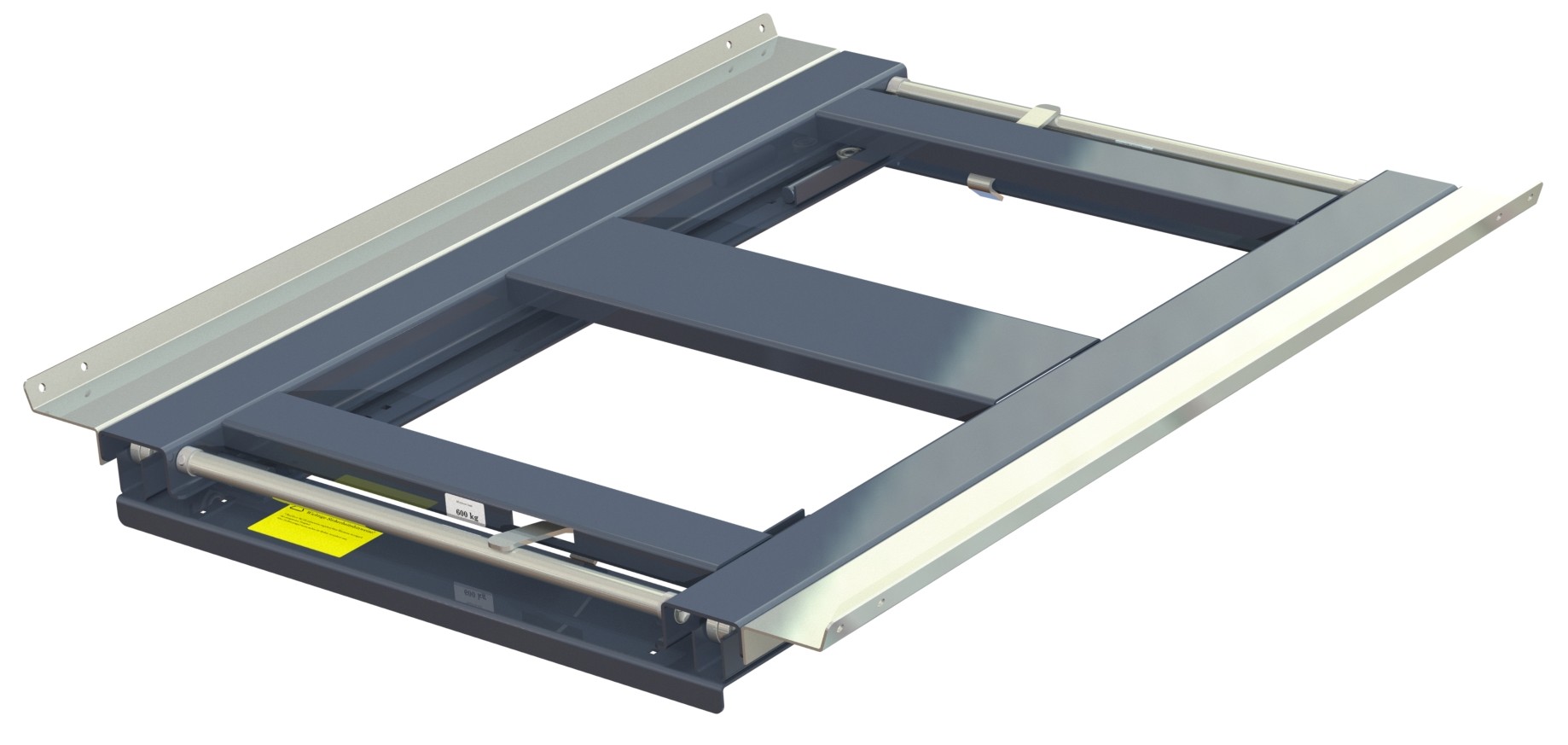

Beam-mounted (BM) units are mounted on the cross-beams between
the pallet racking uprights. The lower frame of the pull-out unit is
bolted to the beams and the upper frame slides out carrying the
pallet with it.
Pallets may be loaded directly onto the units, but other options allow
for storage on open shelving, in plastic bins and in cartons. Being able
to pull the units out of the rack allows for safe and easy access to
stored items!
BM units are available in a range of capacities up to 1500kg and in
a variety of formats to suit your requirements. They can cater for
all pallet sizes and types (wood, steel, plastic), front or rear loading
at the pallet rack, short or long-side handling, as well as for pallet
collars with dividers, containers, bins and loose storage. The base
frame BM unit is for pallets.

Product Features

Arrow
Picking Method Manual Manual
By hand, Overhead crane
Short or long side handled Manual
Short side handled
Type of load Manual
FIN-/ CHEP-pallet
Weight capacity Manual
600 kg
Load Way Manual
Two-way
Loading Manual
Two-way loaded
Load metod Manual Manual Manual
Forklift, Overhead crane, Pallet stacker
Handled Manual
Manual pull-out unit
Extension Manual
Two-way 2x70%

Technical Specifications

Arrow
Loading Depth
Manual
1200 mm
Rack Depth
Manual
1100 mm - 1160 mm
Width
Manual
1040 mm
Loading height
Manual
69 mm
Loading Width
Manual
1026 mm
Height
Manual
97 mm
Frame Colour
Manual
Blue, Grey, Special colour
Depth
Manual
1216 mm

Weight and Volume

Arrow
Pallet weight
Manual
555 kg
Product Weight
Manual
44 kg
Quantity on pallet
Manual
12 pcs
Number of pallets / Trailer
Manual
22
Pallet Size
Manual
125x110x140

Weight Capacity Support Beam

Arrow
WCSB 1 pallet
Manual
1475 kg
WCSB 2 pallets
Manual
2110 kg
WCSB 3 pallets
Manual
2745 kg
