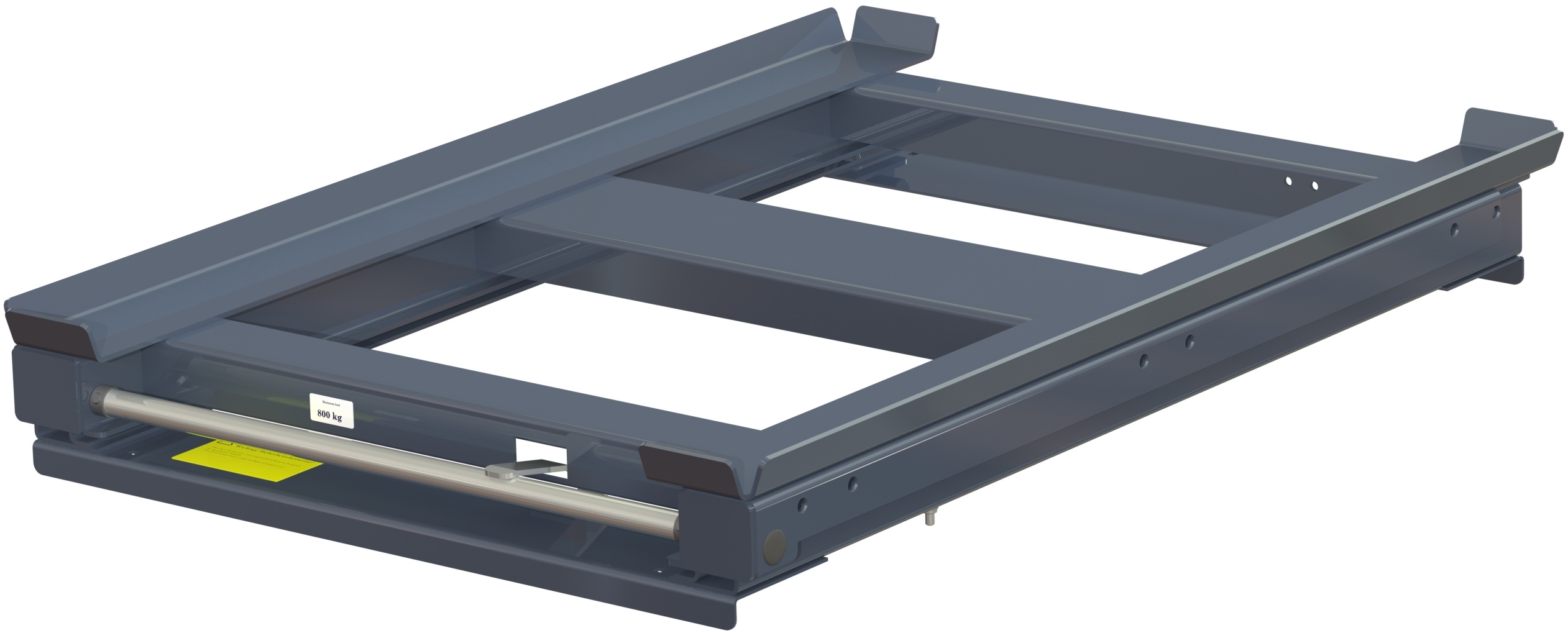

Beam-mounted pull-out unit 70%, 800 kg, Short-side handled, Rear-loaded, for wire mesh containers

- +
Product added to cart
Article Number: 11 810-0 Categories: ,

Description

Arrow

The Beam-mounted pull-out unit with 800 kg load capacity is designed for wire mesh containers with high point loads. Reinforced with durable side profiles and edges, it ensures stability and safety during storage. This unit is short-side handled and rear-loaded, making it ideal when containers are loaded from one side of the pallet rack, while goods are picked manually from the opposite side – for example in a traffic-free workspace.

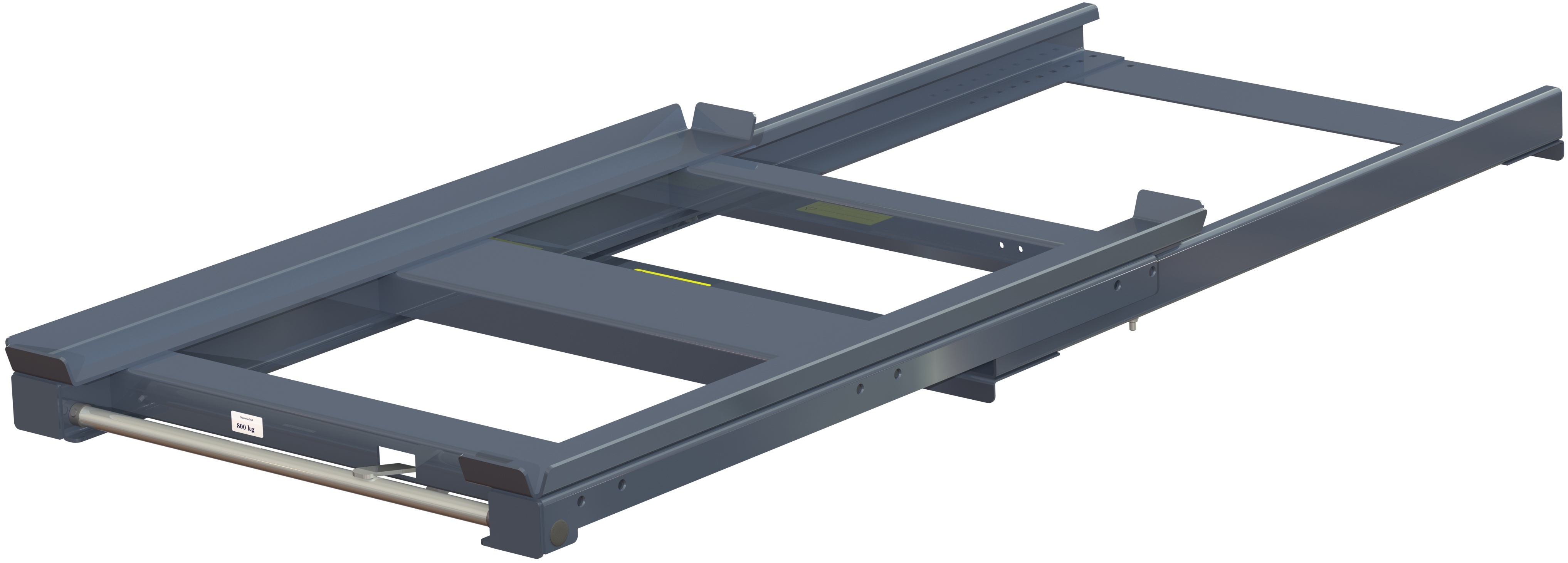

With a 70% pull-out capacity, the unit creates an ergonomic and time-saving workflow. By extending the unit 70%, you gain an opening of 840 mm for safe and efficient picking. It is tailored for containers with a depth of 1200 mm and width of 800 mm, short side forward

Product Features

Arrow
Picking Method Manual Manual
By hand, Overhead crane
Short or long side handled Manual
Short side handled
Type of load Manual
Gitterbox
Weight capacity Manual
800 kg
Load metod Manual Manual Manual
Forklift, Overhead crane, Pallet stacker
Loading Manual
Rear loaded
Load Way Manual
One-way
Extension Manual
70%
Handled Manual
Manual pull-out unit

Technical Specifications

Arrow
Rack Depth
Manual
970 mm - 1170 mm
Loading Width
Manual
825 mm
Loading height
Manual
91 mm
Loading Depth
Manual
1225 mm
Height
Manual
119 mm
Frame Colour
Manual
Blue, Grey, Special colour
Depth
Manual
1266 mm
Width
Manual
866 mm

Weight and Volume

Arrow
Pallet weight
Manual
593 kg
Product Weight
Manual
71 kg
Quantity on pallet
Manual
8 pcs
Pallet Size
Manual
130x95x125
Number of pallets / Trailer
Manual
25

Weight Capacity Support Beam

Arrow
WCSB 1 pallet
Manual
1973 kg
WCSB 2 pallets
Manual
2826 kg
WCSB 3 pallets
Manual
3679 kg
