Pull-out unit for pallet rack with 70% extension ,800 kg load capacity, Rear-loaded, short-side handled EUR-pallet

- +
Product added to cart
Article Number: 11 802-0 Categories: ,

Description

Arrow

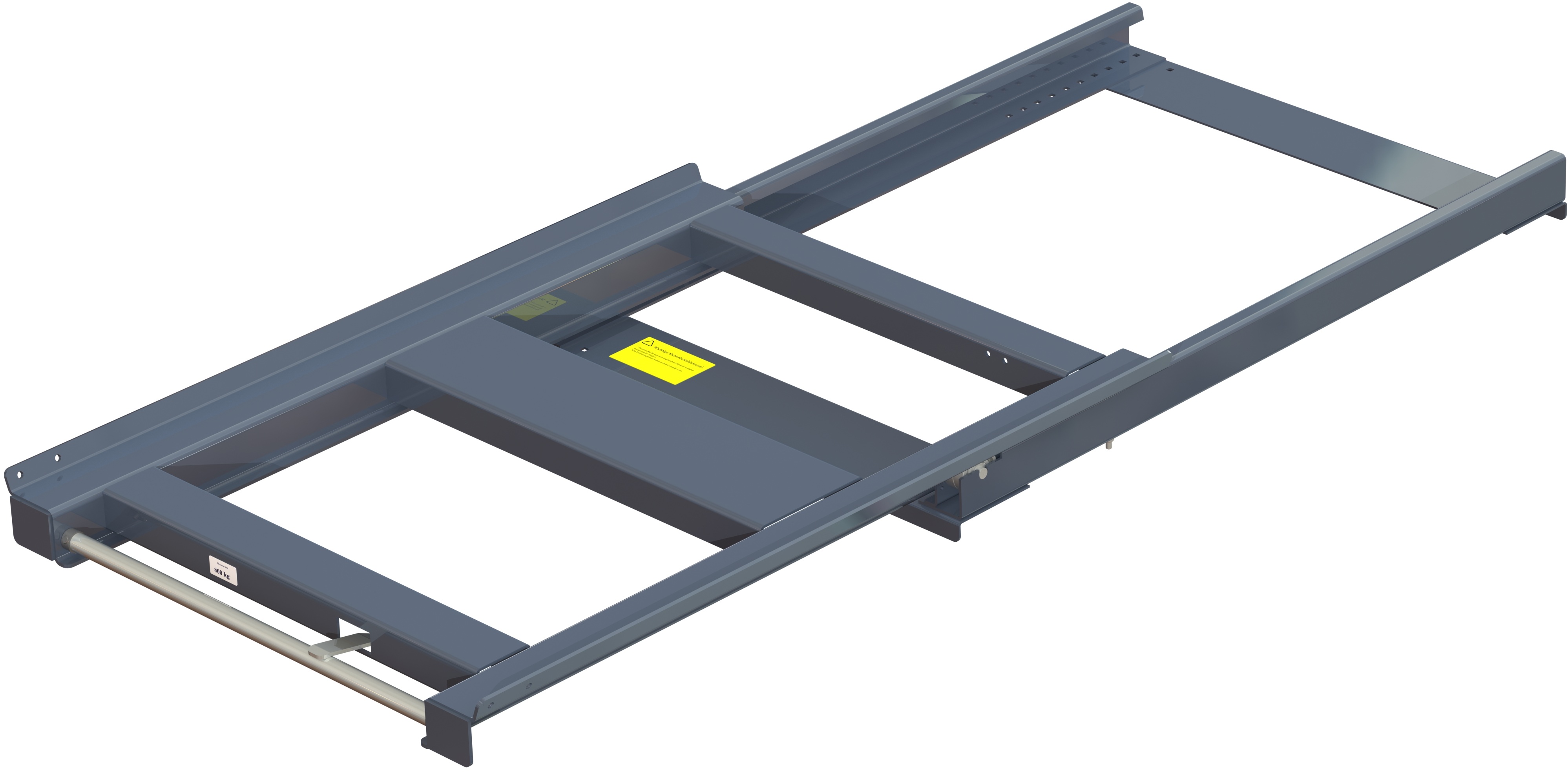

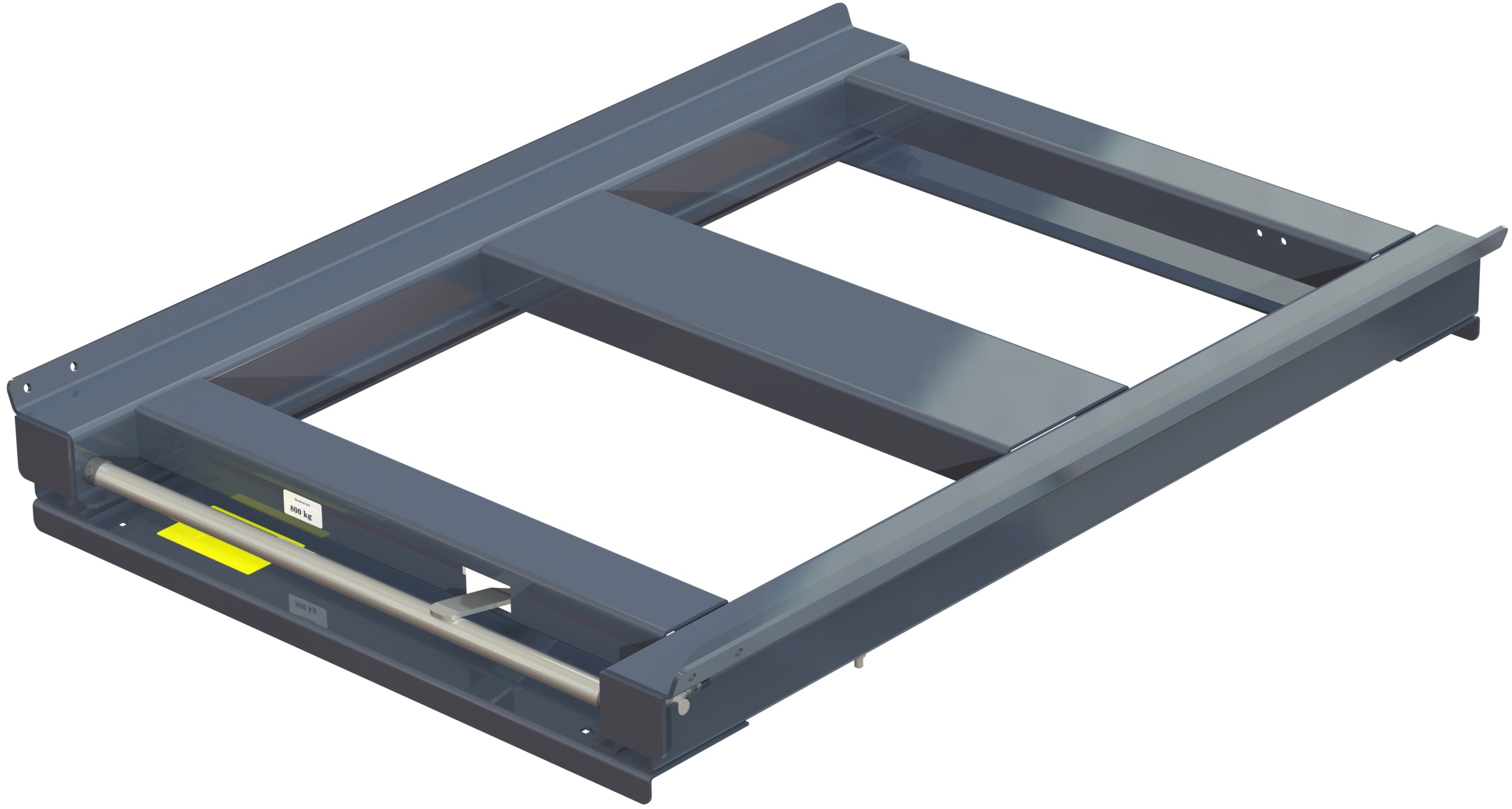

Beam-mounted (BM) units are mounted on the cross-beams between
the pallet racking uprights. The lower frame of the pull-out unit is
bolted to the beams and the upper frame slides out carrying the
pallet with it.
Pallets may be loaded directly onto the units, but other options allow
for storage on open shelving, in plastic bins and in cartons. Being able
to pull the units out of the rack allows for safe and easy access to
stored items!
BM units are available in a range of capacities up to 1500kg and in
a variety of formats to suit your requirements. They can cater for
all pallet sizes and types (wood, steel, plastic), front or rear loading
at the pallet rack, short or long-side handling, as well as for pallet
collars with dividers, containers, bins and loose storage. The base
frame BM unit is for pallets.

Product Features

Arrow
Weight capacity Manual
800 kg
Type of load Manual
EUR-pallet
Short or long side handled Manual
Short side handled
Picking Method Manual Manual
By hand, Overhead crane
Load metod Manual Manual Manual
Forklift, Overhead crane, Pallet stacker
Loading Manual
Rear loaded
Load Way Manual
One-way
Extension Manual
70%
Handled Manual
Manual pull-out unit

Technical Specifications

Arrow
Rack Depth
Manual
970 mm - 1170 mm
Width
Manual
869 mm
Loading Width
Manual
834 mm
Loading height
Manual
91 mm
Loading Depth
Manual
1204 mm
Height
Manual
118 mm
Frame Colour
Manual
Blue, Grey, Special colour
Depth
Manual
1210 mm

Weight and Volume

Arrow
Quantity on pallet
Manual
8 pcs
Product Weight
Manual
55 kg
Pallet weight
Manual
681 kg
Pallet Size
Manual
125x90x120
Number of pallets / Trailer
Manual
25

Weight Capacity Support Beam

Arrow
WCSB 3 pallets
Manual
3679 kg
WCSB 2 pallets
Manual
2826 kg
WCSB 1 pallet
Manual
1973 kg
