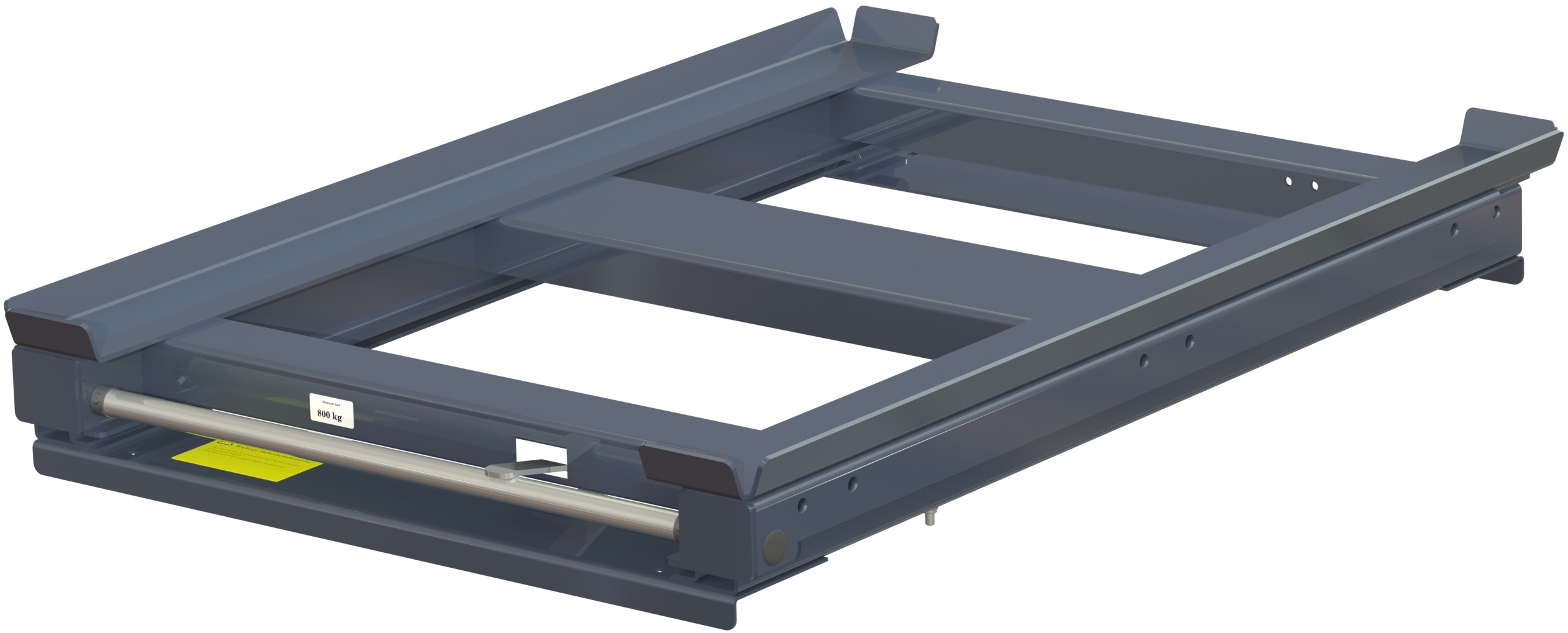

Pull-out unit for pallet rack with 70% extension ,800 kg load capacity, Front-loaded, short-side handled HMU

- +
Product added to cart
Article Number: 11 809-0 Categories: ,

Description

Arrow

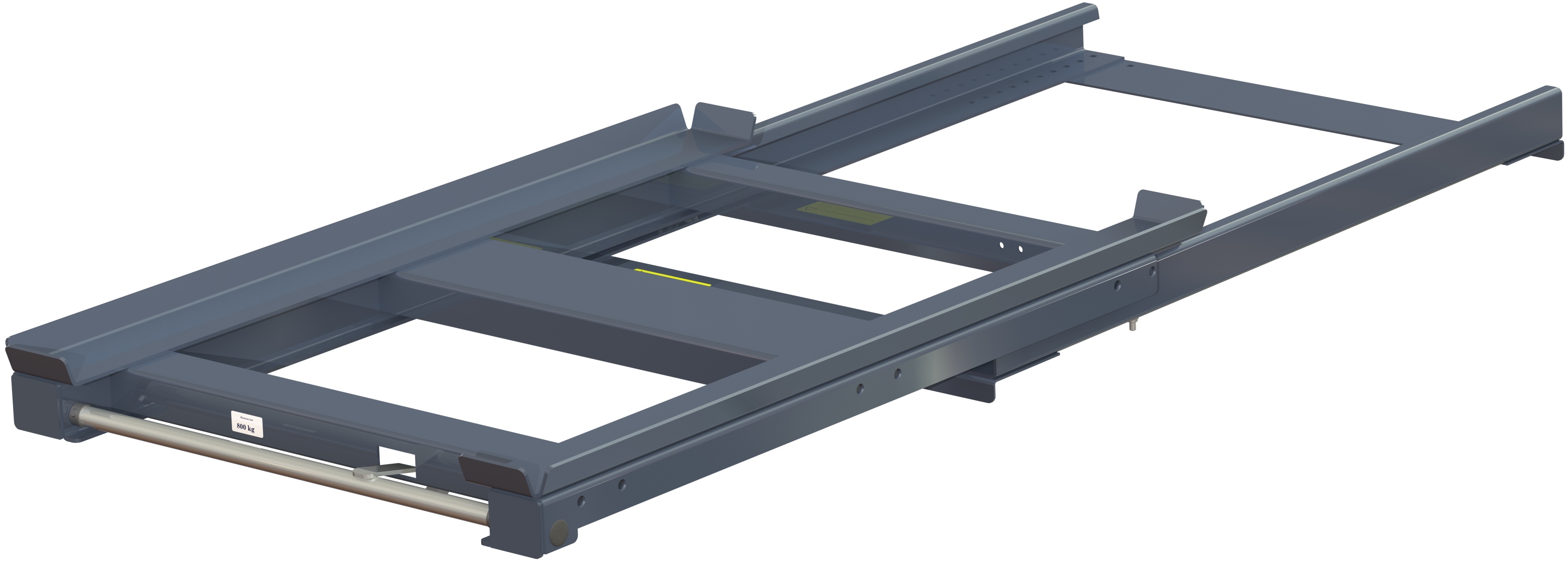

Beam-mounted (BM) units are mounted on the cross-beams between the pallet racking uprights. The lower frame of the pull-out unit is bolted to the beams and the upper frame slides out carrying the pallet with it. Pallets may be loaded directly onto the units, but other options allow for storage on open shelving, in plastic bins and in cartons. Being able to pull the units out of the rack allows for safe and easy access to stored items!
BM units are available in a range of capacities up to 1500kg and in a variety of formats to suit your requirements. They can cater for all pallet sizes and types (wood, steel, plastic), front or rear loading at the pallet rack, short or long-side handling, as well as for pallet collars with dividers, containers, bins and loose storage. The base frame BM unit is for pallets.

Product Features

Arrow
Picking Method Manual Manual
By hand, Overhead crane
Load Way Manual
One-way
Loading Manual
Front loaded
Load metod Manual Manual Manual
Forklift, Overhead crane, Pallet stacker
Handled Manual
Manual pull-out unit
Extension Manual
70%
Weight capacity Manual
800 kg
Type of load Manual
Gitterbox
Short or long side handled Manual
Short side handled

Technical Specifications

Arrow
Loading Width
Manual
825 mm
Loading height
Manual
91 mm
Loading Depth
Manual
1225 mm
Height
Manual
119 mm
Frame Colour
Manual
Blue, Grey, Special colour
Depth
Manual
1266 mm
Width
Manual
866 mm
Rack Depth
Manual
970 mm - 1170 mm

Weight and Volume

Arrow
Pallet Size
Manual
130x95x125
Pallet weight
Manual
593 kg
Quantity on pallet
Manual
8 pcs
Number of pallets / Trailer
Manual
25
Product Weight
Manual
71 kg

Weight Capacity Support Beam

Arrow
WCSB 3 pallets
Manual
3679 kg
WCSB 2 pallets
Manual
2826 kg
WCSB 1 pallet
Manual
1973 kg
