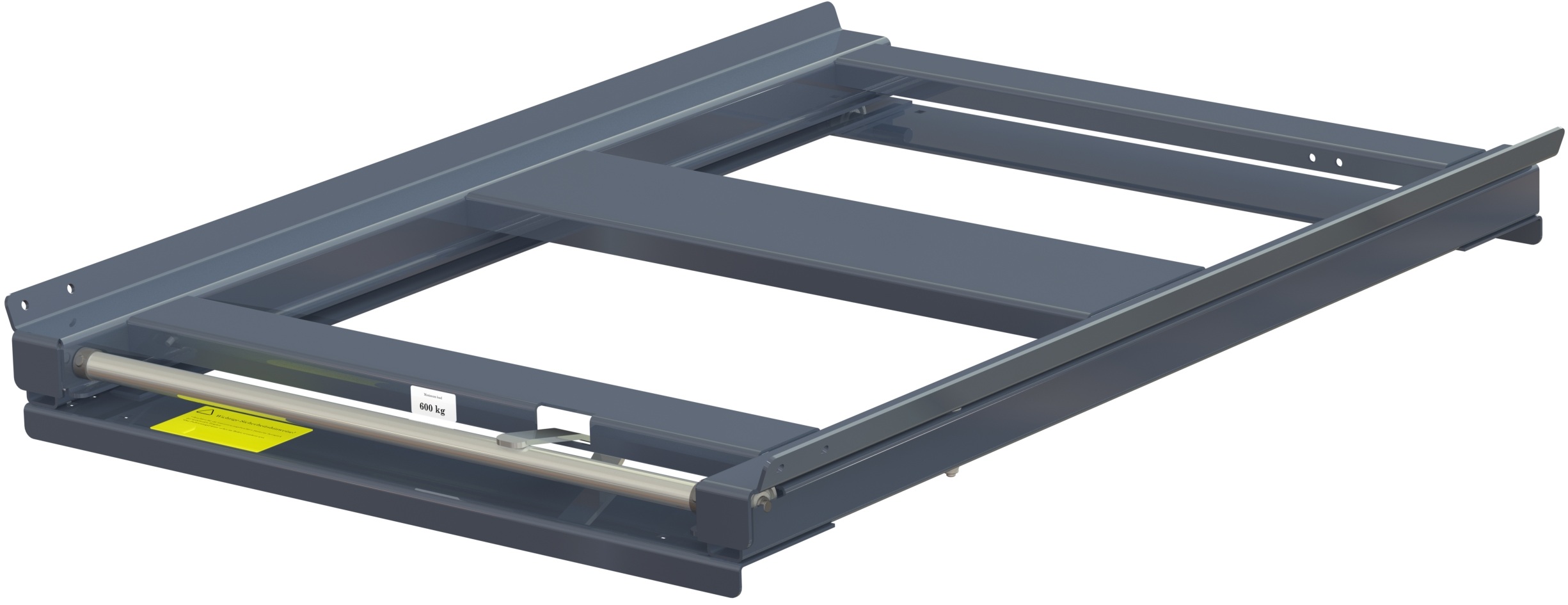

Pull-out unit for pallet rack with 70% extension ,600 kg load capacity, Rear-loaded, short-side handled EUR-pallet

- +
Product added to cart
Article Number: 11 602-0 Categories: ,

Description

Arrow

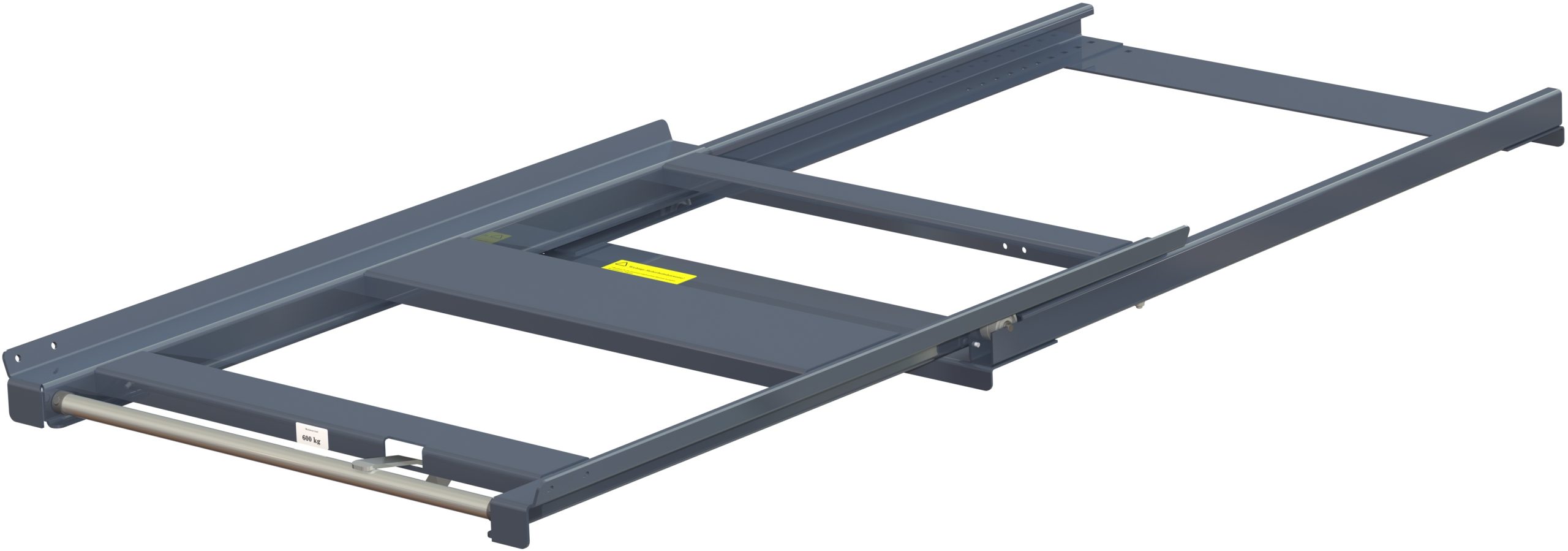

Beam-mounted (BM) units are mounted on the cross-beams between the pallet racking uprights. The lower frame of the pull-out unit is bolted to the beams and the upper frame slides out carrying the pallet with it. Pallets may be loaded directly onto the units, but other options allow for storage on open shelving, in plastic bins and in cartons. Being able to pull the units out of the rack allows for safe and easy access to
stored items! BM units are available in a range of capacities up to 1500kg and in a variety of formats to suit your requirements. They can cater for all pallet sizes and types (wood, steel, plastic), front or rear loading at the pallet rack, short or long-side handling, as well as for pallet collars with dividers, containers, bins and loose storage. The base frame BM unit is for pallets.

Product Features

Arrow
Extension Manual
70%
Weight capacity Manual
600 kg
Handled Manual
Manual pull-out unit
Load metod Manual Manual Manual
Forklift, Overhead crane, Pallet stacker
Load Way Manual
One-way
Loading Manual
Rear loaded
Type of load Manual
EUR-pallet
Short or long side handled Manual
Short side handled
Picking Method Manual Manual
By hand, Overhead crane

Technical Specifications

Arrow
Frame Colour
Manual
Blue, Grey, Special colour
Depth
Manual
1210 mm
Width
Manual
855 mm
Height
Manual
97 mm
Loading Depth
Manual
1204 mm
Loading height
Manual
69 mm
Loading Width
Manual
821 mm
Rack Depth
Manual
970 mm - 1170 mm

Weight and Volume

Arrow
Pallet weight
Manual
450 kg
Pallet Size
Manual
125x90x145
Number of pallets / Trailer
Manual
25
Quantity on pallet
Manual
12 pcs
Product Weight
Manual
35 kg

Weight Capacity Support Beam

Arrow
WCSB 3 pallets
Manual
2745 kg
WCSB 1 pallet
Manual
1475 kg
WCSB 2 pallets
Manual
2110 kg
