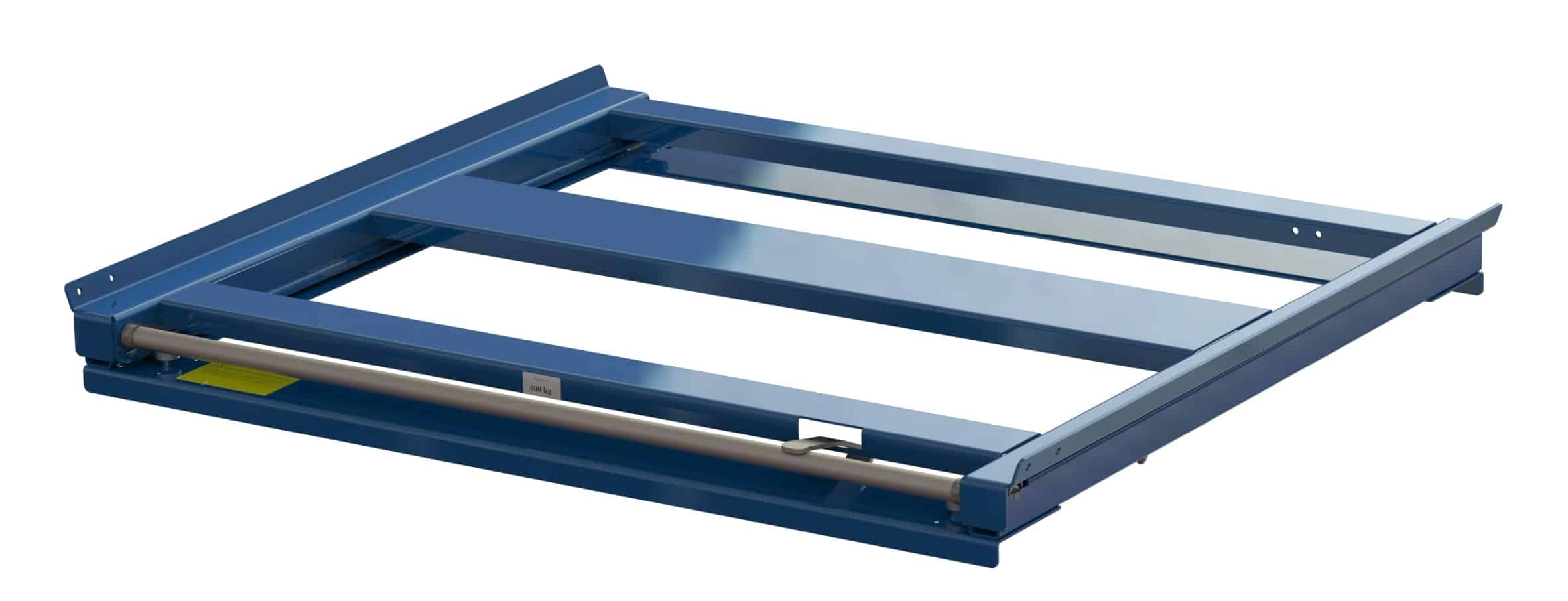

Beam-Mounted Pull-Out Unit for FIN-Pallets, 600 kg Capacity, 70% Extension, Long-Side Handled, Front-Loaded

- +
Product added to cart
Article Number: 11 607-0 Categories: ,

Description

Arrow

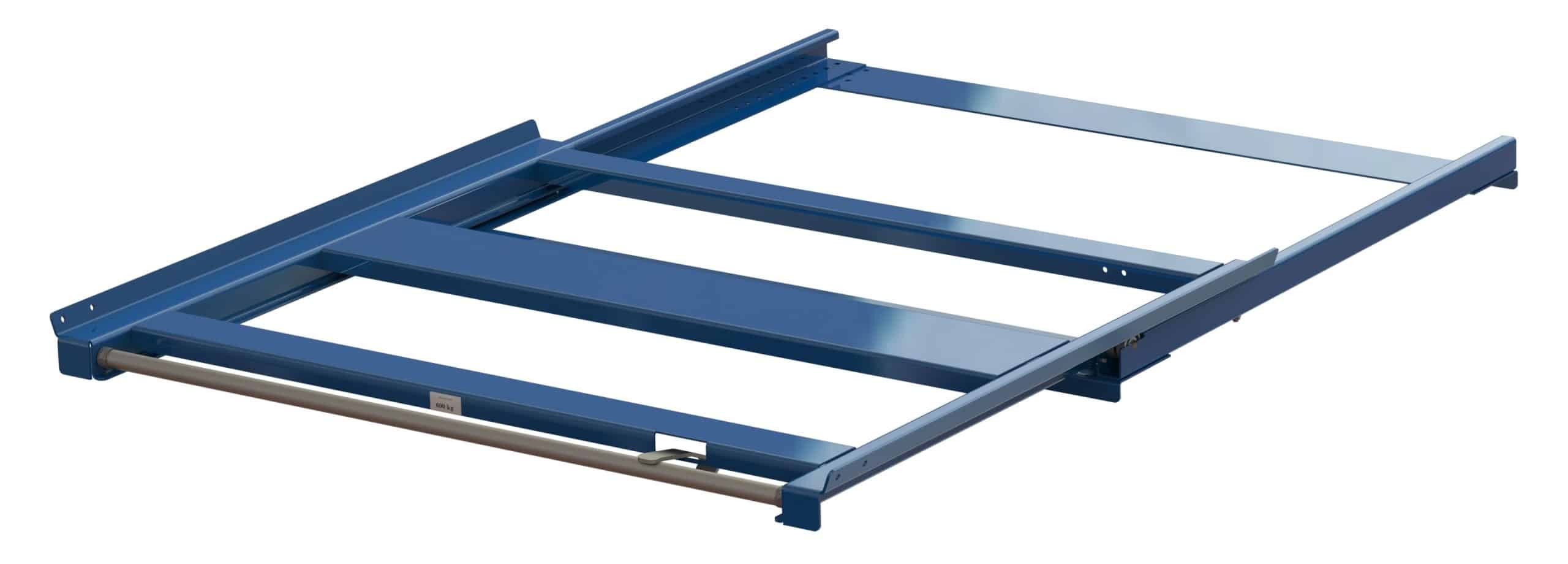

Optimize your warehouse operations with our beam-mounted pull-out unit, purpose-built for long-side handled FIN-pallets. With a 600 kg load capacity and 70% extension, this front-loaded solution is engineered for safer, faster, and more ergonomic pallet access directly from the pallet rack. Securely installed between the pallet racking uprights, the BM pull-out unit allows the upper frame to glide forward while the base remains bolted to the beams. This movement brings the pallet out for quick and comfortable access — reducing strain and improving picking efficiency.
To enhance safety, each unit comes equipped with rear pallet stops, preventing accidental pallet displacement and ensuring secure positioning at all times during operation.
Though optimized for pallet storage, the versatile design supports a wide variety of storage configurations, including plastic bins, cartons, pallet collars with dividers, and open shelving. For even greater flexibility and function, adding a steel shelf panel or wire shelf panel transforms the unit into a universal storage platform.

These panels offer the following advantages:
Enhanced support for loose goods or non-palletized items
Wire shelf panels facilitate water permeability, making them ideal for environments requiring sprinklers or drainage

Ideal for operations prioritizing safety, flexibility, and space efficiency, this pull-out unit is a smart investment in improved warehouse logistics and operator wellbeing.

Product Features

Arrow
Picking Method Manual Manual
By hand, Overhead crane
Short or long side handled Manual
Long side handled
Type of load Manual
FIN-/ CHEP-pallet
Weight capacity Manual
600 kg
Extension Manual
70%
Handled Manual
Manual pull-out unit
Load Way Manual
One-way
Loading Manual
Front loaded
Load metod Manual Manual Manual
Forklift, Overhead crane, Pallet stacker

Technical Specifications

Arrow
Rack Depth
Manual
850 mm - 1050 mm
Width
Manual
1255 mm
Depth
Manual
1090 mm
Frame Colour
Manual
Blue, Grey, Special colour
Height
Manual
95 mm
Loading Depth
Manual
1084 mm
Loading height
Manual
68 mm
Loading Width
Manual
1221 mm

Weight and Volume

Arrow
Pallet weight
Manual
613 kg
Product Weight
Manual
49 kg
Quantity on pallet
Manual
12 pcs
Number of pallets / Trailer
Manual
21
Pallet Size
Manual
130x110x130

Weight Capacity Support Beam

Arrow
WCSB 1 pallet
Manual
1475 kg
WCSB 2 pallets
Manual
2110 kg
WCSB 3 pallets
Manual
2745 kg
