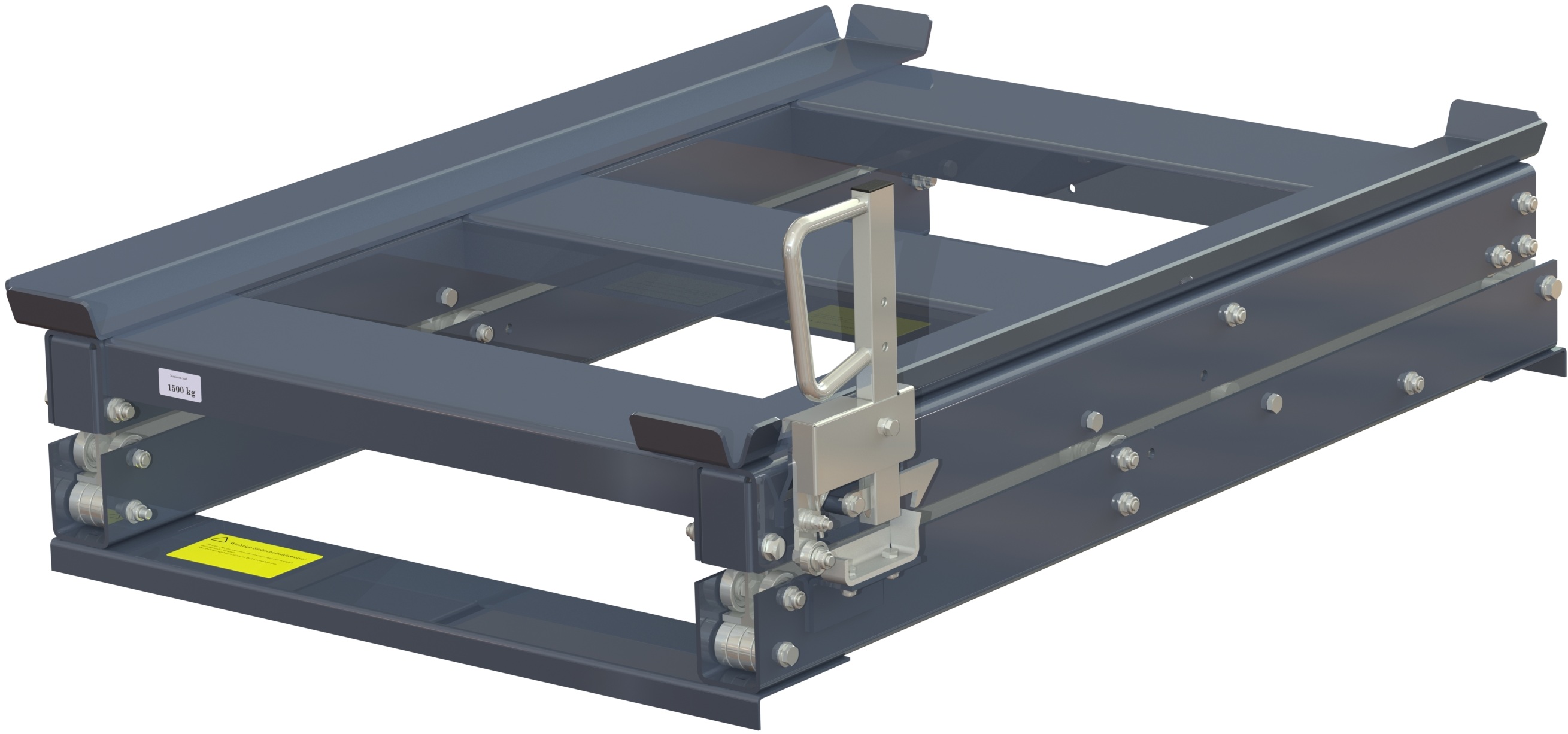

Beam-mounted pull-out unit 70%, 1500 kg, Short-side handled, Rear-loaded, for wire mesh containers

- +
Product added to cart
Article Number: 11 1510-0 Categories: ,

Description

Arrow

This Beam-mounted pull-out unit 70% with an impressive 1500 kg load capacity is designed for the heaviest wire mesh containers and maximum point loads. Built with extra-strong side profiles and stabilizing edges, it ensures maximum safety and stability. The short-side handled, rear-loaded configuration makes it ideal when loading is done from one side of the rack, while goods are picked from the other side – often in traffic-free zones for safer workflows.

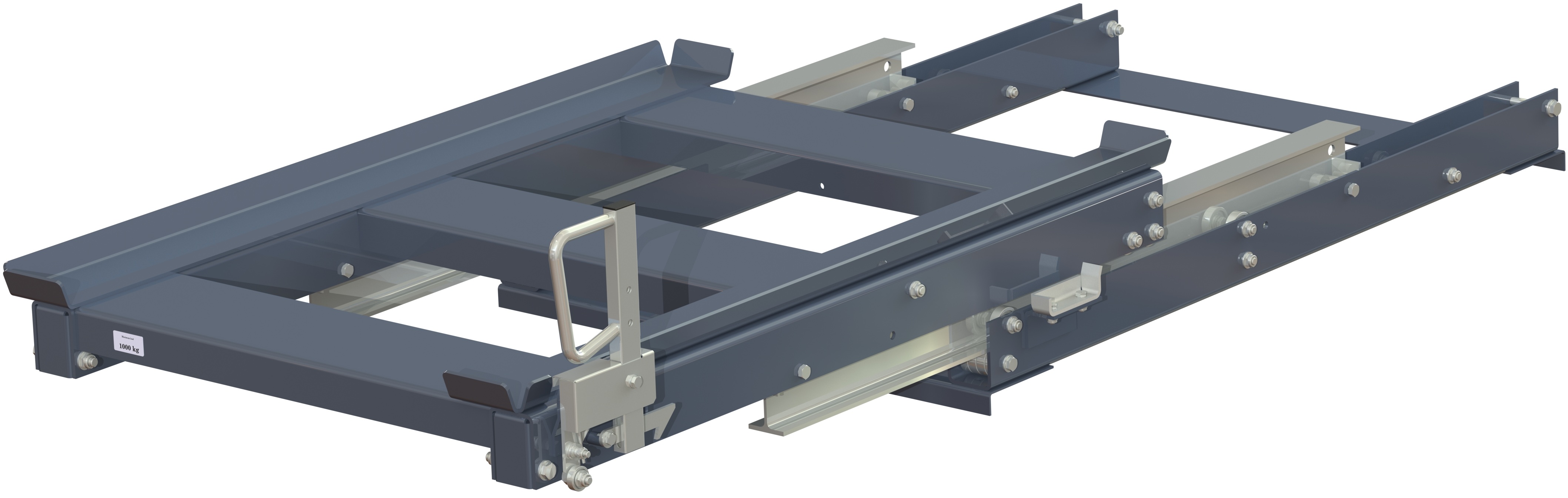

The 70% pull-out capacity combines ergonomics with efficiency. Extended, the unit provides an 840 mm opening for fast, safe, and comfortable manual picking. Suitable for containers with a depth of 1200 mm and width of 800 mm, short side forward.

Product Features

Arrow
Picking Method Manual Manual
By hand, Overhead crane
Load Way Manual
One-way
Load metod Manual Manual Manual
Forklift, Overhead crane, Pallet stacker
Handled Manual
Manual pull-out unit
Extension Manual
70%
Loading Manual
Rear loaded
Weight capacity Manual
1500 kg
Type of load Manual
Gitterbox
Short or long side handled Manual
Short side handled

Technical Specifications

Arrow
Loading height
Manual
208 mm
Loading Depth
Manual
1225 mm
Depth
Manual
1260 mm
Height
Manual
234 mm
Frame Colour
Manual
Blue, Grey, Special colour
Loading Width
Manual
825 mm
Width
Manual
918-mm
Rack Depth
Manual
970 mm - 1170 mm

Weight and Volume

Arrow
Pallet Size
Manual
130x90x140
Pallet weight
Manual
585-kg
Quantity on pallet
Manual
5 pcs
Product Weight
Manual
110 kg
Number of pallets / Trailer
Manual
25

Weight Capacity Support Beam

Arrow
WCSB 1 pallet
Manual
3710 kg
WCSB 2 pallets
Manual
5320 kg
WCSB 3 pallets
Manual
6930 kg
