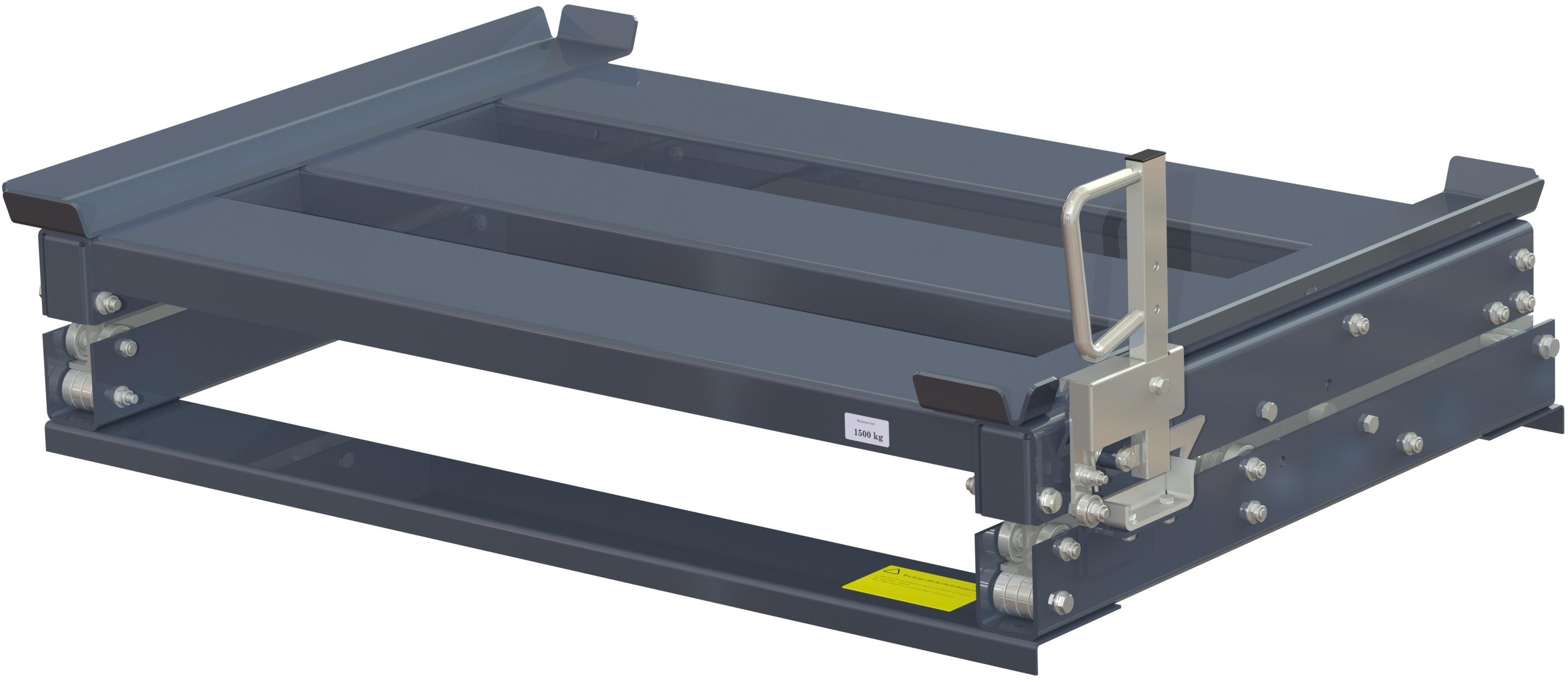

Pull-out unit for pallet rack with 70% extension ,1500 kg load capacity, Rear-loaded, long-side handled HMU

- +
Product added to cart
Article Number: 11 1512-0 Categories: ,
Arrow

Description

Arrow

Beam-mounted (BM) units are mounted on the cross-beams between
the pallet racking uprights. The lower frame of the pull-out unit is

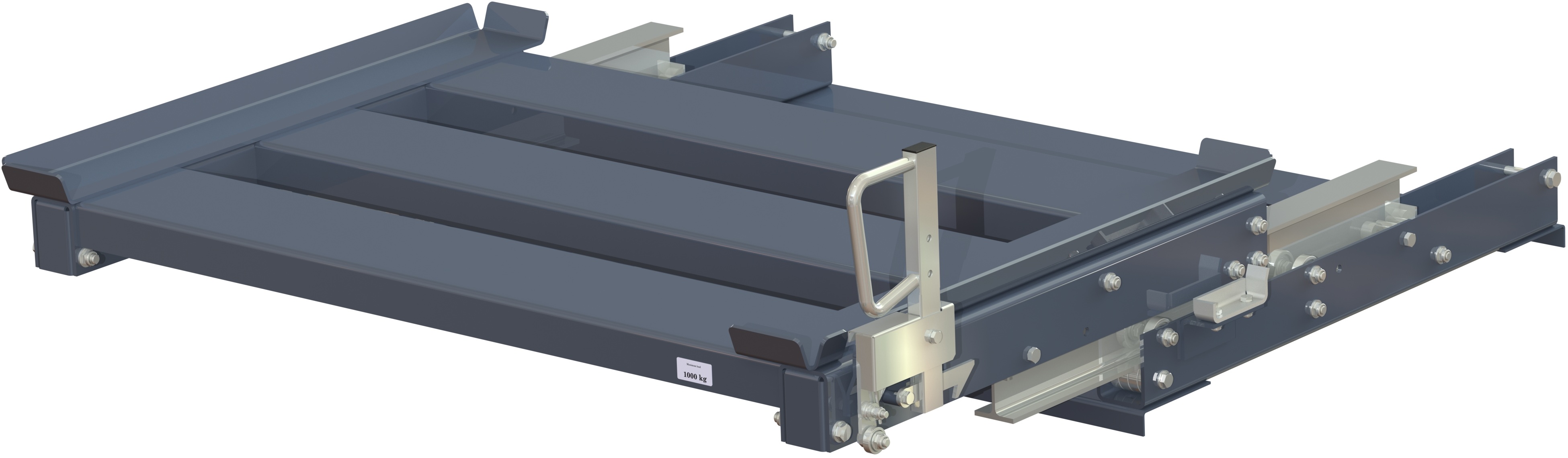

bolted to the beams and the upper frame slides out carrying the
pallet with it.
Pallets may be loaded directly onto the units, but other options allow
for storage on open shelving, in plastic bins and in cartons. Being able
to pull the units out of the rack allows for safe and easy access to
stored items!
BM units are available in a range of capacities up to 1500kg and in
a variety of formats to suit your requirements. They can cater for
all pallet sizes and types (wood, steel, plastic), front or rear loading
at the pallet rack, short or long-side handling, as well as for pallet
collars with dividers, containers, bins and loose storage. The base
frame BM unit is for pallets.

Arrow

Product Features

Arrow
TYPE OF LOAD Manual
Gitterbox
LOADING Manual
Rear loaded
SHORT OR LONG SIDE HANDLED Manual
Long side handled
WEIGHT CAPACITY Manual
1500 kg
EXTENSION Manual
70%
LOAD WAY Manual
One-way
LOAD METHOD ManualManualManual
Forklift | Overhead crane | Pallet stacker
PICKING METHOD ManualManual
By hand | Overhead crane
Arrow

Technical Specification

Arrow
WIDTH
Manual
1302 mm
LOADING WIDTH
Manual
1225 mm
DEPTH
Manual
860 mm
LOADING DEPTH
Manual
825 mm
LOADING HEIGHT
Manual
207 mm
HEIGHT
Manual
234 mm
RACK DEPTH
Manual
650 mm - 850 mm
Arrow

Weight and Volume

Arrow
NUMBER OF PALLETS /TRAILER
Manual
25
