Pull-out unit for pallet rack with 70% extension ,1500 kg load capacity, Front-loaded, long-side handled HMU

- +
Product added to cart
Article Number: 11 1511-0 Categories: ,

Description

Arrow

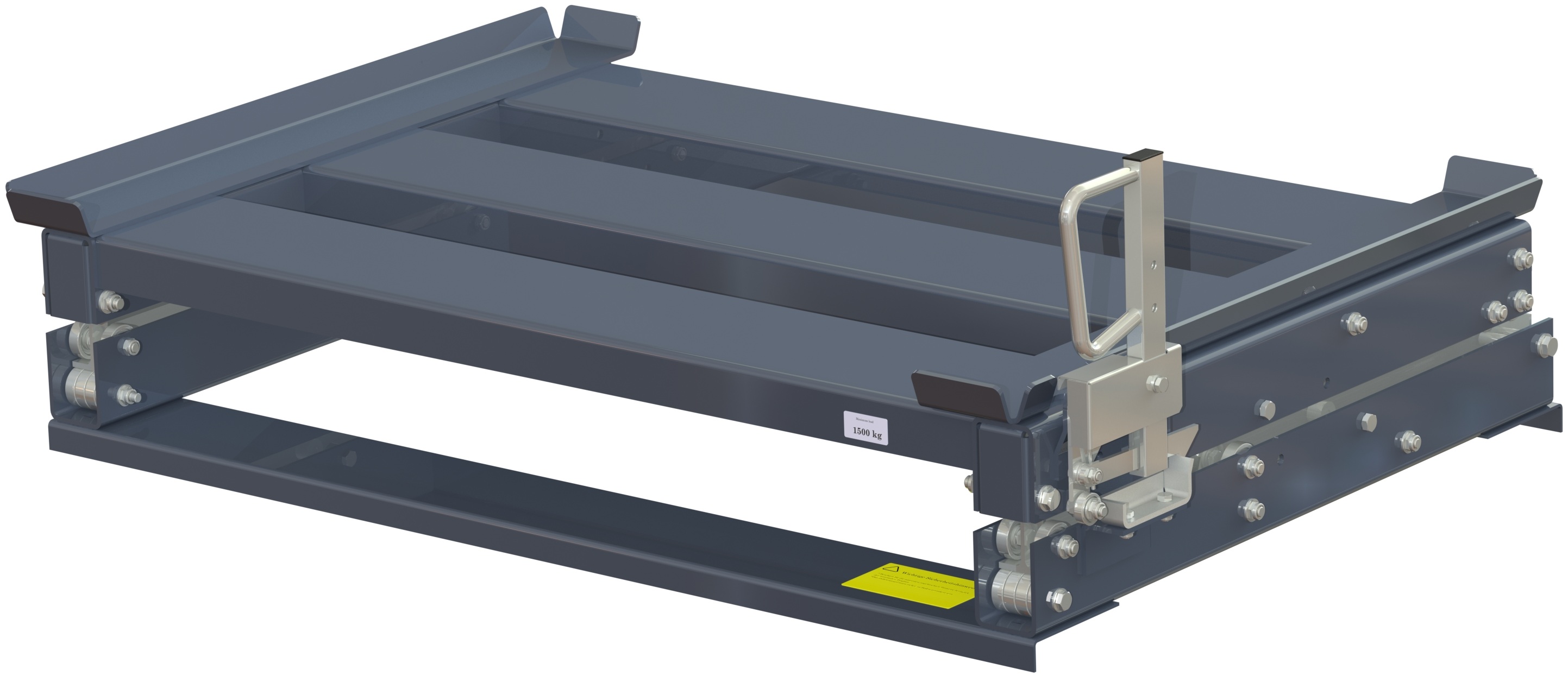

Beam-mounted (BM) units are mounted on the cross-beams between
the pallet racking uprights. The lower frame of the pull-out unit is

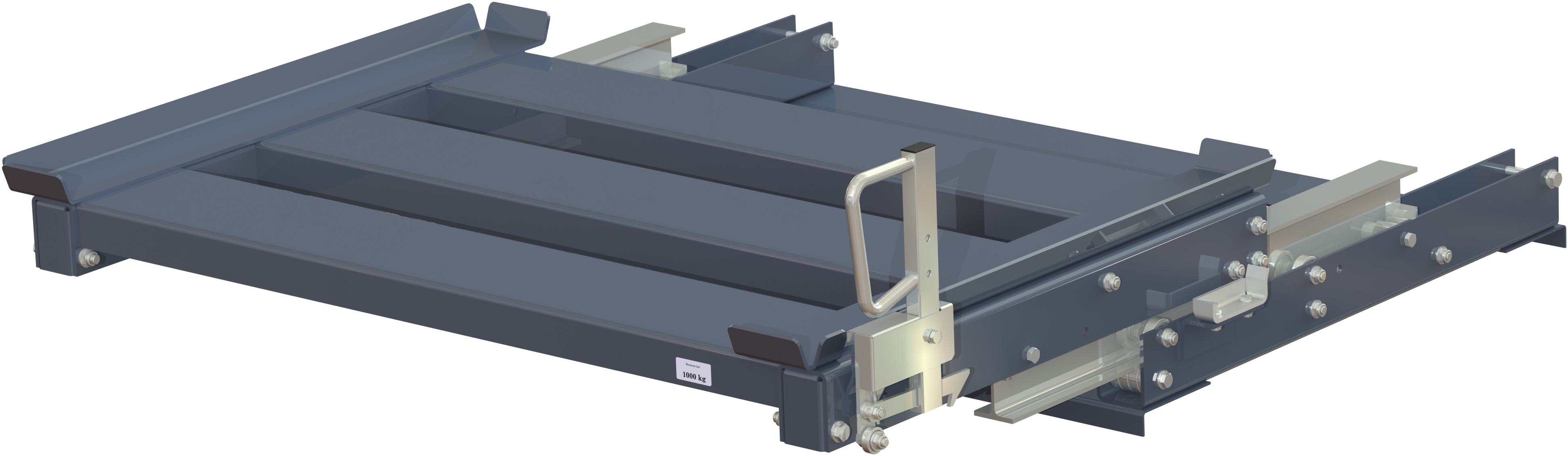

bolted to the beams and the upper frame slides out carrying the
pallet with it.
Pallets may be loaded directly onto the units, but other options allow
for storage on open shelving, in plastic bins and in cartons. Being able
to pull the units out of the rack allows for safe and easy access to
stored items!
BM units are available in a range of capacities up to 1500kg and in
a variety of formats to suit your requirements. They can cater for
all pallet sizes and types (wood, steel, plastic), front or rear loading
at the pallet rack, short or long-side handling, as well as for pallet
collars with dividers, containers, bins and loose storage. The base
frame BM unit is for pallets.

Product Features

Arrow
Load Way Manual
One-way
Load metod Manual Manual Manual
Forklift, Overhead crane, Pallet stacker
Handled Manual
Manual pull-out unit
Extension Manual
70%
Picking Method Manual Manual
By hand, Overhead crane
Short or long side handled Manual
Long side handled
Type of load Manual
Gitterbox
Weight capacity Manual
1500 kg
Loading Manual
Front loaded

Technical Specifications

Arrow
Height
Manual
234 mm
Depth
Manual
860 mm
Loading Width
Manual
1225 mm
Rack Depth
Manual
650 mm - 850 mm
Width
Manual
1318-mm
Frame Colour
Manual
Blue, Grey, Special colour
Loading Depth
Manual
825 mm
Loading height
Manual
209-mm

Weight and Volume

Arrow
Pallet Size
Manual
130x90x135
Pallet weight
Manual
525-kg
Product Weight
Manual
98 kg
Quantity on pallet
Manual
5 pcs
Number of pallets / Trailer
Manual
25
