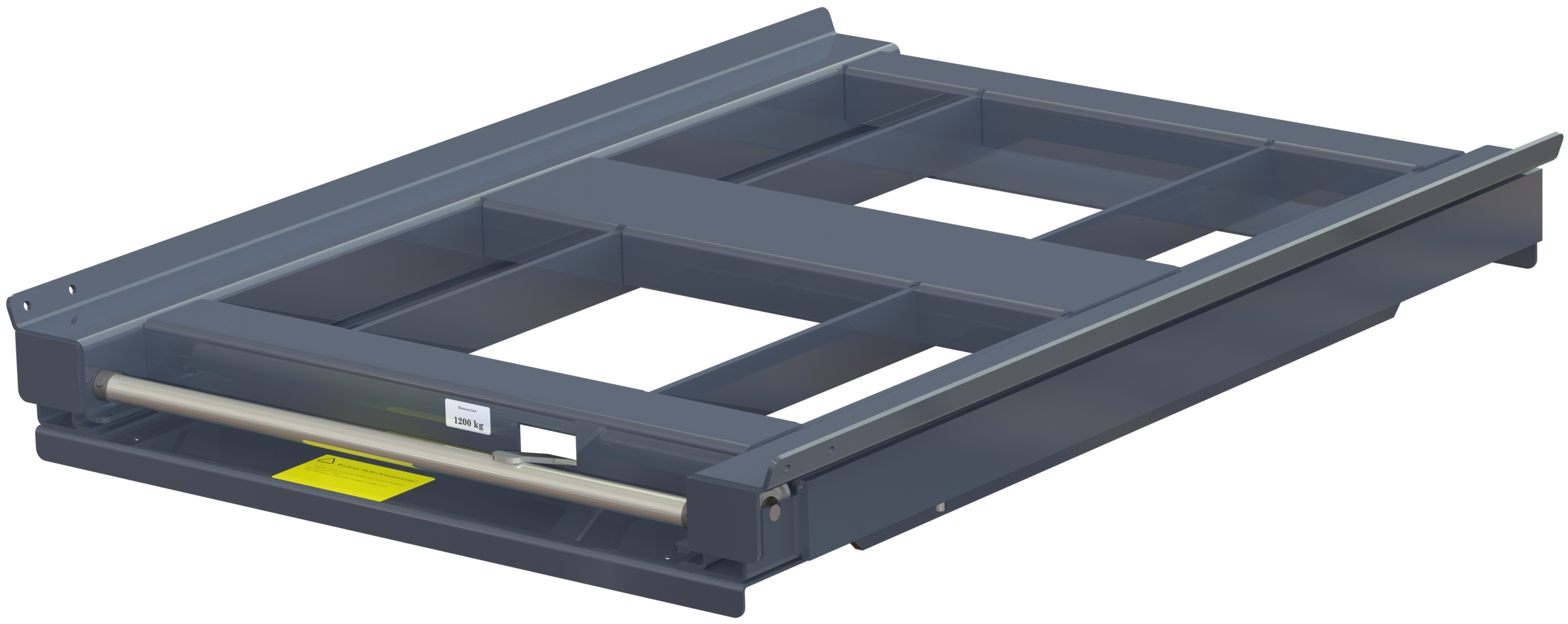

Pull-out unit for pallet rack with 70% extension ,1200 kg load capacity, Rear-loaded, short-side handled EUR-pallet

- +
Product added to cart
Article Number: 11 1202-0 Categories: ,

Description

Arrow

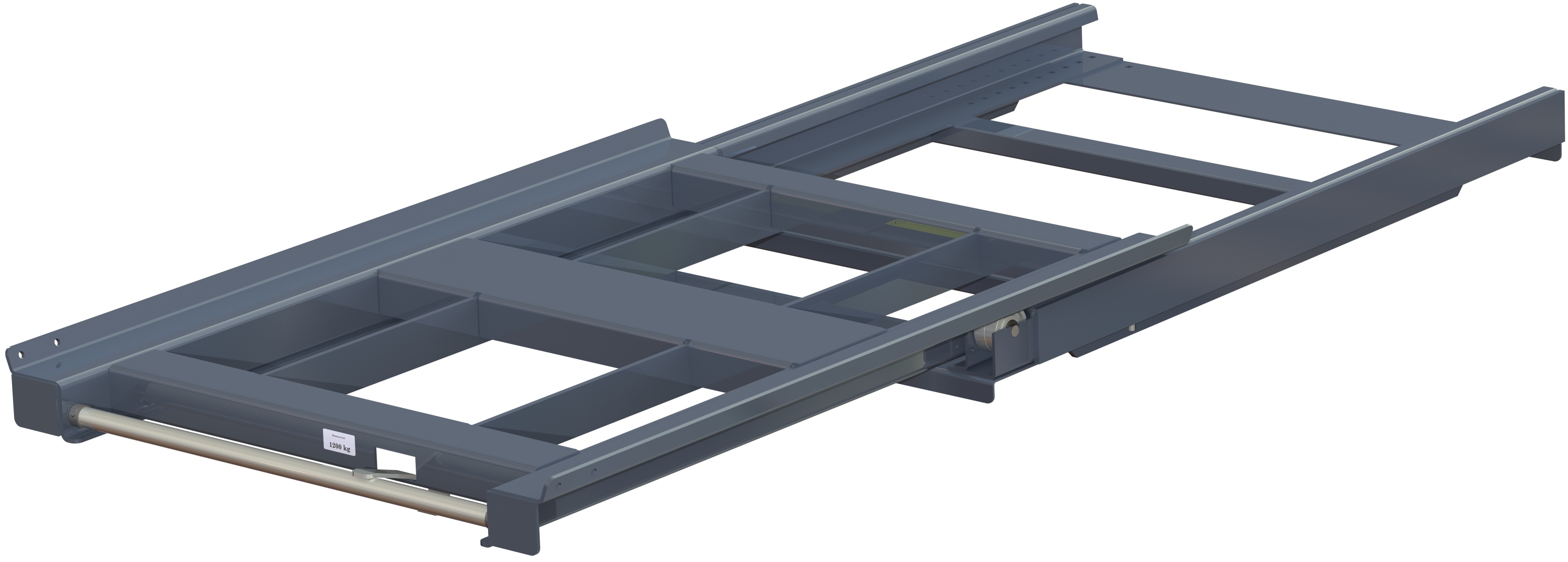

Beam-mounted (BM) units are mounted on the cross-beams between
the pallet racking uprights. The lower frame of the pull-out unit is
bolted to the beams and the upper frame slides out carrying the
pallet with it.
Pallets may be loaded directly onto the units, but other options allow
for storage on open shelving, in plastic bins and in cartons. Being able
to pull the units out of the rack allows for safe and easy access to
stored items!
BM units are available in a range of capacities up to 1500kg and in
a variety of formats to suit your requirements. They can cater for
all pallet sizes and types (wood, steel, plastic), front or rear loading
at the pallet rack, short or long-side handling, as well as for pallet
collars with dividers, containers, bins and loose storage. The base
frame BM unit is for pallets.

Product Features

Arrow
Loading Manual
Rear loaded
Load Way Manual
One-way
Load metod Manual Manual Manual
Forklift, Overhead crane, Pallet stacker
Handled Manual
Manual pull-out unit
Extension Manual
70%
Picking Method Manual Manual
By hand, Overhead crane
Short or long side handled Manual
Short side handled
Type of load Manual
EUR-pallet
Weight capacity Manual
1200 kg

Technical Specifications

Arrow
Loading Width
Manual
834 mm
Loading height
Manual
91 mm
Loading Depth
Manual
1205 mm
Height
Manual
118 mm
Frame Colour
Manual
Blue, Grey, Special colour
Depth
Manual
1210 mm
Rack Depth
Manual
1080 mm - 1173 mm
Width
Manual
869 mm

Weight and Volume

Arrow
Pallet weight
Manual
742 kg
Product Weight
Manual
90 kg
Pallet Size
Manual
130x90x115
Quantity on pallet
Manual
8 pcs
Number of pallets / Trailer
Manual
25

Weight Capacity Support Beam

Arrow
WCSB 1 pallet
Manual
2970 kg
WCSB 2 pallets
Manual
4260 kg
WCSB 3 pallets
Manual
5550 kg
