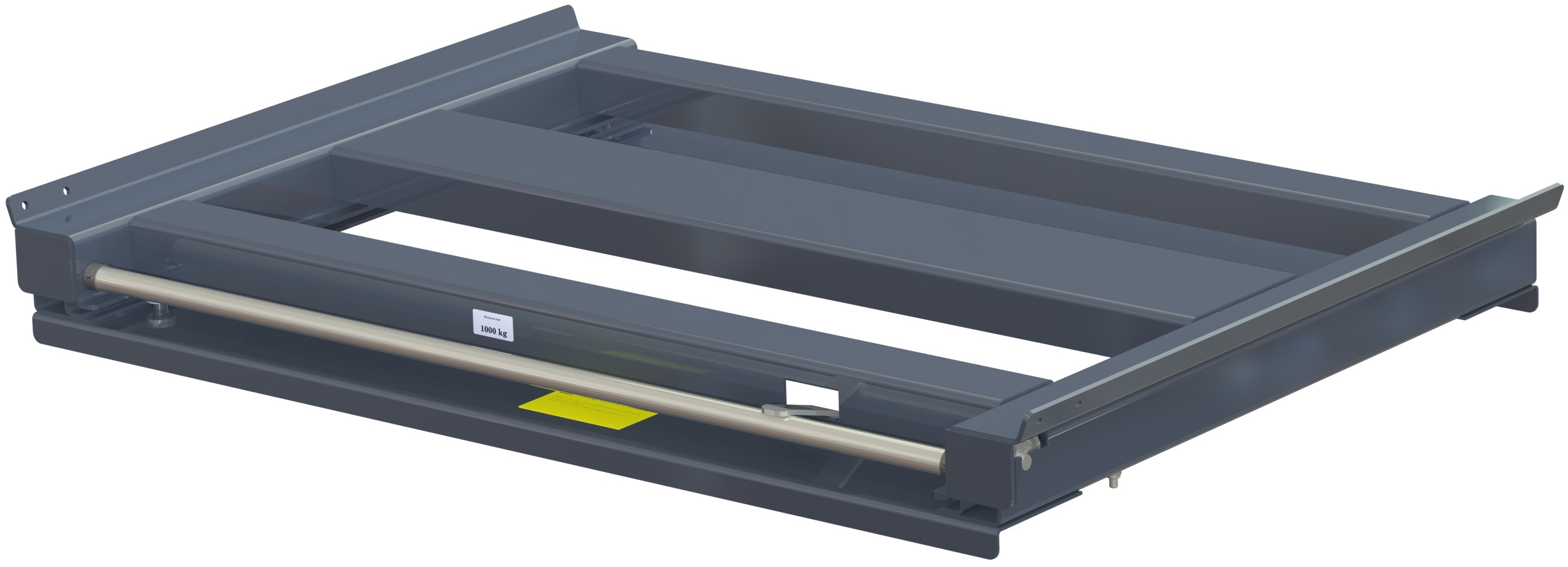

Pull-out unit for pallet rack with 70% extension ,1000 kg load capacity, Front-loaded, long-side handled EUR-pallet

- +
Product added to cart
Article Number: 11 1005-0 Categories: ,

Description

Arrow

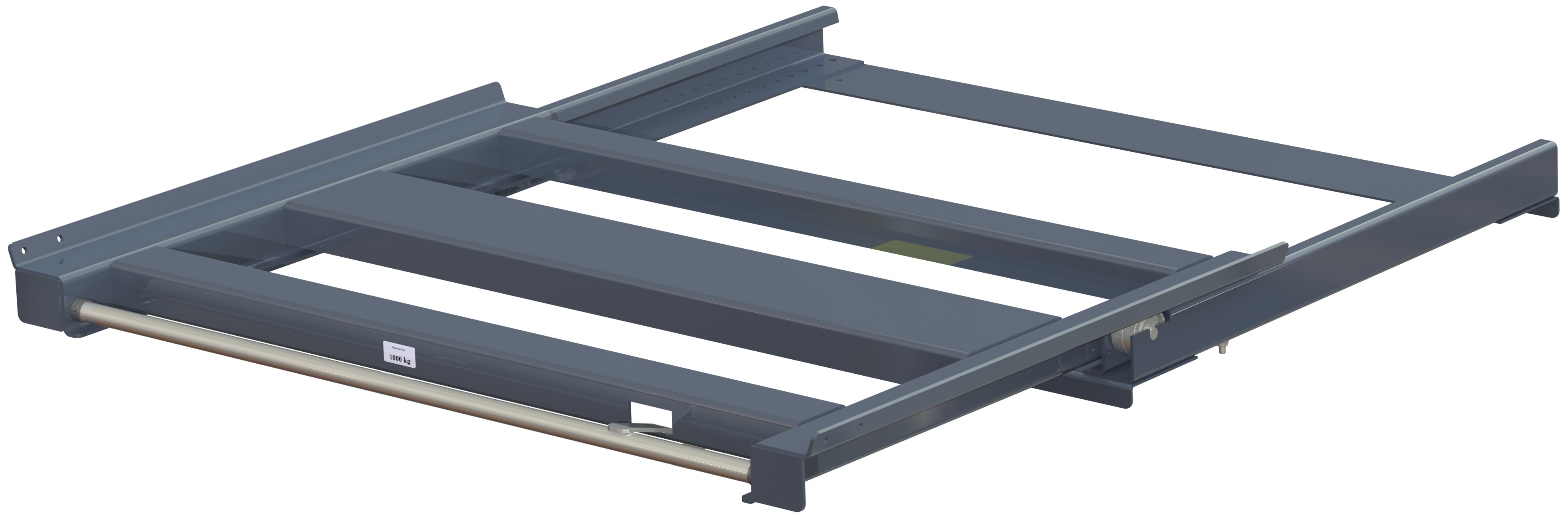

Beam-mounted (BM) units are mounted on the cross-beams between the pallet racking uprights. The lower frame of the pull-out unit is bolted to the beams and the upper frame slides out carrying the pallet with it. Pallets may be loaded directly onto the units, but other options allow for storage on open shelving, in plastic bins and in cartons. Being able to pull the units out of the rack allows for safe and easy access to stored items!
BM units are available in a range of capacities up to 1500kg and in a variety of formats to suit your requirements. They can cater for all pallet sizes and types (wood, steel, plastic), front or rear loading at the pallet rack, short or long-side handling, as well as for pallet collars with dividers, containers, bins and loose storage. The base frame BM unit is for pallets.

Product Features

Arrow
Picking Method Manual Manual
By hand, Overhead crane
Load Way Manual
One-way
Short or long side handled Manual
Long side handled
Type of load Manual
EUR-pallet
Weight capacity Manual
1000 kg
Extension Manual
70%
Handled Manual
Manual pull-out unit
Load metod Manual Manual Manual
Forklift, Overhead crane, Pallet stacker
Loading Manual
Front loaded

Technical Specifications

Arrow
Rack Depth
Manual
650 mm - 850 mm
Width
Manual
1269 mm
Depth
Manual
890 mm
Frame Colour
Manual
Blue, Grey, Special colour
Height
Manual
118 mm
Loading Depth
Manual
880 mm
Loading Width
Manual
1234 mm
Loading height
Manual
91 mm

Weight and Volume

Arrow
Pallet weight
Manual
494 kg
Product Weight
Manual
52 kg
Quantity on pallet
Manual
8 pcs
Pallet Size
Manual
130x95x120
Number of pallets / Trailer
Manual
25

Weight Capacity Support Beam

Arrow
WCSB 1 pallet
Manual
2486 kg
WCSB 2 pallets
Manual
3572 kg
WCSB 3 pallets
Manual
4658 kg
