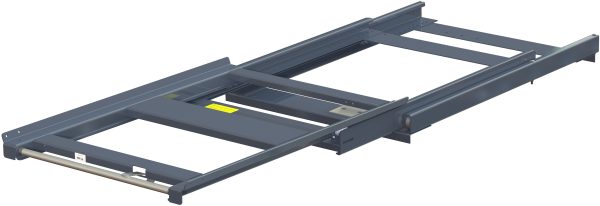

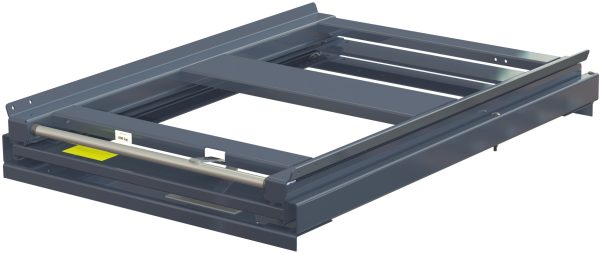

Pull-out unit for pallet rack with 100% extension ,600 kg load capacity, Rear-loaded, short-side handled EUR-pallet

- +
Product added to cart
Article Number: 11 602-1 Categories: ,

Description

Arrow

Beam-mounted (BM) units are mounted on the cross-beams between the pallet racking uprights. The lower frame of the pull-out unit is bolted to the beams and the upper frame slides out carrying the pallet with it. Pallets may be loaded directly onto the units, but other options allow for storage on open shelving, in plastic bins and in cartons. Being able to pull the units out of the rack allows for safe and easy access to stored items!
BM units are available in a range of capacities up to 1500kg and in a variety of formats to suit your requirements. They can cater for all pallet sizes and types (wood, steel, plastic), front or rear loading at the pallet rack, short or long-side handling, as well as for pallet collars with dividers, containers, bins and loose storage. The base frame BM unit is for pallets.

Product Features

Arrow
Loading Manual
Rear loaded
Extension Manual
100%
Handled Manual
Manual pull-out unit
Load metod Manual Manual Manual
Forklift, Overhead crane, Pallet stacker
Weight capacity Manual
600 kg
Type of load Manual
EUR-pallet
Short or long side handled Manual
Short side handled
Picking Method Manual Manual
By hand, Overhead crane
Load Way Manual
One-way

Technical Specifications

Arrow
Depth
Manual
1235 mm
Frame Colour
Manual
Blue, Grey, Special colour
Height
Manual
150 mm
Width
Manual
875 mm
Rack Depth
Manual
970 mm - 1170 mm
Loading height
Manual
122 mm
Loading Width
Manual
821 mm
Loading Depth
Manual
1200 mm

Weight and Volume

Arrow
Pallet weight
Manual
427 kg
Pallet Size
Manual
125x90x135
Number of pallets / Trailer
Manual
25
Quantity on pallet
Manual
6 pcs
Product Weight
Manual
67 kg

Weight Capacity Support Beam

Arrow
WCSB 3 pallets
Manual
3198 kg
WCSB 2 pallets
Manual
2532 kg
WCSB 1 pallet
Manual
1866 kg
