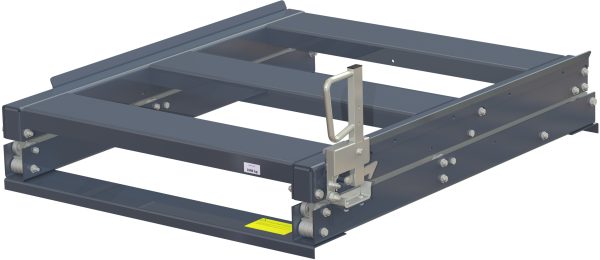

Pull-out unit for pallet rack with 100% extension ,1000 kg load capacity, Rear-loaded, short-side handled FIN-pallet

- +
Product added to cart
Article Number: 11 1004-1 Categories: ,

Description

Arrow

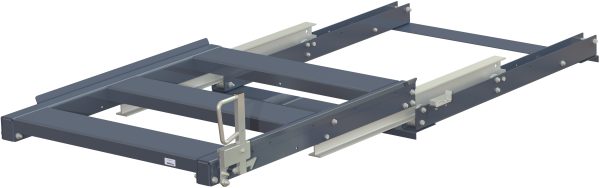

Beam-mounted (BM) units are mounted on the cross-beams between
the pallet racking uprights. The lower frame of the pull-out unit is
bolted to the beams and the upper frame slides out carrying the
pallet with it.
Pallets may be loaded directly onto the units, but other options allow
for storage on open shelving, in plastic bins and in cartons. Being able
to pull the units out of the rack allows for safe and easy access to
stored items!
BM units are available in a range of capacities up to 1500kg and in
a variety of formats to suit your requirements. They can cater for
all pallet sizes and types (wood, steel, plastic), front or rear loading
at the pallet rack, short or long-side handling, as well as for pallet
collars with dividers, containers, bins and loose storage. The base
frame BM unit is for pallets.

Product Features

Arrow
Extension Manual
100%
Handled Manual
Manual pull-out unit
Load metod Manual Manual Manual
Forklift, Overhead crane, Pallet stacker
Loading Manual
Rear loaded
Load Way Manual
One-way
Weight capacity Manual
1000 kg
Type of load Manual
FIN-/ CHEP-pallet
Short or long side handled Manual
Short side handled
Picking Method Manual Manual
By hand, Overhead crane

Technical Specifications

Arrow
Depth
Manual
1260 mm
Frame Colour
Manual
Blue, Grey, Special colour
Height
Manual
245 mm
Loading Depth
Manual
1200 mm
Loading height
Manual
205 mm
Loading Width
Manual
1020 mm
Width
Manual
1255 mm
Rack Depth
Manual
970 mm - 1170 mm

Weight and Volume

Arrow
Pallet Size
Manual
130x110x130
Number of pallets / Trailer
Manual
21
Quantity on pallet
Manual
5 pcs
Product Weight
Manual
104 kg
Pallet weight
Manual
545 kg

Weight Capacity Support Beam

Arrow
WCSB 3 pallets
Manual
5294 kg
WCSB 2 pallets
Manual
4196 kg
WCSB 1 pallet
Manual
3098 kg, 3098 kg, 3098kg
