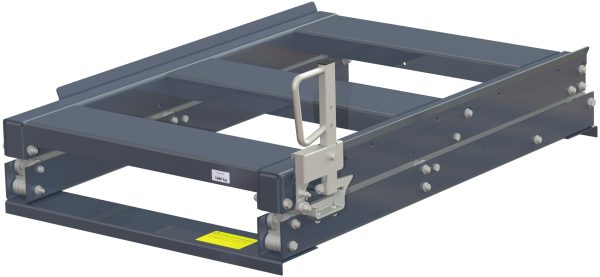

Pull-out unit for pallet rack with 100% extension ,1000 kg load capacity, Rear-loaded, short-side handled EUR-pallet

- +
Product added to cart
Article Number: 11 1002-1 Categories: ,
Arrow

Description

Arrow

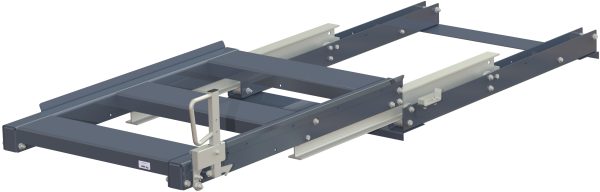

Beam-mounted (BM) units are mounted on the cross-beams between
the pallet racking uprights. The lower frame of the pull-out unit is
bolted to the beams and the upper frame slides out carrying the
pallet with it.
Pallets may be loaded directly onto the units, but other options allow
for storage on open shelving, in plastic bins and in cartons. Being able
to pull the units out of the rack allows for safe and easy access to
stored items!
BM units are available in a range of capacities up to 1500kg and in
a variety of formats to suit your requirements. They can cater for
all pallet sizes and types (wood, steel, plastic), front or rear loading
at the pallet rack, short or long-side handling, as well as for pallet
collars with dividers, containers, bins and loose storage. The base
frame BM unit is for pallets.

Arrow

Product Features

Arrow
TYPE OF LOAD
Manual
EUR-pallet
PICKING METHOD
Manual
Manual
By hand | Overhead crane
LOAD METOD
Manual
Manual
Manual
Forklift | Overhead crane | Pallet stacker
EXTENSION
Manual
100%
LOADING
Manual
Rear loaded
LOAD WAY
Manual
One-way
SHORT OR LONG SIDE HANDLED
Manual
Short side handled
WEIGHT CAPACITY
Manual
1000 kg
Arrow

Technical Specification

Arrow
HEIGHT
Manual
245 mm
WIDTH
Manual
884 mm
LOADING WIDTH
Manual
820 mm
RACK DEPTH
Manual
970 mm - 1220 mm
LOADING HEIGHT
Manual
205 mm
LOADING DEPTH
Manual
1200 mm
DEPTH
Manual
1260 mm
Arrow

Weight and Volume

Arrow
PALLET SIZE
Manual
130x90x130
PALLET WEIGHT
Manual
505 kg
PRODUCT WEIGHT
Manual
98 kg
QUANTITY ON PALLET
Manual
5 pcs
NUMBER OF PALLETS / TRAILER
Manual
25
Arrow

Weight Capacity Support Beam

Arrow
OBS! ONLY ONE UNIT PER SECTION MAY BE EXTRACTED AT A TIME!
WCSB 1 PALLET
Manual
3098 kg, 3098kg
WCSB 2 PALLETS
Manual
4196 kg
WCSB 3 PALLETS
Manual
5294 kg
