Pull-out unit for mesh box with 100% extension capacity, 1000 kg load capacity, W=825 D=1225

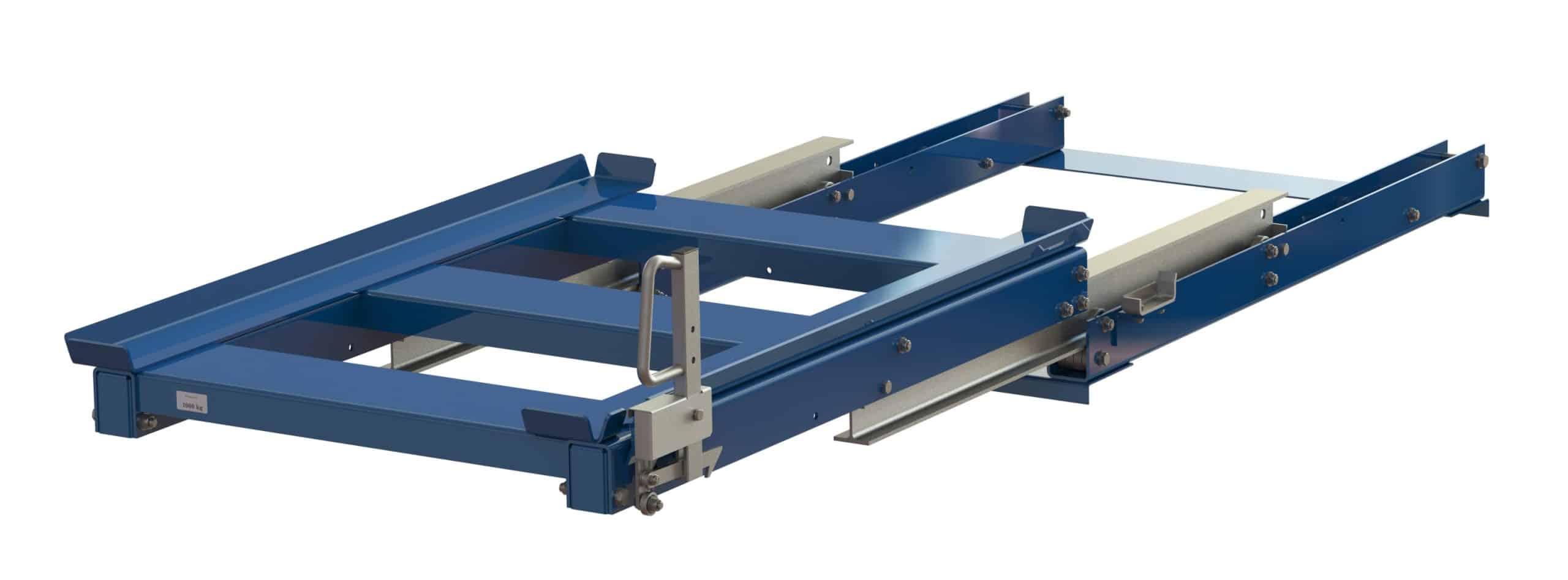

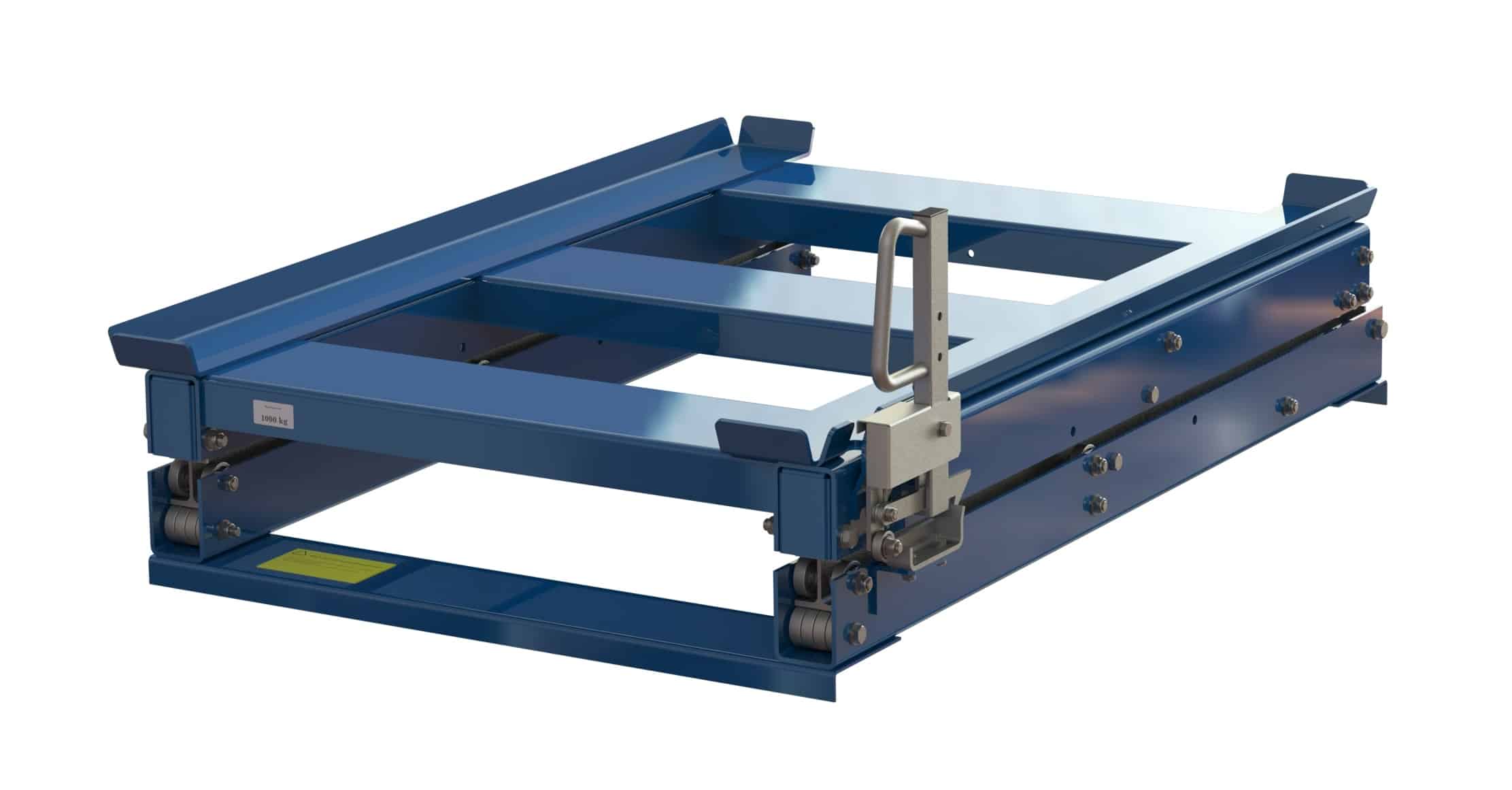

Beam-mounted pull-out unit for storing mesh box (Gitterbox). 100% pull-out extension and 1000 kg load capacity. Loading area is W=825 mm D=1225 mm. Load from rear or front side and pick from front side. Short side handled. The unit pictured is equipped with an Easy Action ™ handle.

- +
Product added to cart
Article Number: 11 1009-1 Categories: ,

Description

Arrow

A pallet pull-out unit is used when you want to load a full pallet of articles and then pick the articles manually. 100% pull-out capacity provides access to the innermost items. An important feature when placing units closely in multiple levels. We recommend Easy Action ™ handles for loads from 1000kg, these are available in 4 standard heights.
Beam-mounted units are mounted on the crossbeams between the pallet racking uprights. The lower frame of the pull-out unit is bolted to the beams and the upper frame slides out carrying the pallet with it.

Unit locks when pushed back into the rack.
Easy to install – simply secure to the crossbeams using 4 bolts.
Fitting double ball bearings at the front gives lower profiles and means that our pull-out units run smoothly, even with high load factors.
Beam-mounted units are compatible with almost any type of pallet racking on the market. They can be fitted to your existing beams.

Extractors are supplied with safety information on a yellow label. The text is in English or another language of your choice. All deliveries also include assembly instructions and user information.

Product Features

Arrow
Picking Method Manual Manual
By hand, Overhead crane
Short or long side handled Manual
Short side handled
Type of load Manual
Gitterbox
Weight capacity Manual
1000 kg
Extension Manual
100%
Handled Manual
Manual pull-out unit
Load metod Manual Manual Manual
Forklift, Overhead crane, Pallet stacker
Load Way Manual
One-way
Loading Manual
Front loaded

Technical Specifications

Arrow
Rack Depth
Manual
970 mm - 1220 mm
Width
Manual
918-mm
Loading Width
Manual
825 mm
Depth
Manual
1305-mm
Frame Colour
Manual
Blue, Grey, Special colour
Height
Manual
250 mm
Loading Depth
Manual
1225 mm
Loading height
Manual
205 mm

Weight and Volume

Arrow
Pallet Size
Manual
130x90x140
Pallet weight
Manual
585-kg
Product Weight
Manual
110 kg
Quantity on pallet
Manual
5 pcs
Number of pallets / Trailer
Manual
25

Weight Capacity Support Beam

Arrow
WCSB 1 pallet
Manual
3098 kg, 3098 kg, 3098kg
WCSB 2 pallets
Manual
4196 kg
WCSB 3 pallets
Manual
5294 kg
