Pull-out unit for FIN pallet with 70% extension capacity, 600 kg load capacity, W=1030 D=1200

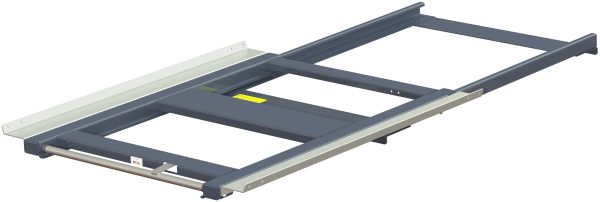

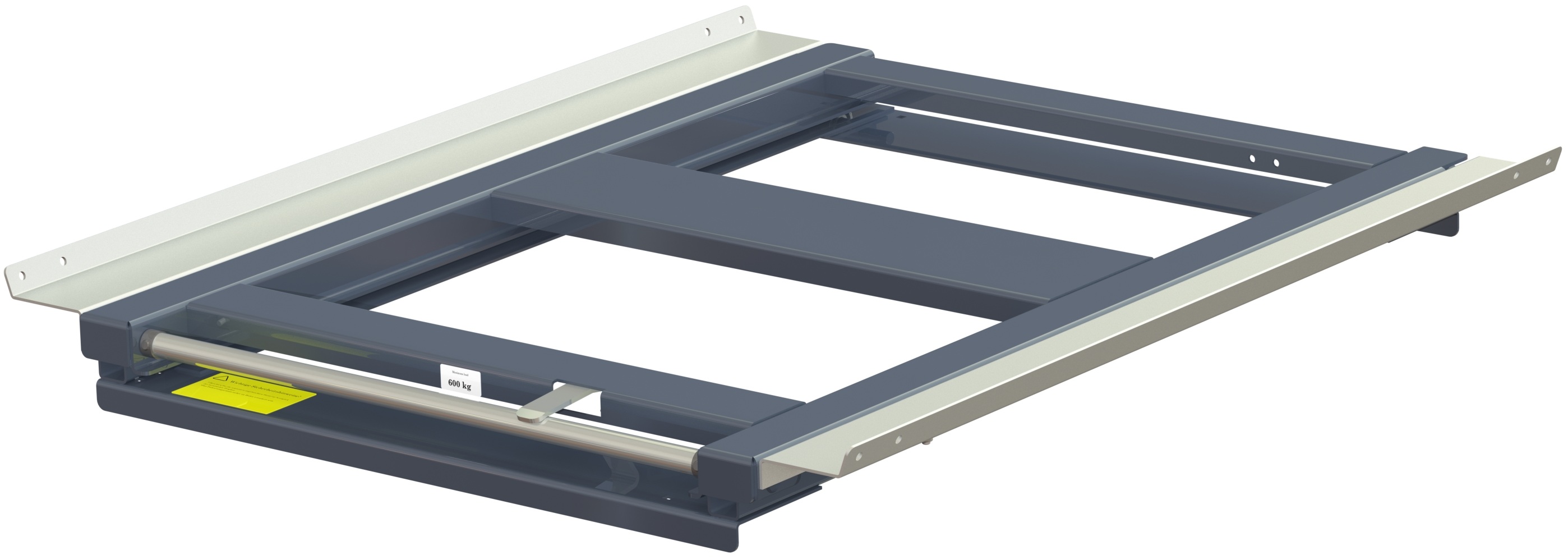

Beam-mounted pull-out unit for storing FIN-pallet. 70% pull-out extension and 600 kg load capacity. Loading area is W=1030 mm D= 1200 mm. Load and pick from front side. Short-side handled. The unit pictured is equipped with optional rear pallet stop

- +
Product added to cart
Article Number: 11 603-0 Categories: ,

Description

Arrow

A pallet pull-out unit is used when you want to load a full pallet of articles and then pick the articles manually.
Beam-mounted units are mounted on the cross-beams between the pallet racking uprights. The lower frame of the pull-out unit is bolted to the beams and the upper frame slides out carrying the pallet with it.

Unit locks when pushed back into the rack.
Easy to install – simply secure to the cross-beams using 4 bolts.
Fitting double ball bearings at the front gives lower profiles and means that our pull-out units run smoothly, even with high load factors.
Beam-mounted units are compatible with almost any type of pallet racking on the market. They can be fitted to your existing beams.

Extractors are supplied with safety information on a yellow label. The text is in English or another language of your choice. All deliveries also include assembly instructions and user information

Product Features

Arrow
Handled Manual
Manual pull-out unit
Load metod Manual Manual Manual
Forklift, Overhead crane, Pallet stacker
Load Way Manual
One-way
Loading Manual
Front loaded
Extension Manual
70%
Weight capacity Manual
600 kg
Type of load Manual
FIN-/ CHEP-pallet
Picking Method Manual Manual
By hand, Overhead crane
Short or long side handled Manual
Short side handled

Technical Specifications

Arrow
Depth
Manual
1210 mm
Frame Colour
Manual
Blue, Grey, Special colour
Height
Manual
96-mm
Loading Depth
Manual
1200 mm
Loading Width
Manual
1026 mm
Loading height
Manual
68 mm
Width
Manual
1055 mm
Rack Depth
Manual
970 mm - 1170 mm

Weight and Volume

Arrow
Pallet Size
Manual
125x110x140
Pallet weight
Manual
555 kg
Number of pallets / Trailer
Manual
22
Product Weight
Manual
44 kg
Quantity on pallet
Manual
12 pcs

Weight Capacity Support Beam

Arrow
WCSB 3 pallets
Manual
2745 kg
WCSB 2 pallets
Manual
2110 kg
WCSB 1 pallet
Manual
1475 kg
