Pull-out unit for EUR-pallet with 70% extension capacity, 800 kg load capacity, W=830 D=1200

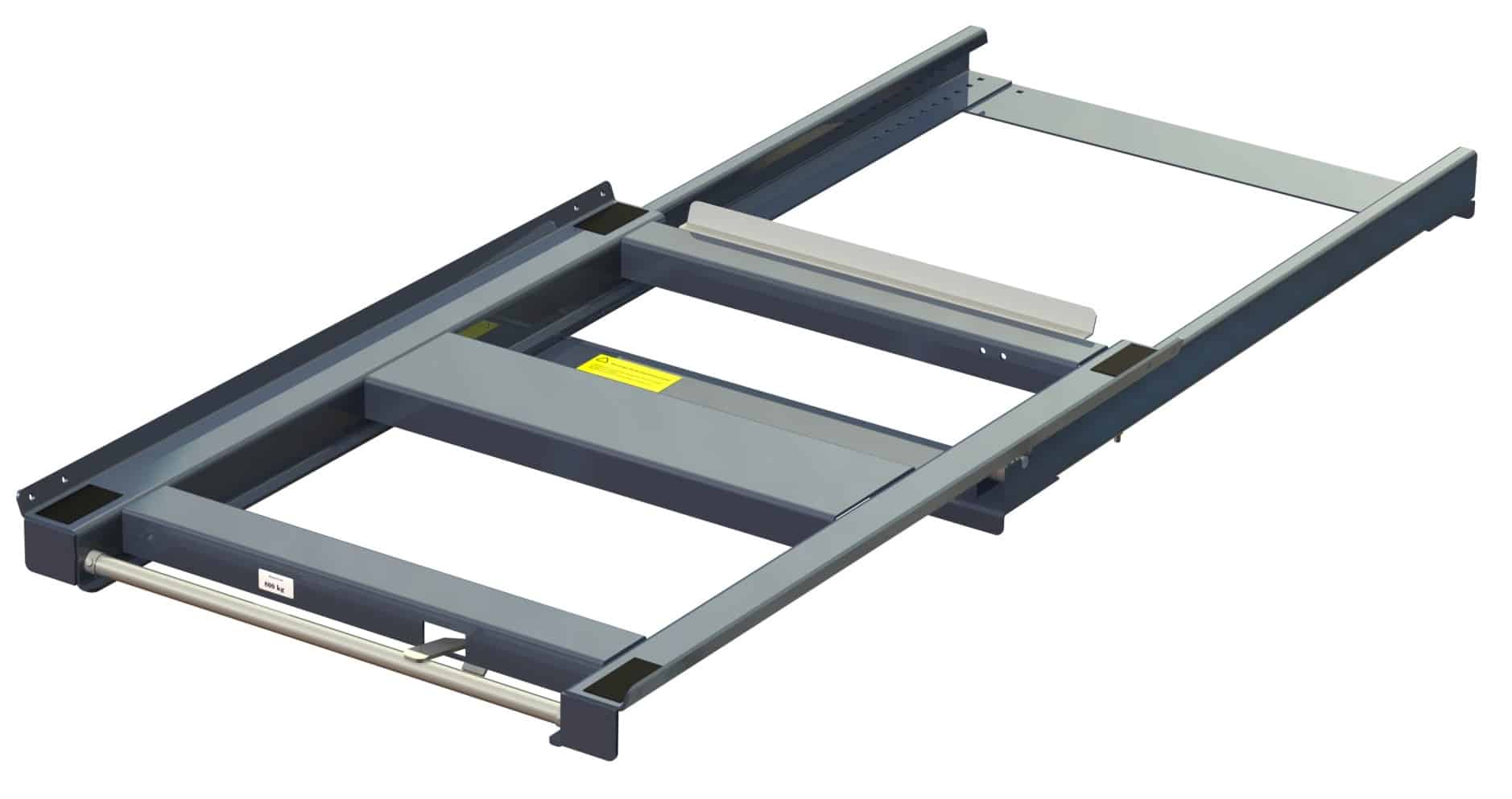

Beam-mounted pull-out unit for storing EUR-pallet. 70% pull-out extension and 800 kg load capacity. Loading area is W=830 mm D= 1200 mm. Load and pick from front side. Short-side handled. The unit pictured is equipped with optional anti-slip tape and a rear pallet stop
Description
A pallet pull-out unit is used when you want to load a full pallet of articles and then pick the articles manually.
Beam-mounted units are mounted on the cross-beams between the pallet racking uprights. The lower frame of the pull-out unit is bolted to the beams and the upper frame slides out carrying the pallet with it.
Unit locks when pushed back into the rack.
Easy to install – simply secure to the cross-beams using 4 bolts.
Fitting double ball bearings at the front gives lower profiles and means that our pull-out units run smoothly, even with high load factors.
Beam-mounted units are compatible with almost any type of pallet racking on the market. They can be fitted to your existing beams.
Extractors are supplied with safety information on a yellow label. The text is in English or another language of your choice. All deliveries also include assembly instructions and user information.
