Pull-out unit for EUR-pallet with 100% extension capacity, 1000 kg load capacity, W=1220 D=800

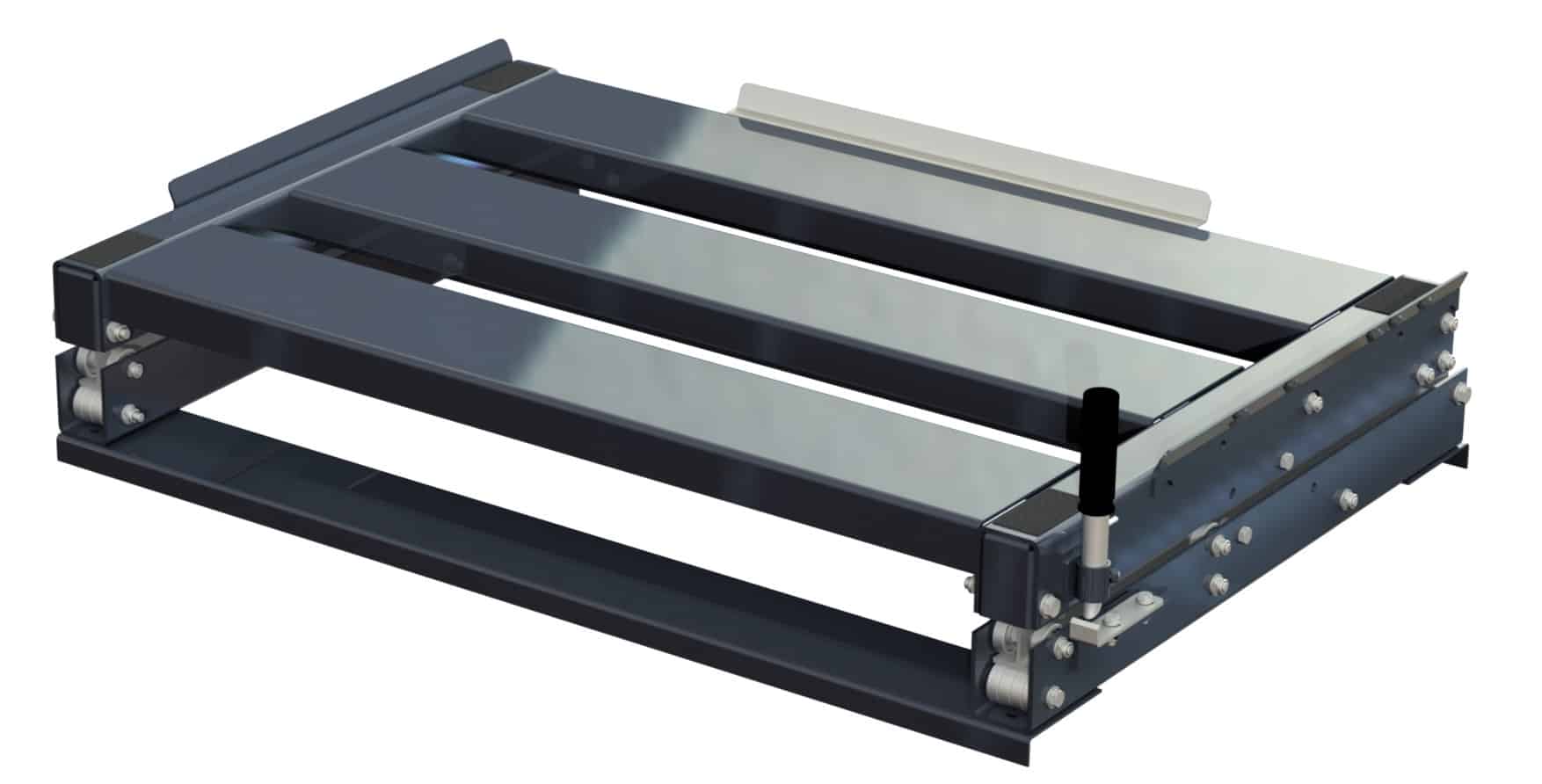

Beam-mounted pull-out unit for storing EUR-pallet. 100% pull-out extension and 1000 kg load capacity. Loading area is W=1220 mm D=800 mm. Load from rear or front side and pick from front side. Long side handled. The unit pictured is equipped with optional anti-slip tape, rear pallet stop and a standard handle.
Description
A pallet pull-out unit is used when you want to load a full pallet of articles and then pick the articles manually. 100% pull-out capacity provides access to the innermost items. An important feature when placing units closely in multiple levels. We recommend Easy Action â„¢ handles for loads from 1000kg, these are available in 4 standard heights.
Beam-mounted units are mounted on the crossbeams between the pallet racking uprights. The lower frame of the pull-out unit is bolted to the beams and the upper frame slides out carrying the pallet with it.
Unit locks when pushed back into the rack.
Easy to install – simply secure to the crossbeams using 4 bolts.
Fitting double ball bearings at the front gives lower profiles and means that our pull-out units run smoothly, even with high load factors.
Beam-mounted units are compatible with almost any type of pallet racking on the market. They can be fitted to your existing beams.
Extractors are supplied with safety information on a yellow label. The text is in English or another language of your choice. All deliveries also include assembly instructions and user information.
Product Features
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/EUR.png)
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/FrontLoadnew.png.webp)
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/LongSideHandling.png.webp)
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/Load-capacity.png.webp)
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/One-Way-100_.png)
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/One-Way.png)
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/ForkLift.png.webp)
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/Overheadcrane.png)
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/Pallet_stacker.png.webp)
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/manual.png)
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/traverse.png.webp)
Technical Specification
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/Width.png)
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/Loading-Width.png)
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/Depth.png.webp)
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/Loading-Depth.png.webp)
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/Loading-height.png)
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/Height.png)
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/Rack-Depth.png.webp)
Weight and Volume
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/productweight.png.webp)
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/qtypallet.png.webp)
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/packageweight.png.webp)
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/Package-size.png)
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/numberpallet.png.webp)
Weight Capacity Support Beam
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/1Pallet.png)
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/2Pallet.png)
![Manual](https://smartstoring.eu/wp-content/plugins/thingsatweb//img/3Pallet.png)
Minimum Quantity Needed :
