Pallet Storage Unit, 3 pull-out units 600kg 100%, RAL 5010

- +
Product added to cart
Article Number: 15 123-0 Categories: ,
Arrow

Description

Arrow

For short-side handled EUR-pallets. Standard colours: blue frame and grey shelves. Including shelf lock which prevents more than one shelf being pulled out at once. Units without shelf lock can´t be rear-loaded.

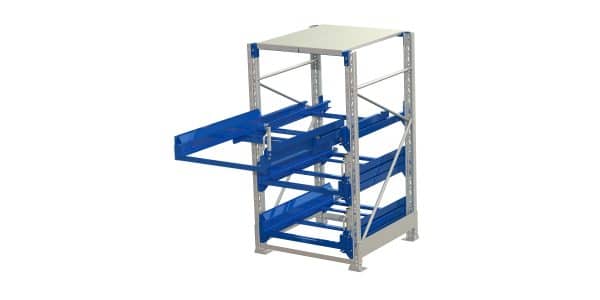

The PSU (Pallet Storage Unit) is a complete rack system for palletized goods. If your production processes involve heavy pallets from which you pick components, this storage system is for you. This type of handling can be challenging to achieve within a confined space but can still be crucial for your daily operations. Here, there is an opportunity for flexible storage where you need it, such as near a machine or production line. 70% pull-out capacity, gives good enough access in many cases and is the most economical version. 600kg load capacity per shelf. 3 extractable shelves with a loading surface of 827 x 1200 mm for pallets. NO INSTALLATION REQUIRED The units are delivered fully assembled and function-tested! Equipped with SHELF LOCK which prevents more than one shelf being pulled out at once.1 static top shelf for storage or dust protection.  ROBUST AND STURDY





Arrow

Product Features

Arrow
TYPE OF LOAD Manual
EUR-pallet
LOADING Manual
Front loaded
SHORT OR LONG SIDE HANDLED Manual
Short side handled
WEIGHT CAPACITY Manual
600 kg
EXTENSION Manual
100%
LOAD WAY Manual
One-way
NUMBER OF SHELVES Manual
3 Shelves
SHELF LOCK Manual
No
LOAD METHOD ManualManualManual
Forklift | Overhead crane | Pallet stacker
PICKING METHOD ManualManual
By hand | Overhead crane
Arrow

Technical Specification

Arrow
WIDTH
Manual
1170 mm
LOADING WIDTH
Manual
827 mm
DEPTH
Manual
1293 mm
LOADING DEPTH
Manual
1226 mm
HEIGHT
Manual
1707 mm
Arrow

Weight and Volume

Arrow
PRODUCT WEIGHT
Manual
375 kg
QUANTITY ON PALLET
Manual
1 pcs
PALLET WEIGHT
Manual
396 kg
PALLET SIZE
Manual
138x117x190
NUMBER OF PALLETS /TRAILER
Manual
21
