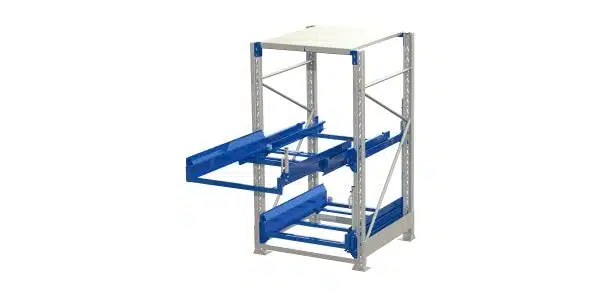

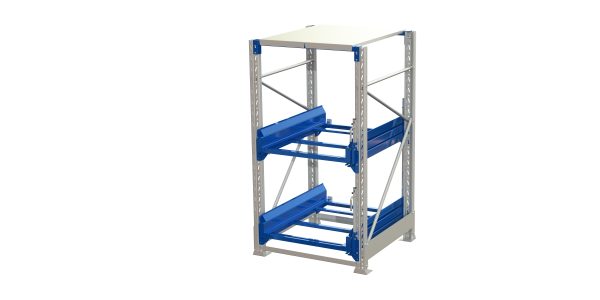

Pallet Storage Unit, 2 pull-out units, 600kg 100%, RAL 5010

- +
Product added to cart
Article Number: 15 122-0 Categories: ,

Description

Arrow

For short-side handled EUR-pallets. Standard colours: blue frame and grey shelves. Including shelf lock which prevents more than one shelf being pulled out at once. Units without shelf lock can´t be rear-loaded.

The PSU (Pallet Storage Unit) is a complete rack system for palletized goods. If your production processes involve heavy pallets from which you pick components, this storage system is for you. This type of handling can be challenging to achieve within a confined space but can still be crucial for your daily operations. Here, there is an opportunity for flexible storage where you need it, such as near a machine or production line. 70% pull-out capacity, gives good enough access in many cases and is the most economical version. 600kg load capacity per shelf. 3 extractable shelves with a loading surface of 827 x 1200 mm for pallets. NO INSTALLATION REQUIRED The units are delivered fully assembled and function-tested! Equipped with SHELF LOCK which prevents more than one shelf being pulled out at once.1 static top shelf for storage or dust protection.  ROBUST AND STURDY





Product Features

Arrow
Weight capacity Manual
600 kg
Type of load Manual
EUR-pallet
Short or long side handled Manual
Short side handled
Picking Method Manual Manual
By hand, Overhead crane
Loading Manual
Front loaded
Load Way Manual
One-way
Load metod Manual Manual Manual
Forklift, Overhead crane, Pallet stacker
Handled Manual
Manual pull-out unit
Extension Manual
100%

Technical Specifications

Arrow
Width
Manual
1170 mm
Shelf lock
Manual
No
Number of shelves
Manual
2 Shelves
Loading Width
Manual
834 mm
Loading Depth
Manual
1225 mm
Height
Manual
2007-mm
Frame Colour
Manual
Blue frame, grey shelves, Special colour
Depth
Manual
1300 mm

Weight and Volume

Arrow
Quantity on pallet
Manual
1 pcs
Product Weight
Manual
254-kg
Pallet weight
Manual
312-kg
Pallet Size
Manual
138x117x216
Number of pallets / Trailer
Manual
21
