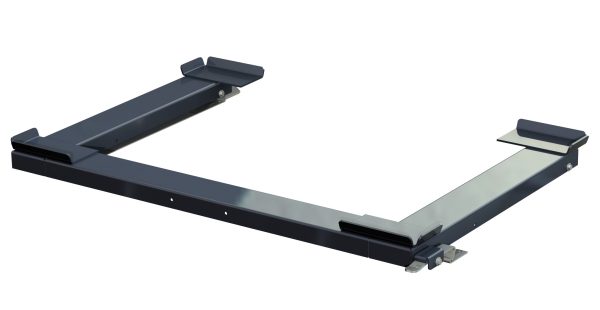

floor mounted pull-out unit ,8, Rear-loaded, long-side handled HMU

-

Floor-mounted (FM) units fit under the rack and are compatible with almost any type of pallet racking, but can also be used as freestanding units. They are fixed to the floor with bolts through the lower frames, which act as rails for the upper frames to slide out on bearings, and are supported by high quality pallet truck wheels at the front.

- +
ART No: 13 812 Category:
Warehousing
Warehousing
Weight
800 kg Load Capacity
Arrow

Description

Arrow

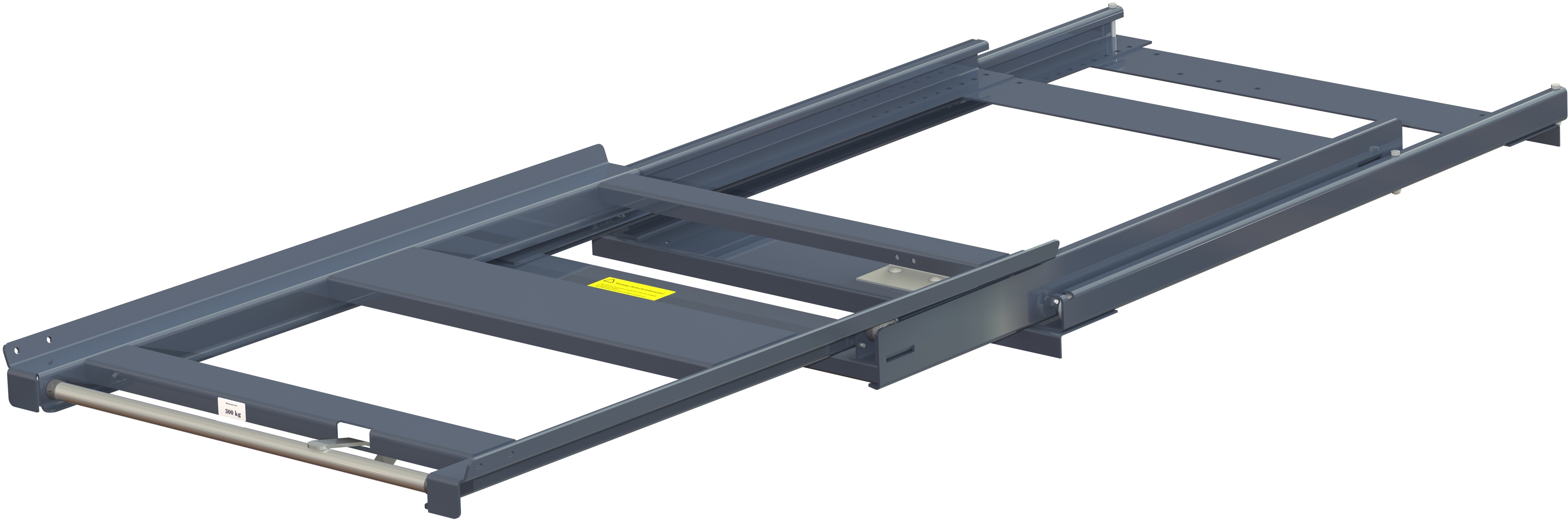

Floor-mounted (FM) units fit under the rack and are compatible with almost any type of pallet racking, but can also be used as freestanding units. They are fixed to the floor with bolts through the lower frames, which act as rails for the upper frames to slide out on bearings, and are supported by high quality pallet truck wheels at the front. Being able to pull the units out of the rack allows for safe and easy access to stored goods! Cost-saving ergonomics are a primary consideration with FM units, as with all Smart Storing designs. Each model uses the right sizes and numbers of quality ball bearings, so they’re strong, reliable and easy to slide in and out. Guide rails ensure the units stay in line when pulled out, and can be pushed back in without effort. A safety latch is automatically engaged when the unit is in the rack. This prevents the unit from being unintentionally pushed out from the other side of the rack. (This feature is especially important when using rear loaded units or units placed in a double rack, where they can be hit from behind when loading the opposite unit).

Arrow

Additional information

Arrow
Load option

Rear-loaded

Height

98 mm

Depth

900 mm

Loading height

73 mm

Width

1293 mm

Loading Depth

825 mm

Loading Width

1225 mm

Frame Color

Blue, Custom colour, Gray

Load

800 kg

Electric Powered

Manual Pull-out unit

Load Way

One way

Orientation

Long-side handled

Type of load

HMU 1200 x 800

Load metod

Fork lift, Hand palletet Truck, Stacker

Picking Method

Manual, Traverse

Extension

85%

Arrow

Variations

Arrow
Article number
:
Farg
:
Blue
Extension
:
85%
Load capacity
:
800 kg
Price
:
Article number
:
Farg
:
Blue
Extension
:
85%
Load capacity
:
800 kg
Price
:
Article number
:
Farg
:
Blue
Extension
:
85%
Load capacity
:
800 kg
Price
:
Article number
:
Farg
:
Blue
Extension
:
85%
Load capacity
:
800 kg
Price
:
Article number
:
Farg
:
Blue
Extension
:
85%
Load capacity
:
800 kg
Price
:
Arrow

Accessories

Arrow
Product
Article Number
Specification
13-04
Foot-operated lock release
+
13401549
Driving protection Smart 400 P1-P3 400x150x49mm
+
13401349
Driving protection Smart 400 P1-P3 400x130x49mm
+
13401249
Driving protection Smart 400 P1-P3 400x120x49mm
+
13 180-80
Pallet collar m hijacked fittings, inserts, extra wheel bones
+
13-MP
Installation template for floor -mounted pull-out unit
+
13 180-0
Steel shelf panel to short -side floor
+
Placeholder
13 180-6
Steel shelf panel long -sided floor transverse
+
13 001-1F
Extra wheel bone gm LSH FIN-pallete compet with wheels, bolt and nuts
+
13 001-1
Extra wheel bone GM LSH EUR-pallet Complete with wheels and bolt
+
13 001-0
Extra wheel bone gm KSH EUR-pallet/FIN-pallete complete with wheels and bolt
+
44664
Foot lock to floor -mounted pull-out unit
+
13-39
Removable handle 900mm incl foot lock 13-4
+
13-37
Removable handle 700mm incl foot lock 13-4
+
13-29
Easy Action handle 900mm floor -mounted pull -out unit
+
13-35
Removable handle 500mm incl foot lock 13-4
+
13-27
Easy Action handle 700mm floor -mounted pull-out unit
+
13-25
Easy Action handle 500mm floor -mounted pull -out unit
+
13-19
Standard Handle 900mm Floor Mounted Power Unit
+
13-17
Standard handle 700mm floor -mounted pull-out unit
+
13-15
Standard handle 500mm floor -mounted pull-out unit
+
44894
Easy Action handle 900mm Pull-out unit
+
44892
Easy Action handle 700mm Pull-out unit
+
44890
Easy Action handle 500mm Pull-out unit
+
Placeholder
44888
Easy Action handle 330mm Pull-out unit
+
44884
Standard handle 900mm Pull-out unit right Side
+
44882
Standard handle 700mm Pull-out unit right Side
+
44880
Standard handle 500mm Pull-out unit right Side
+
Placeholder
44879
Standard handle 400mm right side
+
Placeholder
44878
Default handle 330mm right side
+
Placeholder
44877
Lock handle with locking H-200 to 1000 kg / 100% & 1500kg / 70%
+
11 002-0
Black slip protection tape 4/fp 100 x 50mm
+
