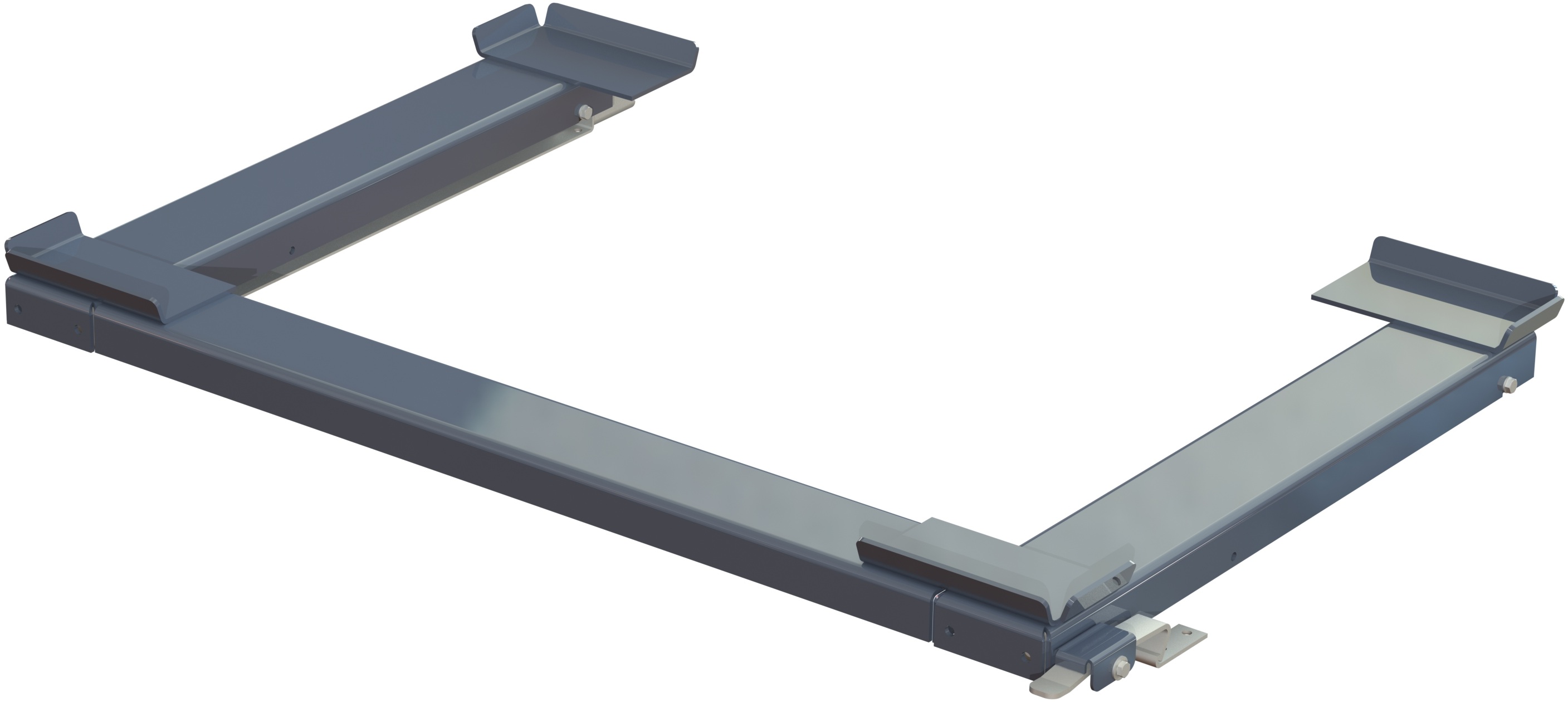

Floor-mounted pull-out unit, 1200 kg, Long-side handled, Rear-loaded, for wire mesh containers

- +
Product added to cart
Article Number: 13 1212 Categories: ,

Description

Arrow

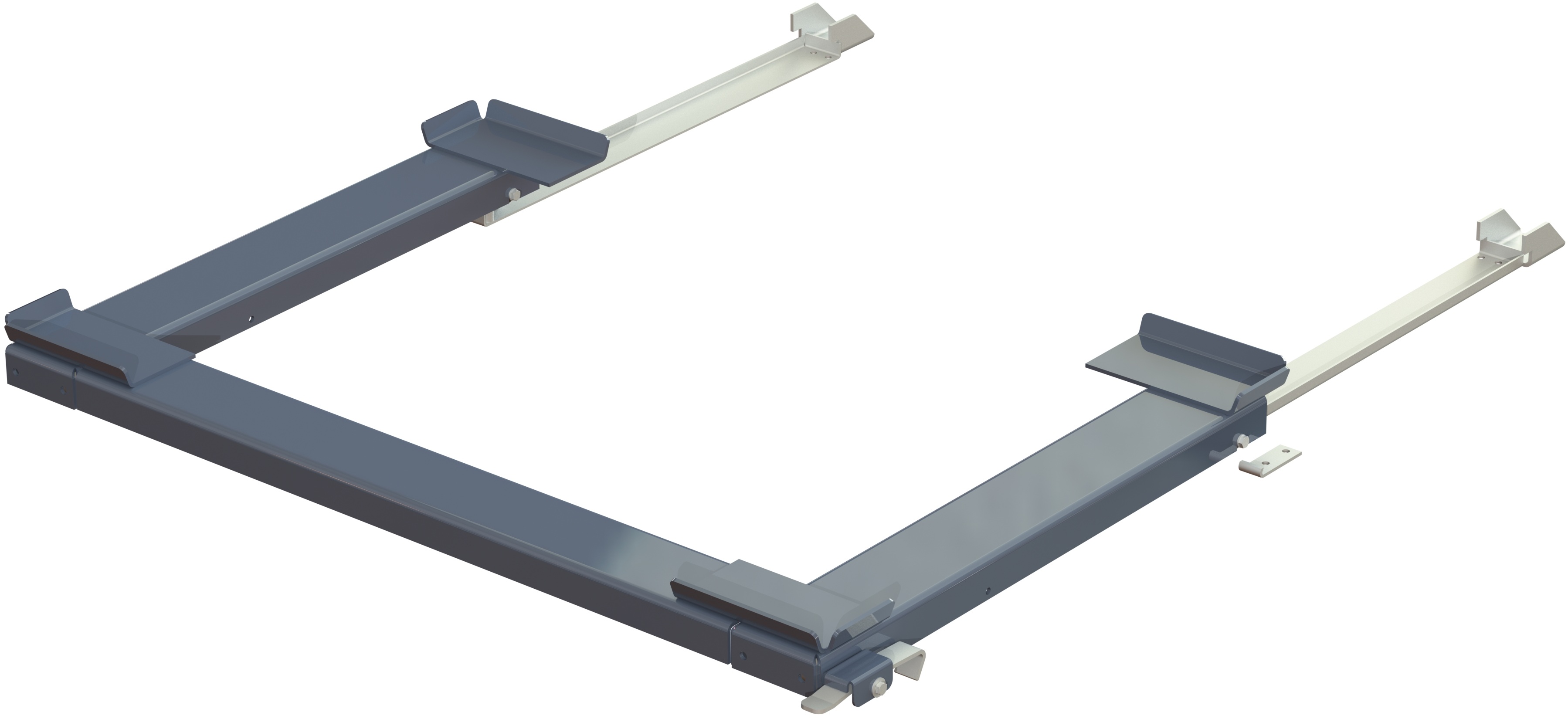

Floor-mounted rear-loaded pull-out units for wire mesh containers with a load capacity of up to 1200 kg are long-side handled and fit under pallet racks. They are compatible with almost all types of racking systems, but can also be used as freestanding units. The unit is delivered with 13-4 foot lock included. They are fixed to the floor with bolts through floor rails, which act as guide rails for the upper frame that runs on heavy-duty ball bearings at the rear and robust pallet truck wheels at the front. Being able to pull out the units from the rack allows for safe and easy access to stored goods. A rear-loaded unit is used when pallets are loaded from one side of the racking system, for example from a forklift aisle, and goods are picked manually from the opposite side on a traffic-free working area. This solution creates an efficient workflow, improved ergonomics, and increased safety in warehouse operations. Ergonomics and efficiency are always a key part of Smart Storing design, and each model uses the right number and size of high-quality ball bearings to ensure strength, reliability, and smooth operation. An automatic safety latch locks the unit when in its closed position, keeping it stable during loading and preventing it from being unintentionally pushed out. Corner plates keep wire mesh containers securely in place, making the solution both safe and flexible.

Product Features

Arrow
Load Way Manual
One-way
Loading Manual
Rear loaded
Load metod Manual Manual Manual Manual
Forklift, Hand pallet truck, Overhead crane, Pallet stacker
Handled Manual
Manual pull-out unit
Extension Manual
80 %
Weight capacity Manual
1200 kg
Type of load Manual
Gitterbox
Short or long side handled Manual
Long side handled
Picking Method Manual Manual
By hand, Overhead crane

Technical Specifications

Arrow
Height
Manual
104 mm
Frame Colour
Manual
Blue, Grey, Special colour
Loading height
Manual
75 mm
Loading Depth
Manual
825 mm
Depth
Manual
911 mm
Loading Width
Manual
1225 mm
Width
Manual
1293 mm

Weight and Volume

Arrow
Quantity on pallet
Manual
12 pcs
Number of pallets / Trailer
Manual
25
Pallet Size
Manual
120 x 90 x 135 cm
Pallet weight
Manual
455-kg
Product Weight
Manual
32 kg
