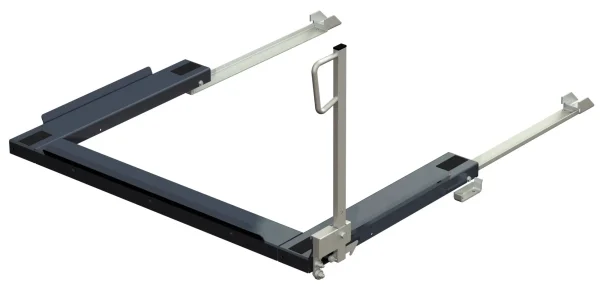

Floor-mounted pull-out unit, 1200 kg, 85% extension, rear-loaded, long-side handled, for EUR pallet

The Smart Storing floor-mounted pull-out unit is a heavy-duty extendable pallet platform that mounts directly to the floor, built for warehouse managers and production teams who need full pallet loads stored low and pulled fully out for manual picking. This long-side handled, rear-loaded model carries up to 1200 kg and extends 85% along the floor, giving access to articles stored right at the back even when the next rack level sits close above.

The unit is built from powder-coated steel for durability in demanding industrial conditions and is sized for a EUR pallet. The unit footprint measures 1261 x 884 mm. It is delivered ready to install and fixes directly to the floor for a stable, freestanding pallet position without a surrounding rack.

With 85% extension and a 1200 kg load rating, the platform rolls out smoothly under full load on ball-bearing runners. Goods are loaded from the rear, keeping the picking front clear for the operator. The long-side handle positions the operator along the length of the unit for pulling. Optional anti-slip tape and a range of handle heights let the unit be matched to the height of the next storage level.

Floor-mounted pull-out units suit automotive manufacturing, warehouse and distribution, and workshop and maintenance environments where full pallets are stored at floor level and ergonomic, full-depth access is essential.
