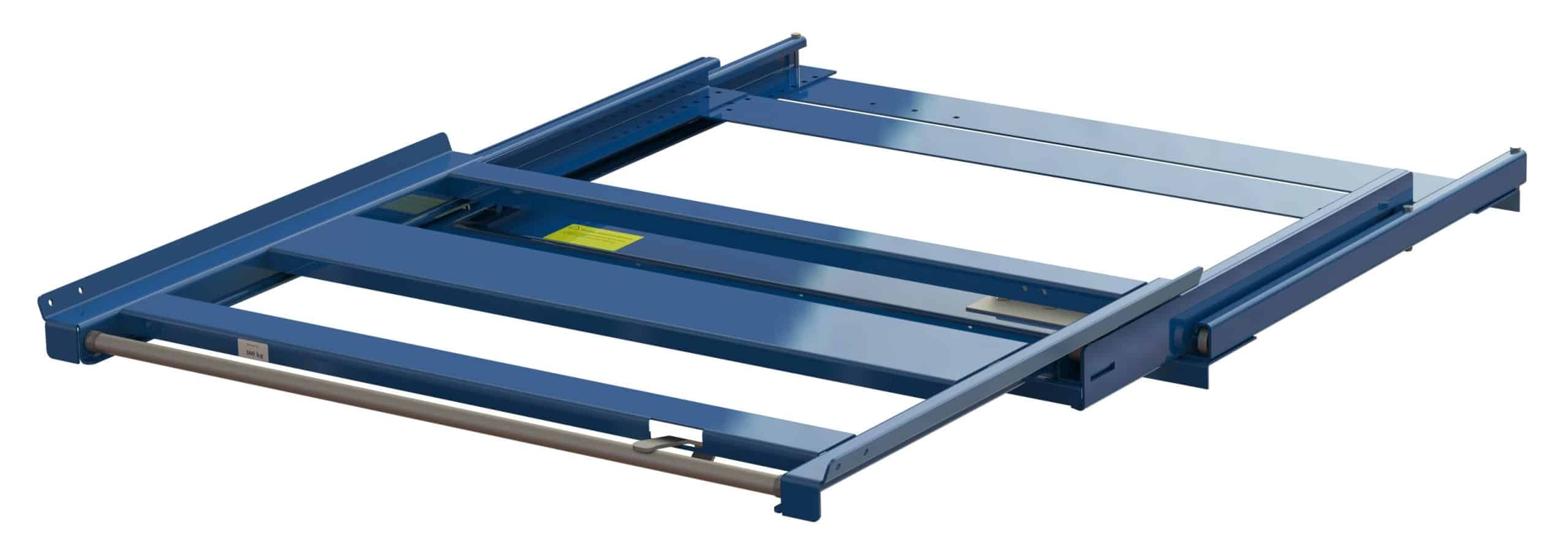

Floor-mounted pull-out unit, 1000 kg, Short-side handled, Front-loaded, for wire mesh containers

- +
Product added to cart
Article Number: 13 1009 Categories: ,

Description

Arrow

Floor-mounted pull-out units for wire mesh containers with a load capacity of up to 1000 kg fit under pallet racks and are compatible with almost all types of racking systems, but can also be used as freestanding units. The unit is delivered with 13-4 foot lock included. They are fixed to the floor with bolts through floor rails, which act as guide rails for the upper frame that runs on heavy-duty ball bearings at the rear and robust pallet truck wheels at the front. Being able to pull out the units from the rack allows for safe and easy access to stored goods. Ergonomics and cost-saving efficiency are always a key part of Smart Storing design, and each model uses the right number and size of high-quality ball bearings to ensure strength, reliability, and smooth operation. Guide rails keep the unit aligned during movement, and it can be pushed back into place effortlessly. An automatic safety latch locks the unit when in its closed position, keeping it stable during loading with, for example, a forklift. It also prevents the unit from being unintentionally pushed out from the opposite side of the rack – a particularly important feature for rear-loaded units or double rack setups where another unit may be loaded from behind. Corner plates keep wire mesh containers or HMU containers with steel feet securely in place, making the solution both safe and flexible.

Product Features

Arrow
Picking Method Manual Manual
By hand, Overhead crane
Short or long side handled Manual
Short side handled
Type of load Manual
Gitterbox
Weight capacity Manual
1000 kg
Extension Manual
85%
Handled Manual
Manual pull-out unit
Load metod Manual Manual Manual Manual
Forklift, Hand pallet truck, Overhead crane, Pallet stacker
Load Way Manual
One-way
Loading Manual
Front loaded

Technical Specifications

Arrow
Loading Width
Manual
825 mm
Width
Manual
885 mm
Loading Depth
Manual
1225 mm
Loading height
Manual
71-mm
Depth
Manual
1312-mm
Frame Colour
Manual
Blue, Grey, Special colour
Height
Manual
102-mm

Weight and Volume

Arrow
Number of pallets / Trailer
Manual
25
Pallet Size
Manual
135x90x125
Pallet weight
Manual
366 kg
Product Weight
Manual
28 kg
Quantity on pallet
Manual
12 pcs
