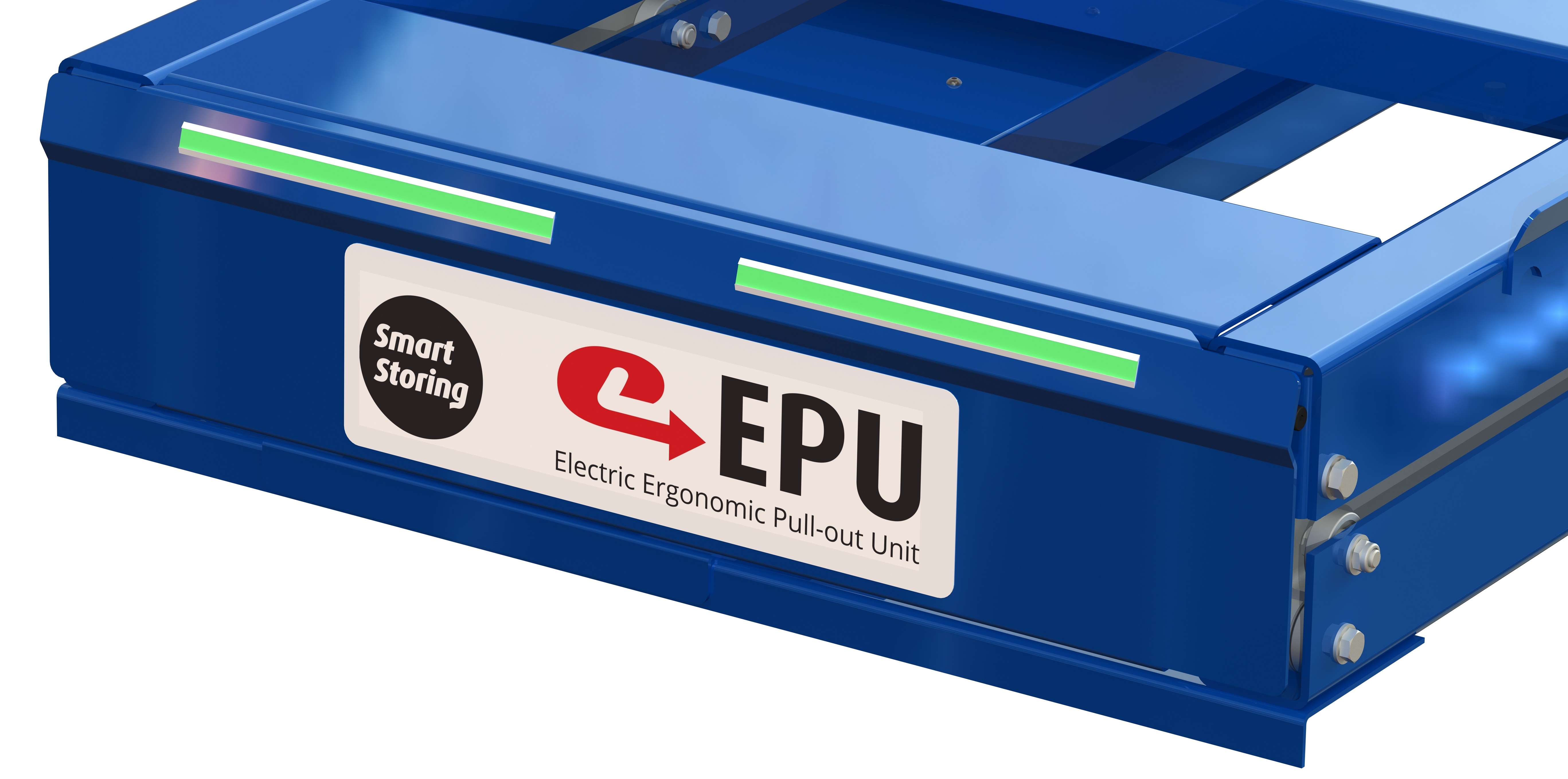

e-EPU, Ergonomic Electric Pull-out Unit 1500kg, 70% extension,Rear-loaded

– Easy installation
– Servo motor with encoder
-Load capacity up to 1000 kg
-Soft start and stop
-Full stroke in 6 seconds
-Optional radio control

- +
Product added to cart
Article Number: 11E 1502-0 Categories: ,

Description

Arrow

– Easy installation
– Servo motor with encoder
-Load capacity up to 1500 kg
-Soft start and stop
-Full stroke in 6 seconds
-Optional radio control

Smart Storing´s new e-EPU (Ergonomic Electric Pull-out Unit) further improves ergonomics by eliminating all manual handling forces. The e-EPU is suited for applications where heavy
goods are picked from pallets, often with help of an overhead crane. It´s also possible to use the e-EPU in a robot cell and integrate it into a fully automatic solution. Load capacity up to 1500 kg. Easy installation; the e-EPU is attached to a pallet rack with 4 screws and the power cable is plugged into a normal 230 VAC socket. It´s controlled by push buttons in a separate control
panel. On request we offer radio control.

Product Features

Arrow
Picking Method Manual Manual
By hand, Overhead crane
Type of load Manual
EUR-pallet
Weight capacity Manual
1500 kg
Short or long side handled Manual
Short side handled
Extension Manual
70%
Handled Manual
Manual pull-out unit
Load metod Manual Manual Manual
Forklift, Overhead crane, Pallet stacker
Load Way Manual
One-way
Loading Manual
Rear loaded

Technical Specifications

Arrow
Width
Manual
847 mm
Rack Depth
Manual
970 mm - 1170 mm
Loading height
Manual
202 mm
Loading Width
Manual
820 mm
Depth
Manual
1260 mm
Frame Colour
Manual
Blue, Grey, Special colour
Height
Manual
243 mm
Loading Depth
Manual
1200 mm

Weight and Volume

Arrow
Product Weight
Manual
96 kg
Pallet weight
Manual
505 kg
Pallet Size
Manual
130x95x125
Number of pallets / Trailer
Manual
25
Quantity on pallet
Manual
5 pcs
