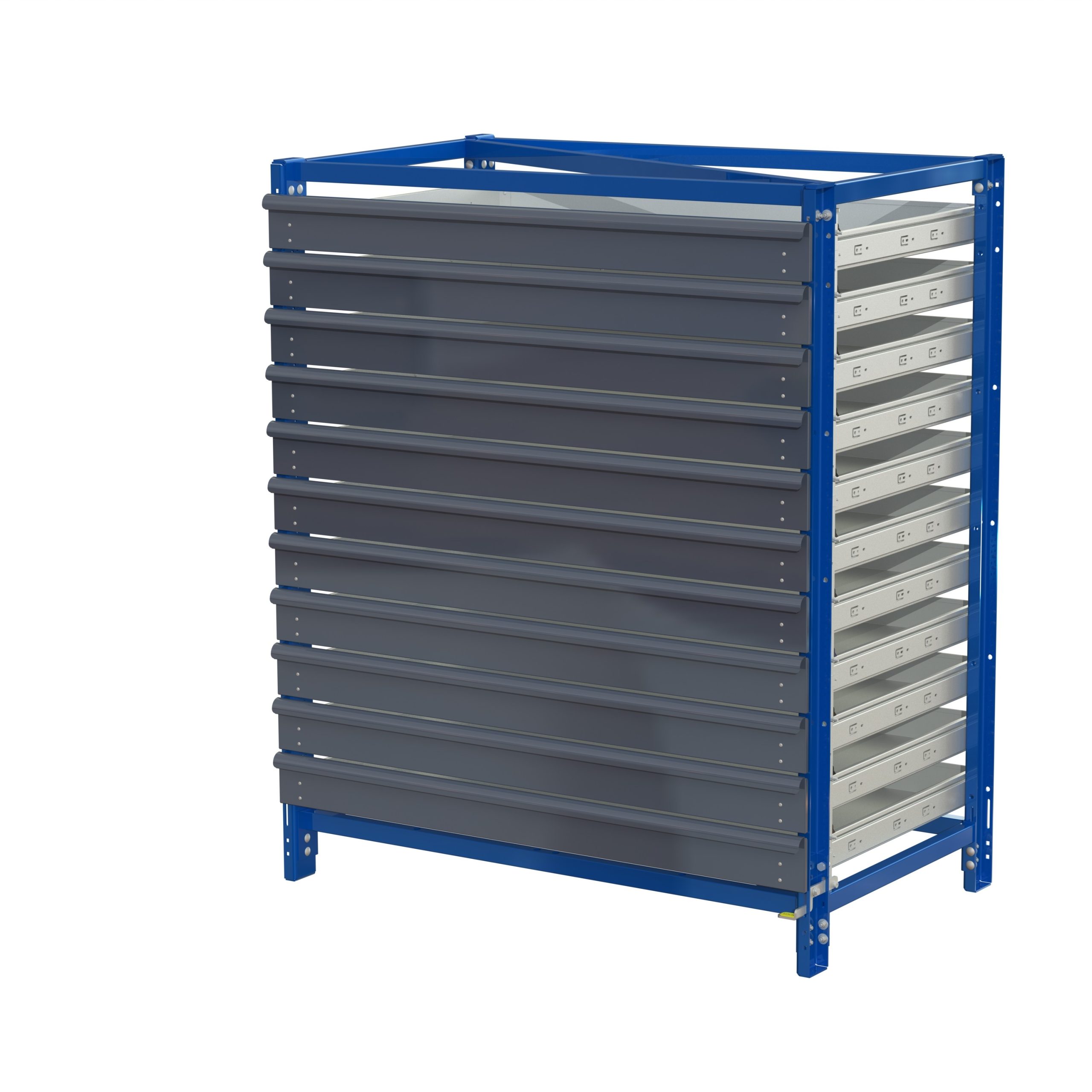

CSU Light, long-side handled, 100% extension, 75 kg, 11 shelves
CSU Light with eleven pull-out shelves, each rated at 75 kg with 100% extension, in long-side handled configuration (1300 x 838 x 1560 mm). Each shelf provides 110 mm of open space between levels. Integrated transport and anti-tilt lock. Delivered fully assembled.
Description
The Smart Storing CSU Light in long-side handled configuration places the wider 1200 mm shelf edge at the front, providing broad access to the full 1200 x 800 mm shelf area. Each shelf supports 75 kg with 100% pull-out extension, and the unit measures 1300 x 838 x 1560 mm.

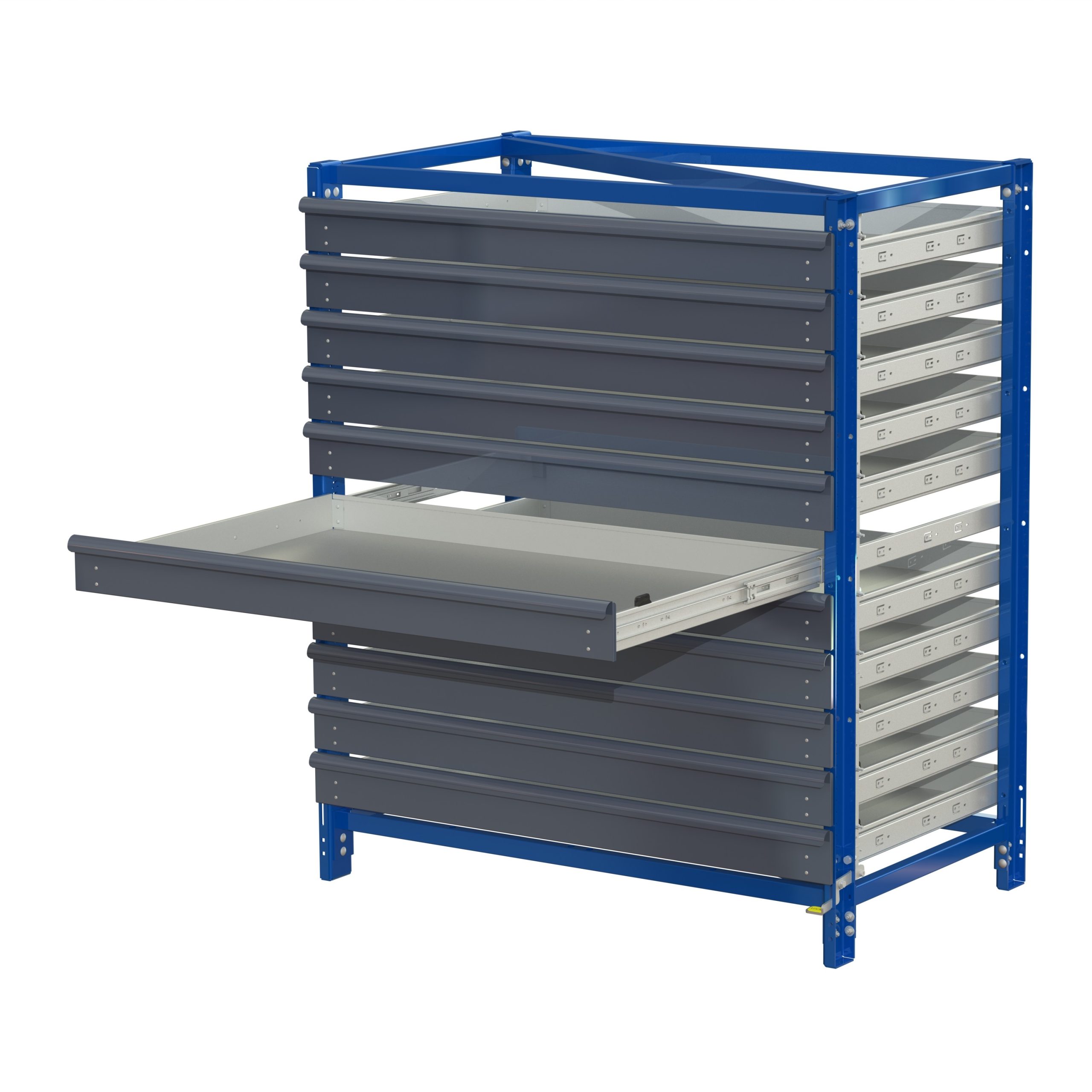

The steel frame is powder-coated in blue (RAL 5010) with shelf fronts in grey (RAL 7024). An integrated transport and anti-tilt safety lock prevents unintentional shelf slide-out during movement and ensures only one shelf extends at a time. The 100% extension provides full overhead access for loading and picking.
The spacious shelf dimensions accommodate component bins and small parts across the wider face, suited for electronics production, automotive assembly kitting, pharmaceutical storage, and workshop environments. Optional wheel kits (22 1200-N or 22 1200-P) add mobility. Steel cladding is available to create an enclosed cabinet. Delivered fully assembled and function-tested.
Product Features
Technical Specifications
Weight and Volume
Minimum Quantity Needed :
